斗山零件查询MAIN PIPING(3) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
494 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

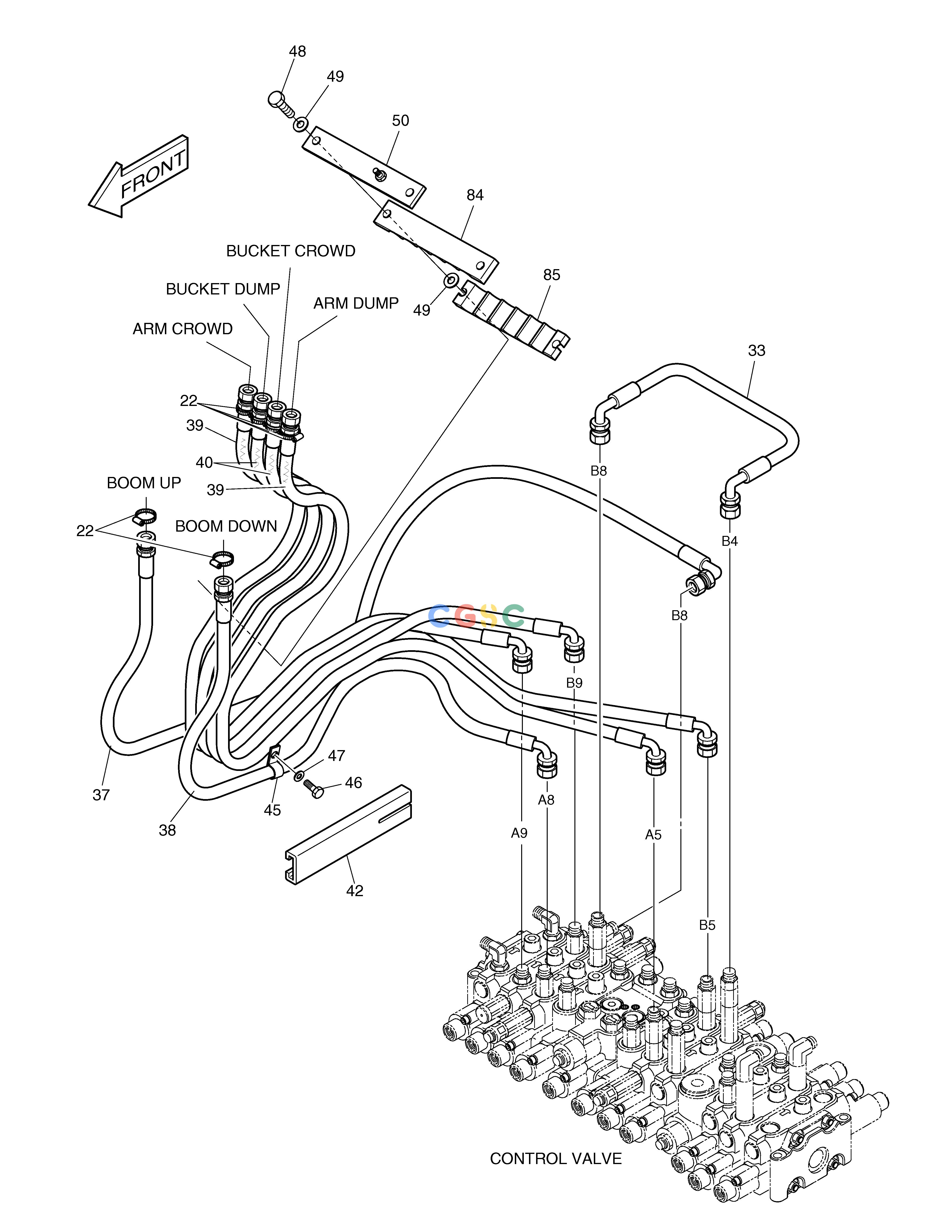

400-01245
|
[-] |
MAIN PIPING
|
|
| 22. |
S8470024
|
[6] |
CLAMP;HOSE(AWAB)
|
|
| 33. |
DS2059427
|
[1] |
HOSE
|
|
| 37. |
DS2055795
|
[1] |
HOSE
|
|
| 38. |
DS2055794
|
[1] |
HOSE(B6)
|
|
| 39. |
DS2055610
|
[2] |
HOSE
|
|
| 40. |
DS2055557
|
[2] |
HOSE
|
|
| 42. |
160-00029A
|
[1] |
TRIM;RUBBER
|
|
| 45. |
124-00208D7
|
[2] |
CLIP
|
|
| 46. |
S0508853
|
[2] |
. BOLT
|
|
| 47. |
S5102503
|
[2] |
. WASHER
|
|
| 48. |
S0560853
|
[2] |
BOLT M12X1.75X55
|
|
| 49. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 50. |
159-00062B
|
[1] |
PLATE; LOCK
|
|
| 84. |
124-00280
|
[1] |
CLAMP;HOSE
|
|
| 85. |
124-00281
|
[1] |
CLAMP;HOSE
|
|
