斗山零件查询MAIN PIPING(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

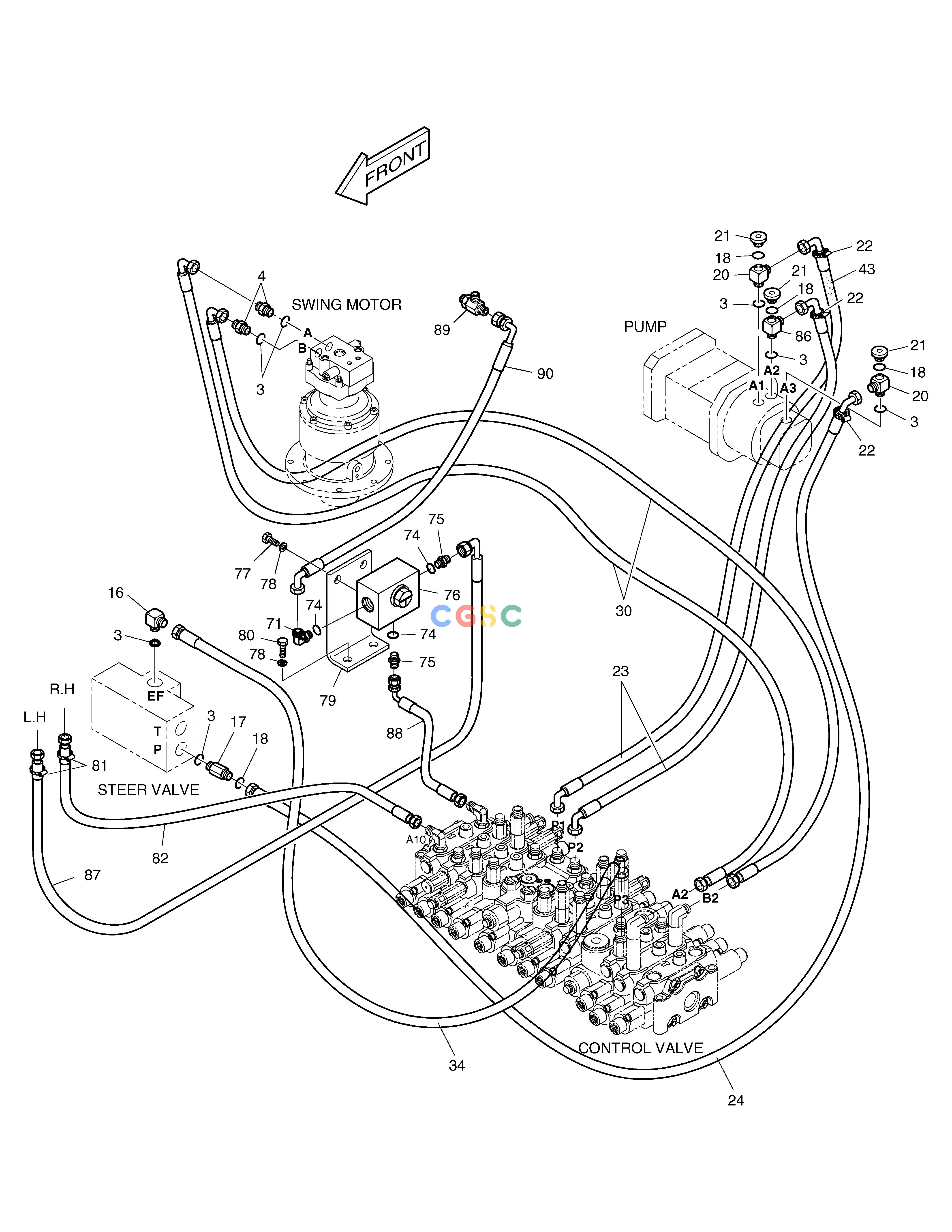

400-01245
|
[-] |
MAIN PIPING
|
|
| 16. |
2181-1702D34
|
[1] |
ELBOW
|
|
| 17. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 18. |
S8030081
|
[4] |
O-RING
|
|
| 20. |
181-00342
|
[2] |
ELBOW
|
|
| 21. |
2181-2047
|
[3] |
PLUG
|
|
| 22. |
S8470024
|
[3] |
CLAMP;HOSE(AWAB)
|
|
| 23. |
DS2021032
|
[2] |
HOSE
|
|
| 24. |
DS2012178
|
[1] |
HOSE
|
|
| 3. |
S8000181
|
[7] |
O-RING
|
|
| 30. |
2184-1036D157
|
[2] |
HOSE PF1/2-1820L
|
|
| 34. |
2184-1036D8
|
[1] |
HOSE
|
|
| 4. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 43. |
158-00014
|
[1] |
PROTECTOR;HOSE
|
|
| 71. |
2181-1702D14
|
[1] |
ELBOW
|
|
| 74. |
S8000181
|
[3] |
O-RING
|
|
| 75. |
2181-1126D107
|
[2] |
ADAPTER
|
|
| 76. |
420-00291
|
[1] |
VALVE;SWITCH
|
|
| 77. |
S0558153
|
[2] |
BOLT
|
|
| 78. |
S5102603
|
[4] |
. WASHER
|
|
| 79. |
195Y02411
|
[1] |
BRACKET
|
|
| 80. |
S0511753
|
[2] |
BOLT M10X1.5X18
|
|
| 81. |
S8450035
|
[2] |
CLAMP;HOSE
|
|
| 82. |
DS2053777
|
[1] |
HOSE
|
|
| 86. |
181-00342
|
[1] |
ELBOW
|
|
| 87. |
DS2055796
|
[1] |
HOSE
|
|
| 88. |
DS2054272
|
[1] |
HOSE
|
|
| 89. |
DS2411007
|
[1] |
TEE
|
|
| 90. |
DS2059445
|
[1] |
HOSE
|
|
