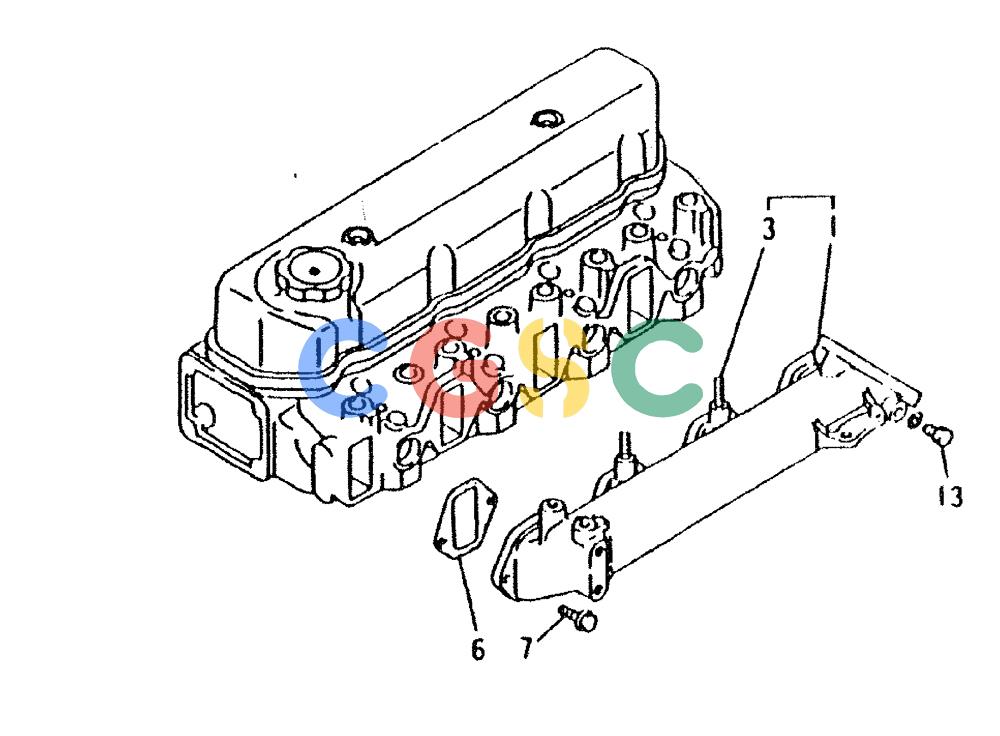

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-015) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
165 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME013042 | [1] | INLET MANIFOLD | KOBINLET MANIFOLD ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, INLET |
| 3. | VAMF402548 | [2] | STUD | KOBSTUD 6 X 30 |
| 6. | VAME013031 | [4] | GASKET | KOBGASKET, INLET MANIF Superseded by part number: VAME212086 |
| 7. | VAMF140225 | [8] | BOLT | KOBBOLT, FLANGE 8 X 20 |
| 13. | VAME031088 | [1] | PLUG | KOBSCREW, SET |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
