沃尔沃零件查询4300 Flow governor 997594300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次

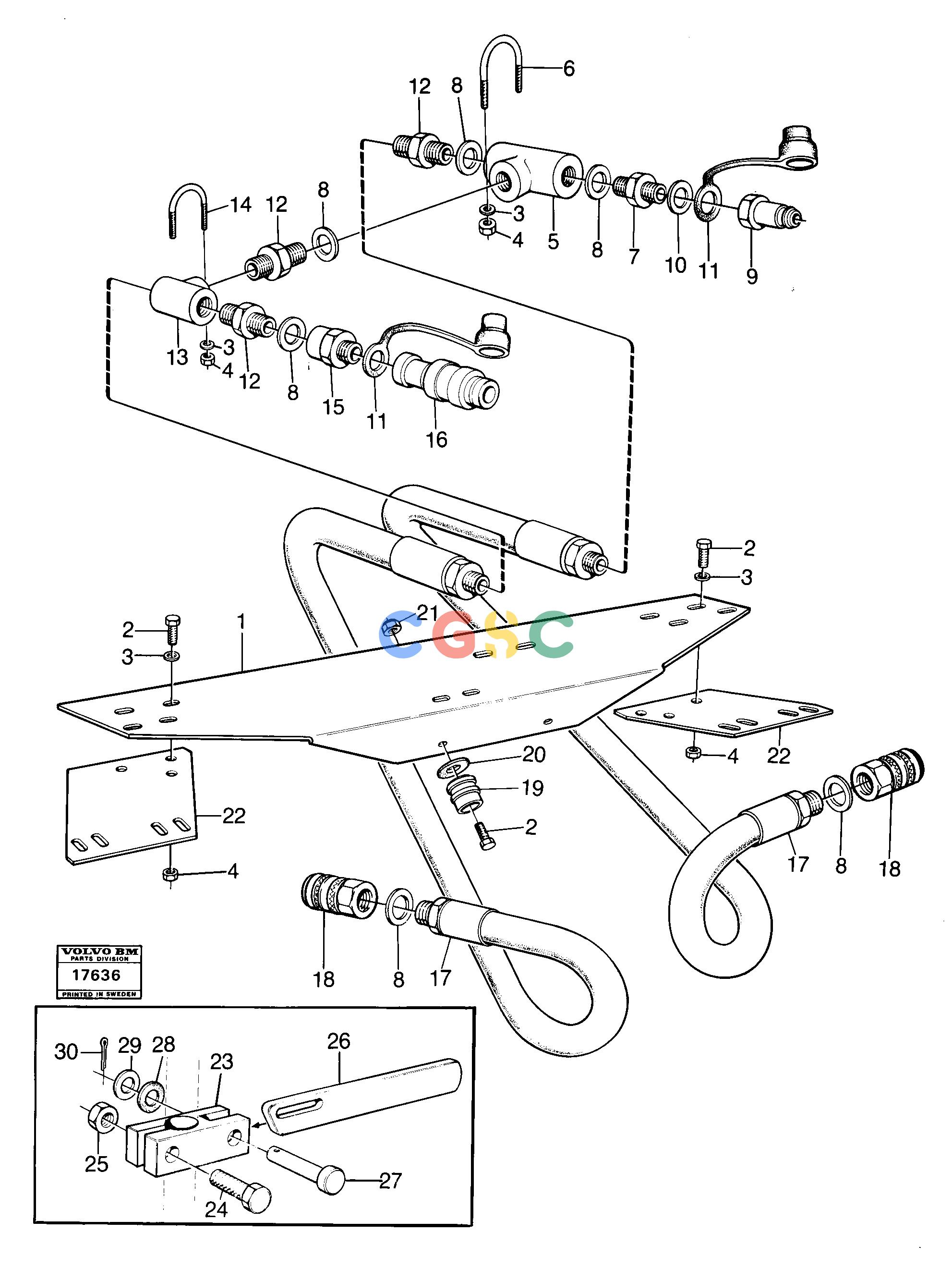

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4881150
|
[0001] |
Volume control valve
|
|
| 6. |
VOE4760181
|
[0001] |
Clamp
|
|
| 7. |
VOE929230
|
[0001] |
Nipple
|
|
| 8. |
VOE14013070
|
[0006] |
Sealing washer
|
|
| 9. |
VOE4880001
|
[0001] |
Snap-on coupling
|
|
| 1. |
|
[0001] |
Anchorage
|
|
| 10. |
VOE14013069
|
[0001] |
Sealing washer
|
|
| 11. |
VOE4880002
|
[0002] |
Dust cover
|
|
| 12. |
VOE13963827
|
[0003] |
Nipple
|
|
| 13. |
VOE964059
|
[0001] |
T-nipple
|
|
| 14. |
VOE4739982
|
[0001] |
Clamp
|
|
| 15. |
VOE929264
|
[0001] |
Nipple
|
|
| 16. |
VOE4880000
|
[0001] |
Snap-on coupling
|
|
| 17. |
VOE928713
|
[0002] |
Hose assembly
|
|
| 18. |
VOE4786201
|
[0002] |
Snap-on coupling
|
|
| 19. |
VOE4885042
|
[0002] |
Plug
|
|
| 2. |
VOE955297
|
[0008] |
Hexagon screw
|
|
| 20. |
VOE4885043
|
[0002] |
Washer
|
|
| 21. |
VOE963106
|
[0002] |
Lock nut
|
|
| 22. |
|
[0002] |
Anchorage
|
|
| 23. |
|
[0001] |
Anchorage
|
|
| 24. |
VOE940142
|
[0001] |
Hexagon screw
|
|
| 25. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 26. |
|
[0001] |
Lock arm
|
|
| 27. |
VOE13964845
|
[0001] |
Clevis pin
|
|
| 28. |
VOE13947757
|
[0002] |
Washer
|
|
| 29. |
VOE13955894
|
[0001] |
Washer
|
|
| 3. |
VOE13960141
|
[0010] |
Washer
|
|
| 30. |
VOE907822
|
[0001] |
Split pin
|
|
| 4. |
VOE955782
|
[0010] |
Hexagon nut
|
|
