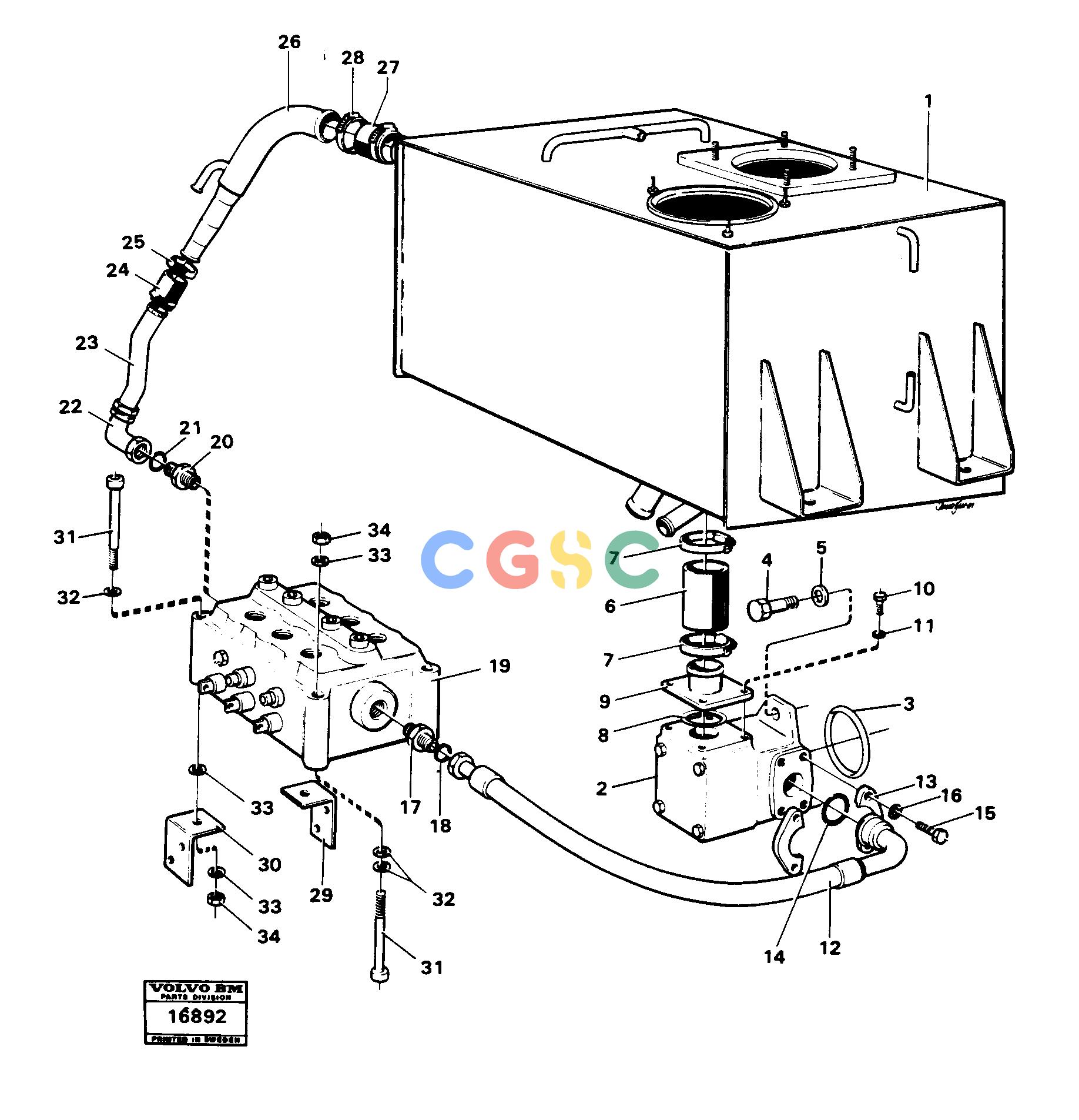

沃尔沃零件查询4300 Feed lines prod no 33106, 33107,4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE941912
|
[0002] |
Spring washer
|
|
| 6. |
VOE761018
|
[0001] |
Sleeve
|
|
| 7. |
VOE927477
|
[0002] |
Hose clamp
|
|
| 8. |
VOE993327
|
[0001] |
O-ring
|
|
| 9. |
VOE4749867
|
[0001] |
Suction connection
|
|
| 1. |
|
[0001] |
Hydr fluid tank
|
|
| 10. |
VOE955561
|
[0004] |
Hexagon screw
|
|
| 11. |
VOE940280
|
[0004] |
Spring washer
|
|
| 12. |
VOE931774
|
[0001] |
Hose assembly
|
|
| 13. |
VOE926732
|
[0002] |
Flange half
|
|
| 14. |
VOE993326
|
[0001] |
O-ring
|
|
| 15. |
VOE13940134
|
[0004] |
Screw
|
|
| 16. |
VOE13941909
|
[0004] |
Washer
|
|
| 17. |
VOE944041
|
[0001] |
Nipple
|
|
| 18. |
VOE14013071
|
[0001] |
Sealing washer
|
|
| 19. |
VOE4880470
|
[0001] |
Hydraulic valve
|
PROD NO 33100, 33105,
|
| |
|
|
None
|
33106, 33107.
|
| |
|
|
None
|
|
| 2. |
VOE4880801
|
[0001] |
Vane pump
|
|
| 20. |
VOE944204
|
[0001] |
Nipple
|
|
| 21. |
VOE14013072
|
[0001] |
Sealing washer
|
|
| 22. |
VOE784613
|
[0001] |
Elbow
|
|
| 23. |
VOE4927712
|
[0001] |
Tube
|
|
| 24. |
VOE927139
|
[0001] |
Hydraulic hose
|
|
| 25. |
VOE927466
|
[0002] |
Hose clamp
|
SER NO - 3327, 4013 -
|
| |
VOE930832
|
[0002] |
Hose clamp
|
SER NO 3328 - 4012
|
| 3. |
VOE925096
|
[0001] |
O-ring
|
|
| 26. |
VOE4932364
|
[0001] |
Return pipe
|
|
| 27. |
VOE761018
|
[0001] |
Sleeve
|
|
| 28. |
VOE927477
|
[0002] |
Hose clamp
|
SER NO -3327
|
| |
VOE927477
|
[0002] |
Hose clamp
|
|
| |
|
|
None
|
SER NO 3328 - 4012
|
| |
VOE927478
|
[0002] |
Hose clamp
|
SER NO 4013 -
|
| 29. |
VOE4927535
|
[0001] |
Anchorage
|
|
| 30. |
VOE4927536
|
[0001] |
Anchorage
|
|
| 31. |
VOE997955
|
[0003] |
Hexagon screw
|
|
| 32. |
VOE60110353
|
[0006] |
Washer
|
|
| 33. |
VOE940280
|
[0003] |
Spring washer
|
|
| 4. |
VOE955364
|
[0002] |
Hexagon screw
|
|
| 34. |
VOE13971072
|
[0003] |
Hexagon nut
|
|
