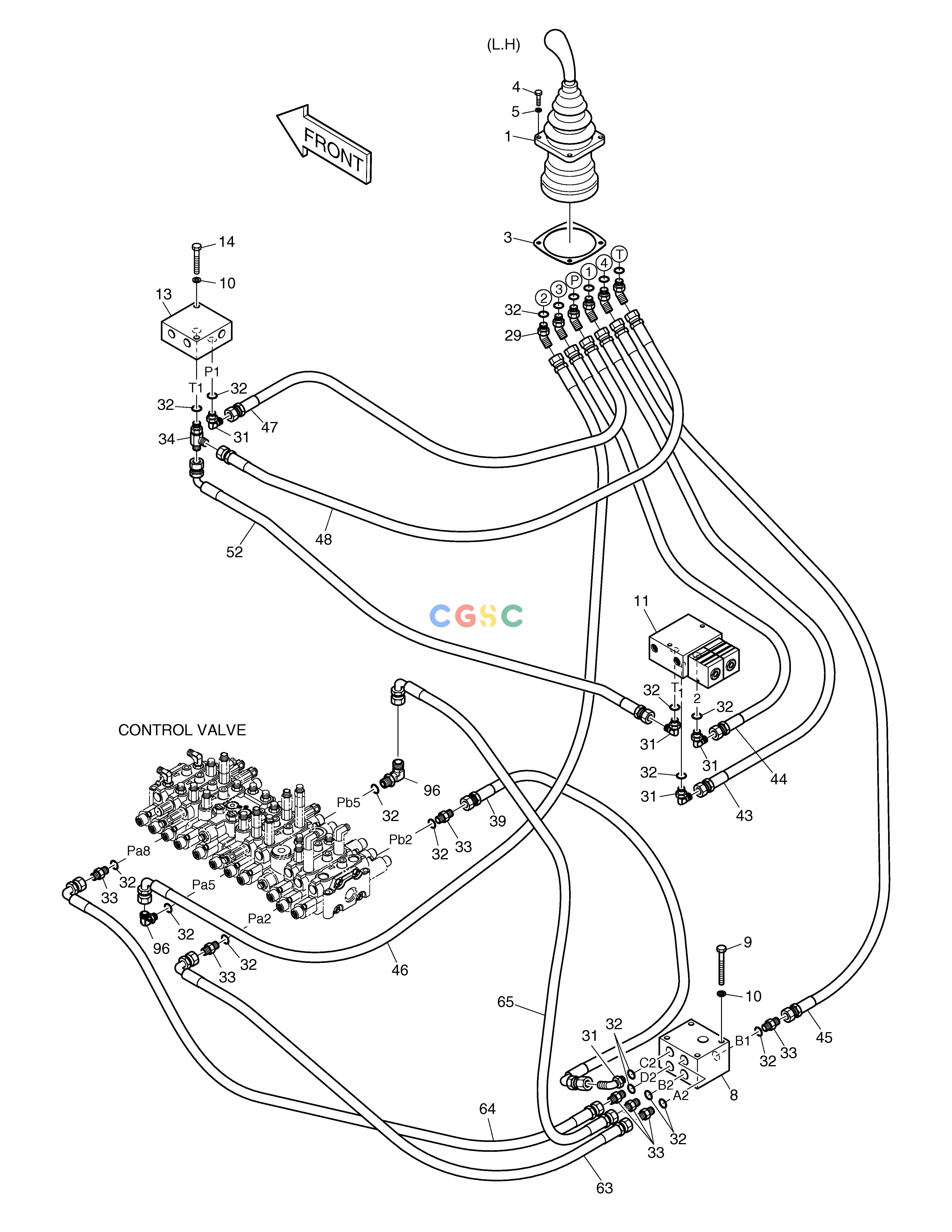

斗山零件查询PILOT PIPING(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01249
|
[-] |
PILOT PIPING
|
|
| 1. |
420-00408
|
[1] |
VALVE;JOYSTICK(L)
|
|
| 10. |
S5102503
|
[6] |
. WASHER
|
|
| 11. |
2420-9509
|
[1] |
VALVE;CHANGE
|
|
| 13. |
2423-1390
|
[1] |
BLOCK
|
|
| 14. |
S0556453
|
[2] |
BOLT
|
|
| 29. |
2181-2430D1
|
[6] |
ELBOW
|
|
| 3. |
2621-2752
|
[1] |
PLATE
|
|
| 31. |
2181-1702D4
|
[5] |
ELBOW
|
|
| 32. |
S8000111
|
[21] |
O-RING
|
|
| 33. |
2181-1126D14
|
[7] |
ADAPTER
|
|
| 34. |
2181-1951D1
|
[1] |
TEE
|
|
| 39. |
2184-1046D69
|
[1] |
HOSE
|
|
| 4. |
S0505053
|
[4] |
BOLT
|
|
| 43. |
DS2053773
|
[1] |
HOSE
|
|
| 44. |
2184-1045D117
|
[1] |
HOSE PF1/4-1220L
|
|
| 45. |
2184-1045D207
|
[1] |
HOSE PF1/4-1150L
|
|
| 46. |
2184-1046D219
|
[1] |
HOSE PF1/4-2100L
|
|
| 47. |
2184-1045D75
|
[1] |
HOSE PF1/4-1595L
|
|
| 48. |
2184-1045D202
|
[1] |
HOSE PF1/4-1650L
|
|
| 5. |
S5102303
|
[4] |
. WASHER
|
|
| 52. |
2184-1046D93
|
[1] |
HOSE
|
|
| 63. |
DS2055780
|
[1] |
HOSE
|
|
| 64. |
2184-1046D51
|
[1] |
HOSE PF1/4-980L
|
|
| 65. |
2184-1046D198
|
[1] |
HOSE PF1/4-400L
|
|
| 8. |
2420-9351B
|
[1] |
VALVE;SHUTTLE
|
|
| 9. |
S0510153
|
[4] |
BOLT M8X1.25X75
|
|
| 96. |
2181-1702D4
|
[2] |
ELBOW
|
|
