斗山零件查询PILOT PIPING(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01249
|
[-] |

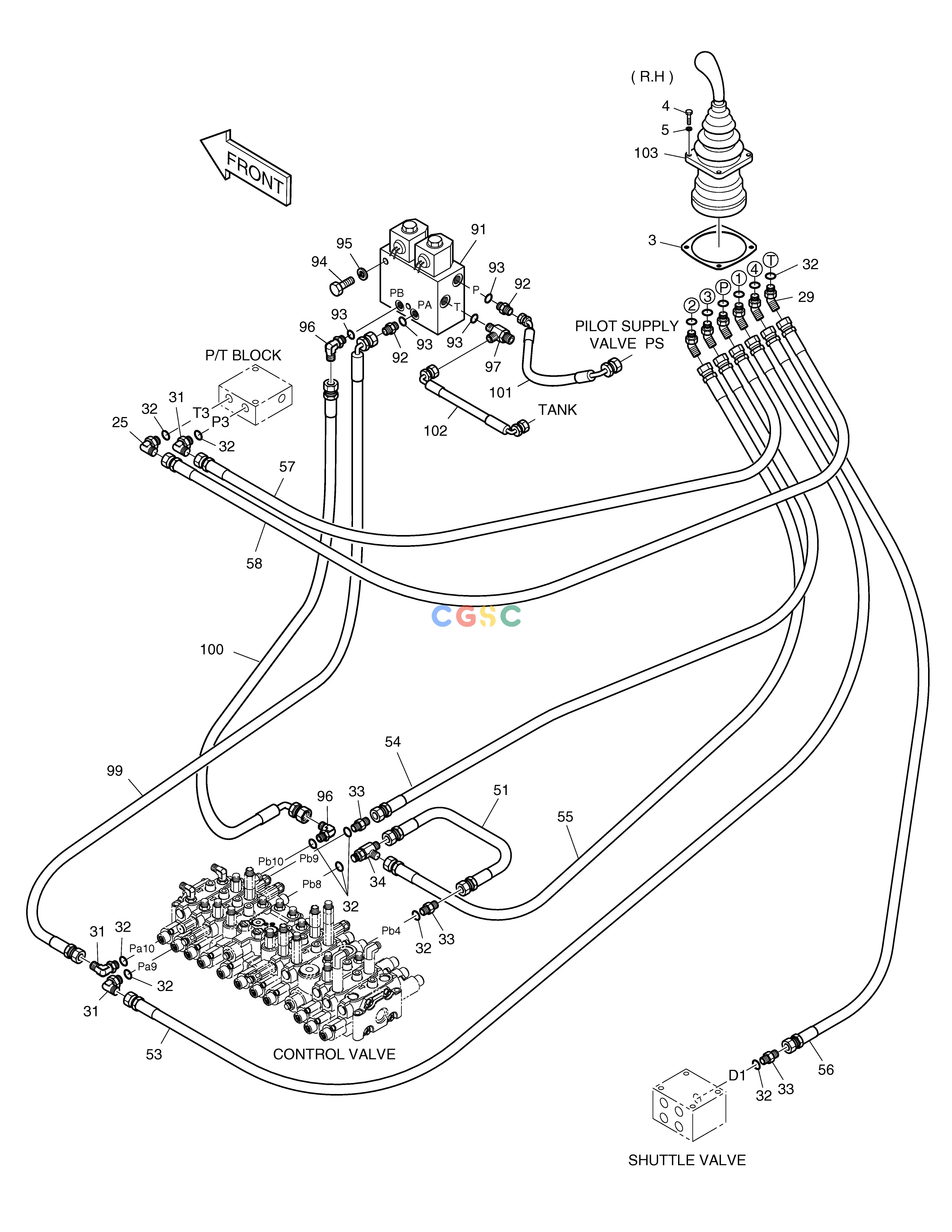

PILOT PIPING
|
|
| 100. |
2184-1046D114
|
[1] |
HOSE PF1/4-1350L
|
|
| 101. |
DS2058240
|
[1] |
HOSE
|
|
| 102. |
2184-1061D155
|
[1] |
HOSE
|
|
| 103. |
420-00431
|
[1] |
REMOTE CONTROL VALVE(R.H)
|
|
| 25. |
2181-1702D57
|
[1] |
ELBOW
|
|
| 29. |
2181-2430D1
|
[6] |
ELBOW
|
|
| 3. |
2621-2752
|
[1] |
PLATE
|
|
| 31. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 32. |
S8000111
|
[15] |
O-RING
|
|
| 33. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 34. |
2181-1951D1
|
[1] |
TEE
|
|
| 4. |
S0505053
|
[4] |
BOLT
|
|
| 5. |
S5102303
|
[4] |
. WASHER
|
|
| 51. |
2184-1045D150
|
[1] |
HOSE PF1/4-540L
|
|
| 53. |
2184-1045D131
|
[1] |
HOSE PF1/4-2700L
|
|
| 54. |
2184-1045D111
|
[1] |
HOSE PF1/4-1570L
|
|
| 55. |
2184-1046D169
|
[1] |
HOSE PF1/4-1600L
|
|
| 56. |
2184-1045D105
|
[1] |
HOSE PF1/4-1900L
|
|
| 57. |
2184-1045D125
|
[1] |
HOSE PF1/4-1700L
|
|
| 58. |
2184-1045D148
|
[1] |
HOSE PF1/4-1800L
|
|
| 91. |
422-00010
|
[1] |
VALVE;SOLENOID
|
|
| 92. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 93. |
S8000111
|
[4] |
O-RING
|
|
| 94. |
S0556653
|
[2] |
BOLT M8X1.25X65
|
|
| 95. |
S5102503
|
[2] |
. WASHER
|
|
| 96. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 97. |
2181-1951D1
|
[1] |
TEE
|
|
| 99. |
2184-1046D108
|
[1] |
HOSE PF1/4-1300L
|
|
