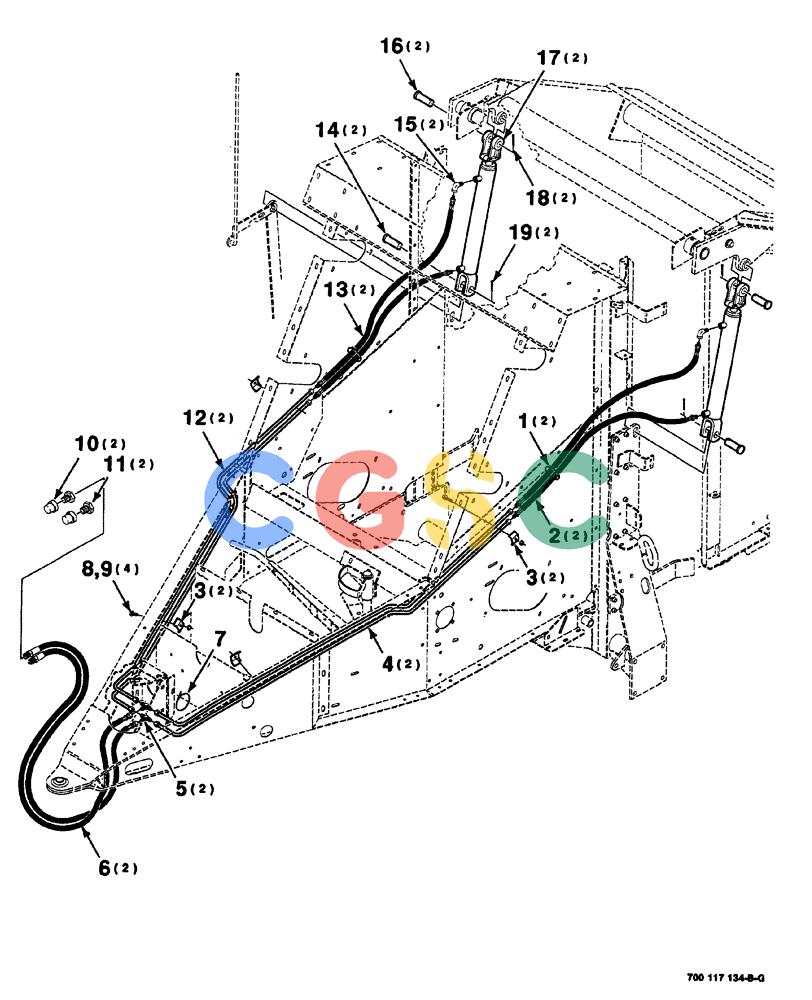

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (08-04) - HYDRAULIC ASSEMBLY (S/N CFH0054166 AND LATER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L18337
|
[2] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE cable Superseded by part number: 529070
|
| 2. |
700711149
|
[2] |
HYDRAULIC HOSE,6.35 mm ID x 690.00 mm, TYPE 100R1 SAE J517
|
L
|
| 3. |
6251375
|
[4] |
CLAMP
|
HFI
|
| 4. |
700700820
|
[2] |
RIGID TUBE
|
CAS
hydraulic, left
|
| 5. |
218-593
|
[2] |
TEE,9/16"-18, 37 Degree
|
CAS
flared, 9/16"-18 Superseded by part number: 72187026, 76355
|
| 6. |
7872641
|
[2] |
HOSE
|
L
hydraulic
|
| 7. |
306132C1
|
[1] |
CABLE TIE,14.5" L
|
IH
CABLE STRAP TIE Superseded by part number: 435437A1
|
| 8. |
409-7624
|
[4] |
BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl
|
CAS
Superseded by part number: 86512175
|
| 9. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 10. |
746677
|
[2] |
CAP
|
CAS
pipe
|
| 11. |
221-89
|
[2] |
REDUCER,Hex, 1/2" x 3/8" NPT
|
CAS
Bushing Superseded by part number: 86625018
|
| 12. |
700700821
|
[2] |
FLEXIBLE HOSE
|
HFI
hydraulic, right
|
| 13. |
700700817
|
[2] |
HOSE
|
L
hydraulic
|
| 14. |
439-51644
|
[2] |
HEADED PIN,1" x 2 3/4", G5
|
CAS
clevis, 1" x 2-5/8" Superseded by part number: 86632567
|
| 15. |
217-1019
|
[2] |
ELBOW,1/2" - 14 Female x 1/2" - 14 Male
|
CAS
ELL street, 90° Superseded by part number: 283354
|
| 16. |
700711078
|
[2] |
PIN
|
CAS
clevis, special, 1" x 3-1/4"
|
| 17. |
700711032
|
[2] |
CYLINDER ASSY.
|
L
hydraulic, see Figure 08-08
|
| 18. |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 19. |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Superseded by part number: 80753
|
