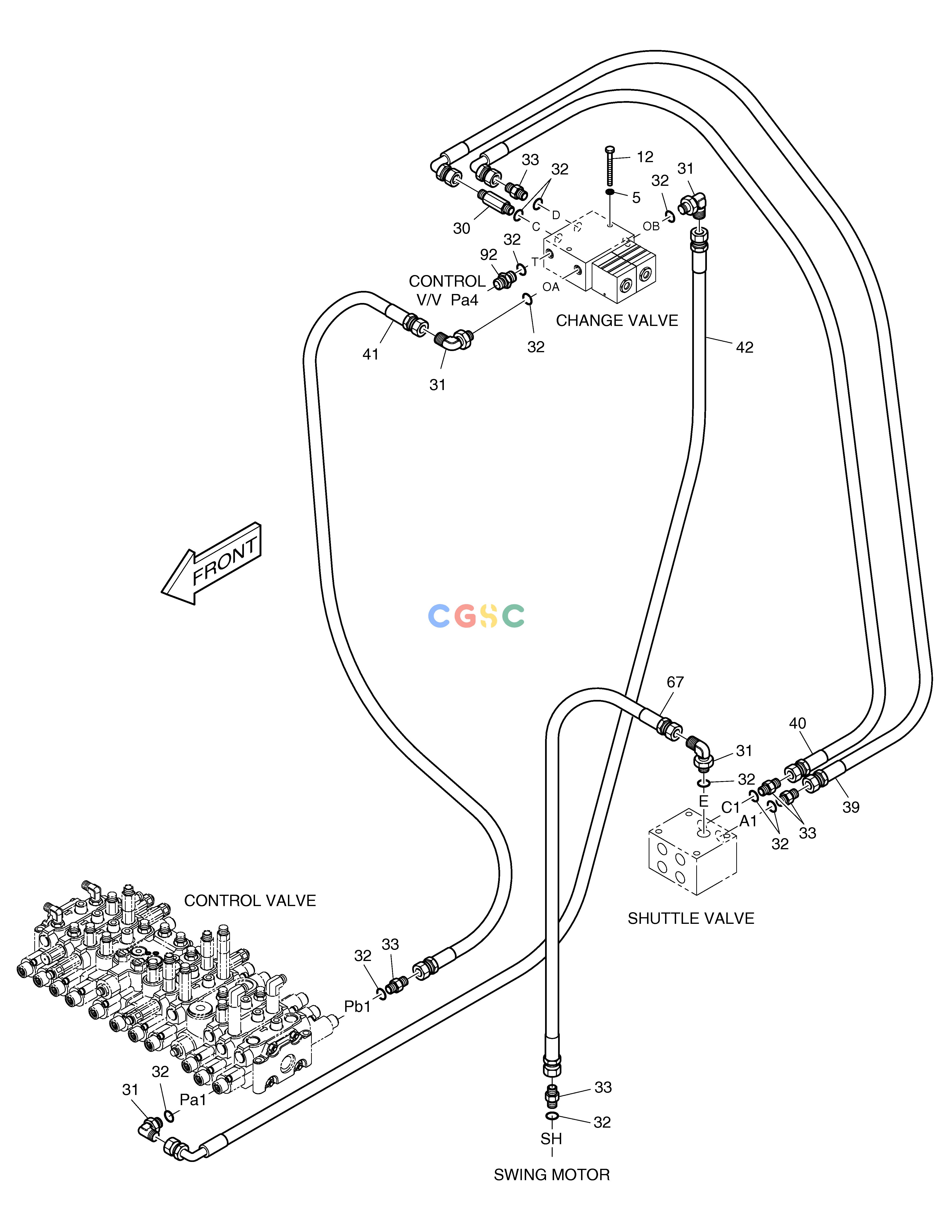

斗山零件查询PILOT PIPING(4) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01249
|
[-] |
PILOT PIPING
|
|
| 12. |
S0553853
|
[2] |
BOLT M6X1.0X60
|
|
| 30. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 31. |
2181-1702D4
|
[4] |
ELBOW
|
|
| 32. |
S8000111
|
[11] |
O-RING
|
|
| 33. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 39. |
2184-1046D69
|
[1] |
HOSE
|
|
| 40. |
2184-1046D93
|
[1] |
HOSE
|
|
| 41. |
2184-1045D128
|
[1] |
HOSE PF1/4-1080L
|
|
| 42. |
2184-1046D42
|
[1] |
HOSE PF1/4-720L
|
|
| 5. |
S5102303
|
[2] |
. WASHER
|
|
| 67. |
2184-1045D148
|
[1] |
HOSE PF1/4-1800L
|
|
| 92. |
2181-1126D14
|
[1] |
ADAPTER
|
|
