斗山零件查询PILOT PIPING(3) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
399 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01249
|
[-] |

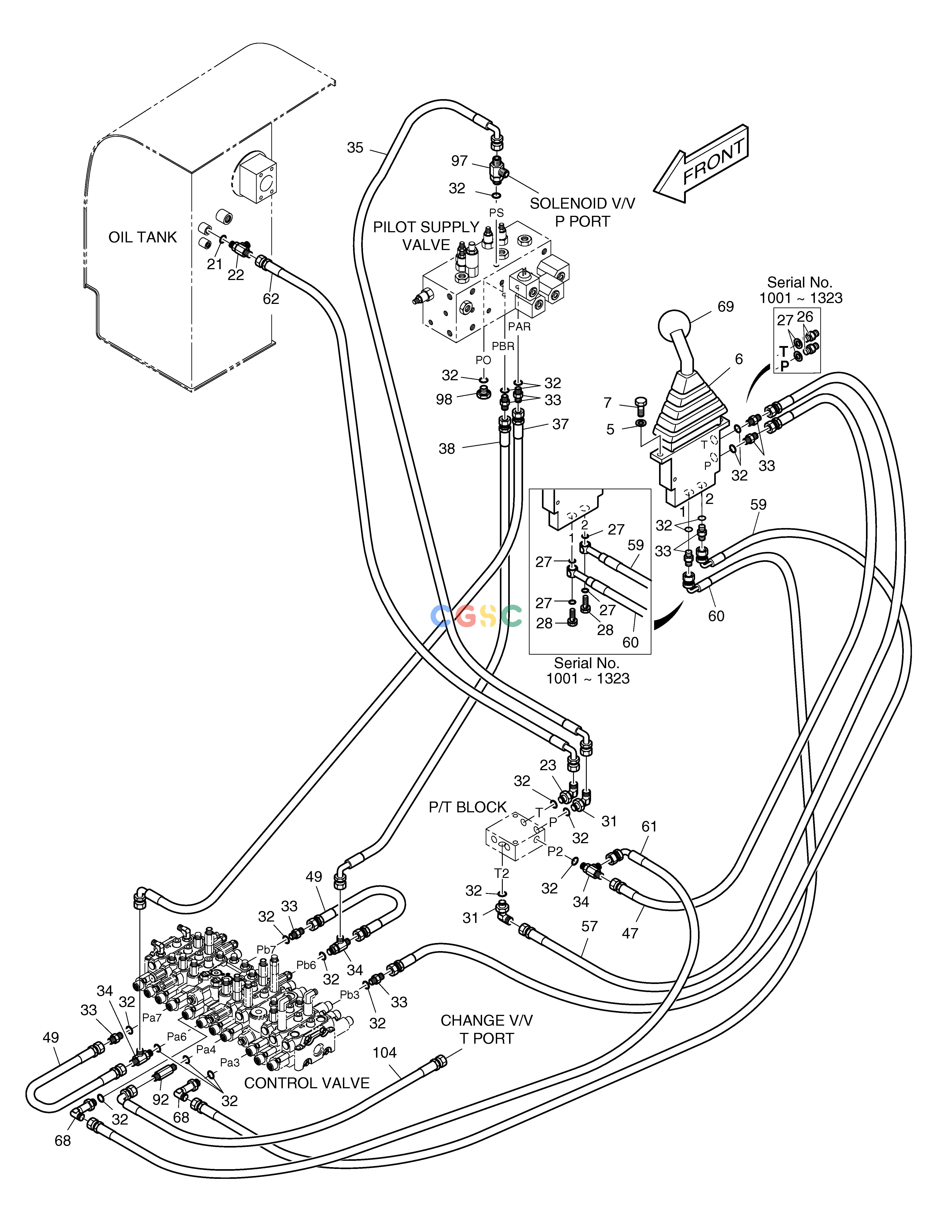

PILOT PIPING
|
|
| 104. |
2184-1046D69
|
[1] |
HOSE
|
|
| 21. |
S8000141
|
[1] |
O-RING
|
|
| 22. |
2181-1951D6
|
[1] |
TEE
|
|
| 23. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 26. |
2181-1917D4
|
[2] |
ADAPTER
|
|
| 27. |
S8180221
|
[6] |
RING;SEAL
|
|
| 28. |
2120-1475
|
[2] |
BOLT;HOLLOW
|
|
| 31. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 32. |
S8000111
|
[16] |
O-RING
|
|
| 32. |
S8000111
|
[20] |
O-RING
|
|
| 33. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 33. |
2181-1126D14
|
[9] |
ADAPTER
|
|
| 34. |
2181-1951D1
|
[3] |
TEE
|
|
| 35. |
DS2059437
|
[1] |
HOSE
|
|
| 37. |
2184-1046D121
|
[1] |
HOSE PF1/4-2240L
|
|
| 38. |
2184-1046D223
|
[1] |
HOSE PF1/4-1400L
|
|
| 47. |
2184-1045D75
|
[1] |
HOSE PF1/4-1595L
|
|
| 49. |
2184-1045D156
|
[2] |
HOSE PF1/4-350L
|
|
| 5. |
S5102303
|
[2] |
. WASHER
|
|
| 57. |
2184-1045D125
|
[1] |
HOSE PF1/4-1700L
|
|
| 59. |
DS2068007
|
[1] |
HOSE
|
|
| 59. |
2184-1046D62
|
[1] |
HOSE PF1/4-1850L
|
|
| 6. |
420-00404
|
[1] |
VALVE;REMOCON(DOZER)
|
420-00404A
|
| 6. |
420-00404A
|
[1] |
VALVE;REMOCON(DOZER)
|
|
| 60. |
DS2068005
|
[1] |
HOSE
|
|
| 60. |
2184-1046D188
|
[1] |
HOSE PF1/4-2400L
|
|
| 61. |
2184-1046D107
|
[1] |
HOSE PF1/4-1250L
|
|
| 62. |
2184-1036D234
|
[1] |
HOSE PF3/8-1050L
|
|
| 68. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 69. |
132-00021
|
[1] |
GRIP
|
|
| 7. |
S0504653
|
[2] |
. BOLT
|
|
| 92. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 97. |
2181-1951D1
|
[1] |
TEE
|
|
| 98. |
2181-1950D1
|
[1] |
PLUG
|
|
