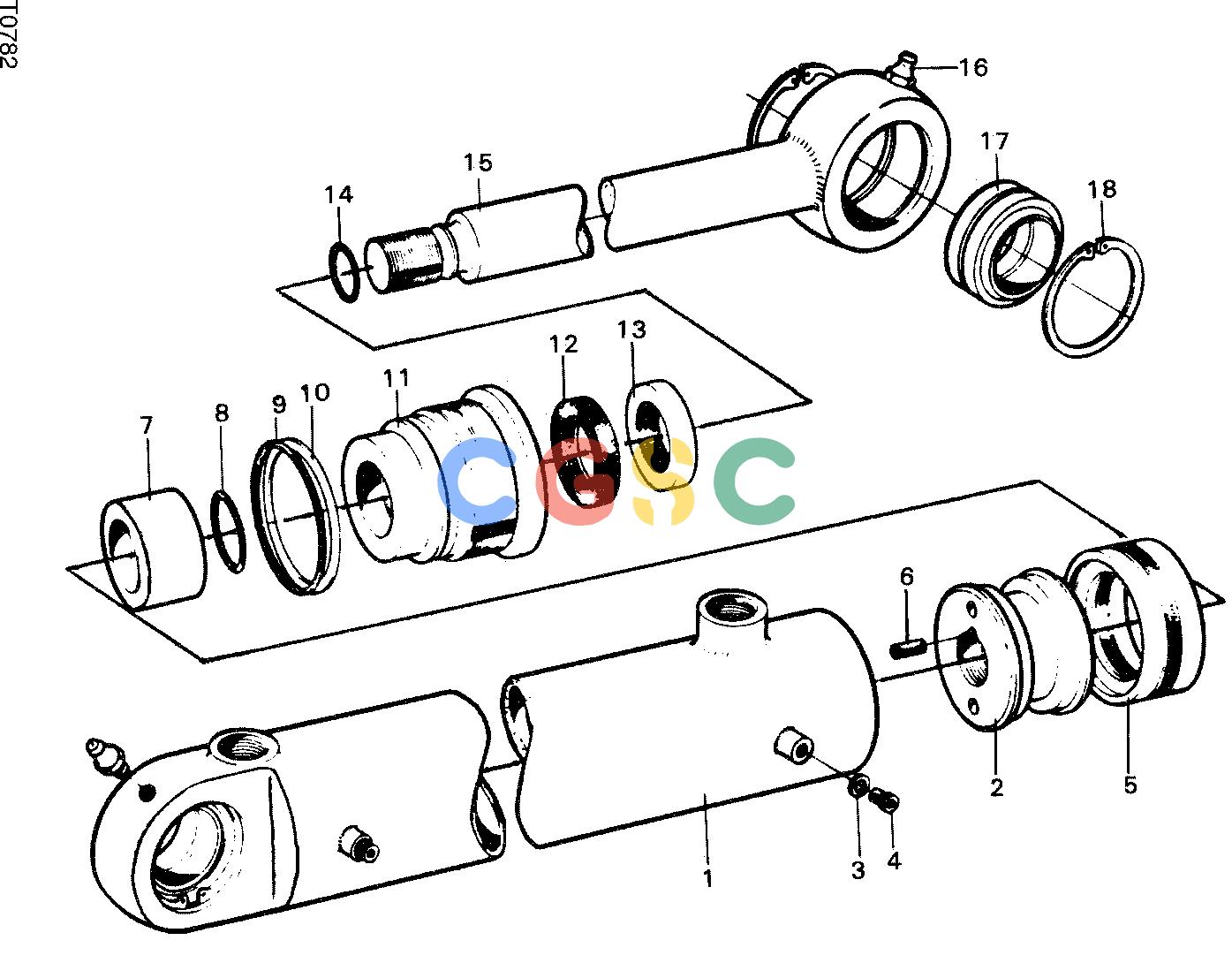

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| F018292 | [1] | Hydraulic Cylinder | ||
| 1. | ------- | [1] | PISTON ROD | |
| 2. | F011245 | [1] | Piston | |
| 3. | F010779 | [1] | SEAL RING | |
| 4. | F016496 | [1] | Screw | |
| 15. | ------- | [1] | PISTON ROD | |
| 16. | F003727 | [2] | GREASE NIPPLE | |
| 17. | F005468 | [2] | SPHERICAL BEARING | |
| 18. | F003369 | [4] | CIRCLIP | |
| F011457 | [1] | Seal Kit |
