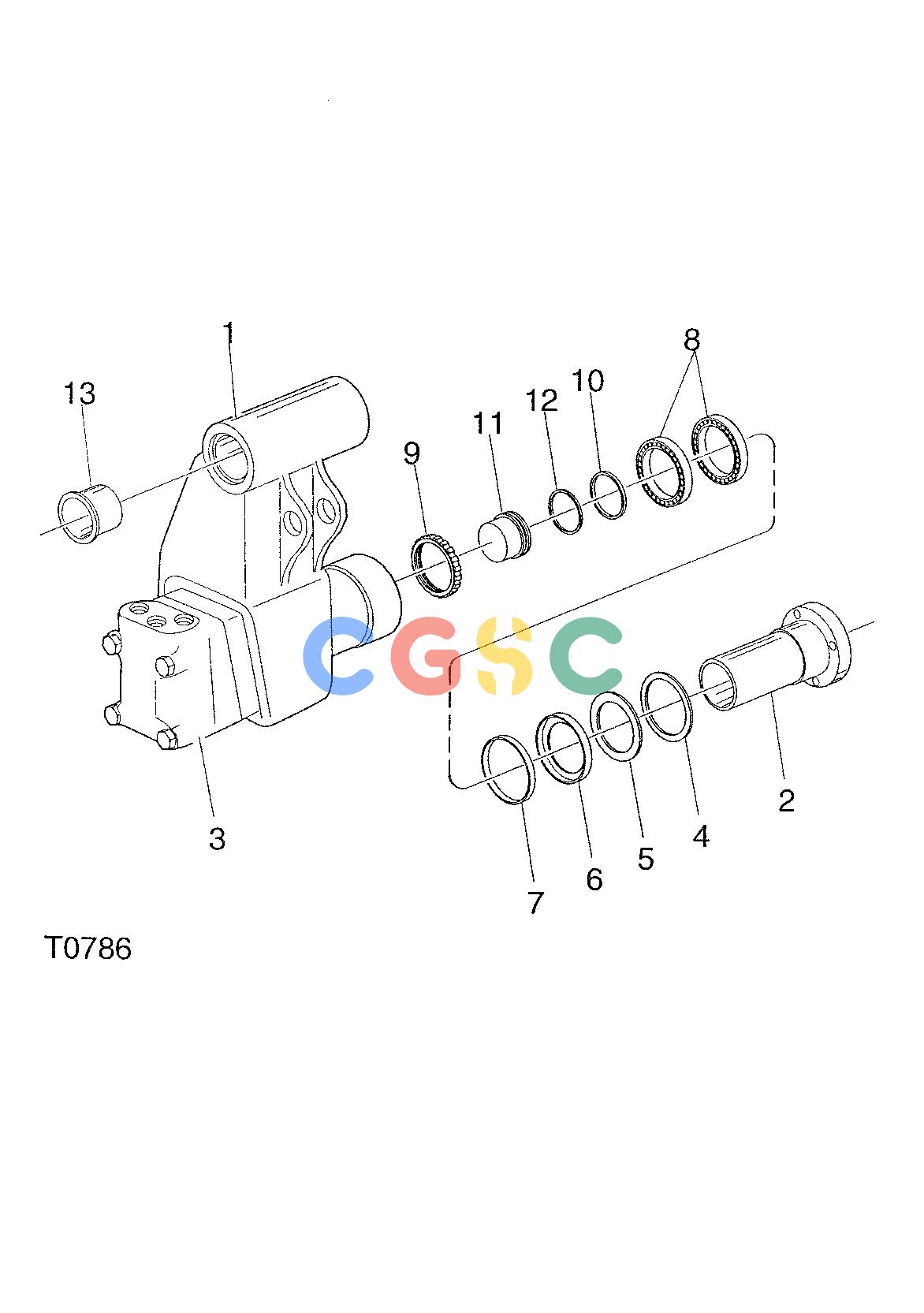

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE WHEEL MOUNTING F042686 11 4 T0786 [T0786]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F019282
|
[1] |
WHEEL MOUNTING
|
|
| |
F019281
|
[1] |
WHEEL MOUNTING
|
|
| 1. |
F019276
|
[1] |
WHEEL MOUNTING
|
|
| 1. |
F019275
|
[1] |
WHEEL MOUNTING
|
|
| 2. |
F014045
|
[1] |
Shaft
|
|
| 3. |
F040301
|
[1] |
Hydraulic Motor
|
|
| 4. |
F003376
|
[1] |
CIRCLIP
|
|
| 5. |
F014046
|
[1] |
Washer
|
|
| 6. |
F017016
|
[1] |
SEAL RING
|
|
| 7. |
F014047
|
[1] |
Spacer
|
|
| 8. |
F017017
|
[2] |
Roller Bearing
|
|
| 9. |
F017018
|
[1] |
Lock Nut
|
|
| 10. |
F003002
|
[1] |
CIRCLIP
|
|
| 11. |
F014048
|
[1] |
Stop
|
|
| 12. |
F003289
|
[1] |
O-Ring
|
|
| 13. |
F048015
|
[2] |
BEARING BUSHING
|
|
