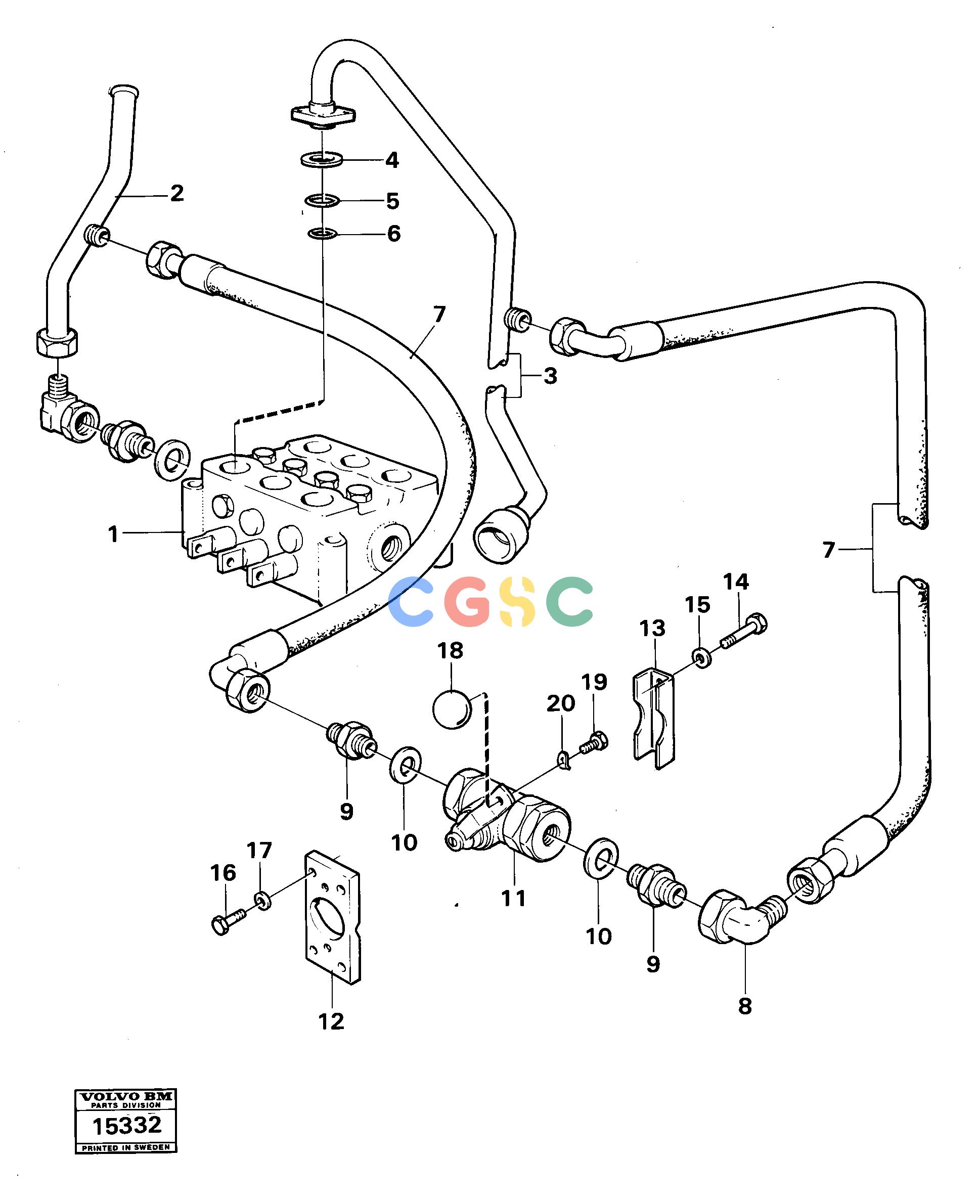

沃尔沃零件查询4300 Single-acting lifting function 9 86524300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
754 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE949659
|
[0001] |
O-ring
|
|
| 6. |
VOE958229
|
[0001] |
O-ring
|
|
| 7. |
VOE931705
|
[0002] |
Hose assembly
|
|
| |
VOE4880494
|
[0004] |
O-ring
|
|
| 8. |
VOE944258
|
[0001] |
Elbow nipple
|
|
| 9. |
VOE13943988
|
[0002] |
Nipple
|
|
| 1. |
|
[0001] |
Hydraulic valve
|
|
| 10. |
VOE14013070
|
[0002] |
Sealing washer
|
|
| 11. |
VOE4747766
|
[0001] |
Tap
|
|
| |
VOE6614684
|
[0001] |
Hand lever
|
|
| 12. |
|
[0001] |
Mounting plate
|
|
| 13. |
|
[0001] |
Cap
|
|
| 14. |
VOE955303
|
[0002] |
Hexagon screw
|
|
| 15. |
VOE13955894
|
[0002] |
Washer
|
|
| 16. |
VOE13955294
|
[0004] |
Screw
|
|
| 17. |
VOE13955894
|
[0004] |
Washer
|
|
| 18. |
VOE190991
|
[0001] |
Handle ball
|
|
| 2. |
VOE4929248
|
[0001] |
Tube
|
|
| 19. |
VOE13955295
|
[0001] |
Screw
|
|
| 20. |
VOE13941907
|
[0001] |
Washer
|
|
| 3. |
VOE4929338
|
[0001] |
Tube
|
|
| 4. |
VOE4780734
|
[0001] |
Back-up ring
|
|
