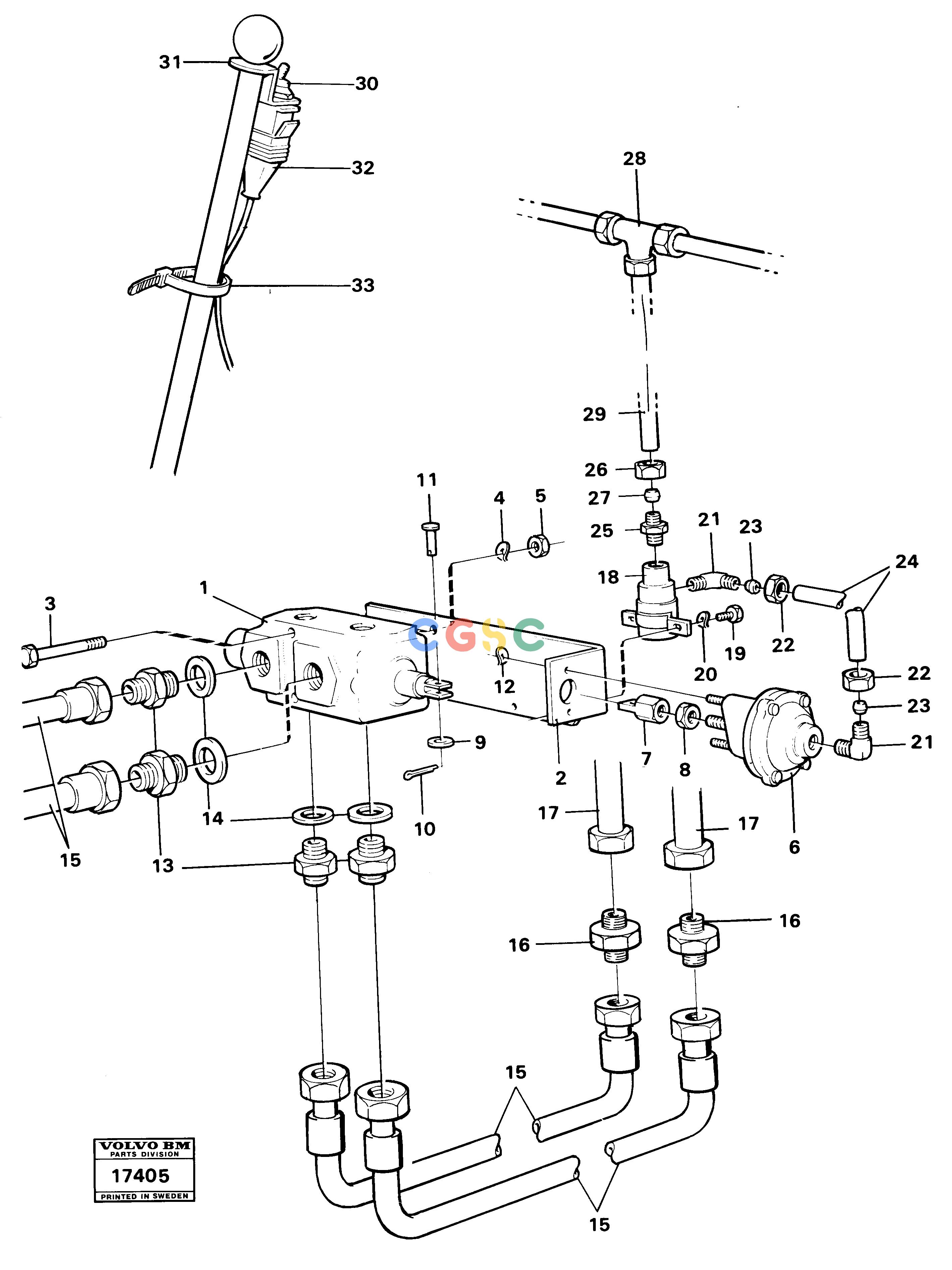

沃尔沃零件查询4300 5:th hydraulic function 995714300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 6. |
VOE4785007
|
[0001] |
Rcpt Housing
|
|
| 7. |
VOE4741636
|
[0001] |
Extension
|
|
| 8. |
VOE13955847
|
[0001] |
Nut
|
|
| 9. |
VOE13940097
|
[0001] |
Washer
|
|
| 1. |
VOE4780754
|
[0001] |
Hydraulic valve
|
|
| 10. |
VOE907845
|
[0001] |
Split pin
|
|
| 11. |
VOE4741637
|
[0001] |
Pin
|
|
| 12. |
VOE13941906
|
[0004] |
Washer
|
|
| 13. |
VOE13943988
|
[0006] |
Nipple
|
|
| 14. |
VOE14013070
|
[0006] |
Sealing washer
|
|
| 15. |
VOE931706
|
[0004] |
Hose assembly
|
|
| |
VOE4880494
|
[0008] |
O-ring
|
|
| 16. |
VOE957060
|
[0002] |
Nipple
|
|
| 17. |
|
[0002] |
Hose
|
|
| 18. |
VOE1584894
|
[0001] |
Solenoid valve
|
|
| 19. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 2. |
|
[0001] |
Mounting plate
|
|
| 20. |
VOE13941906
|
[0002] |
Washer
|
|
| 21. |
VOE13948414
|
[0002] |
Nipple
|
|
| 22. |
VOE941521
|
[0002] |
Fitting nut
|
|
| 23. |
VOE13956967
|
[0002] |
Ferrule
|
|
| 24. |
VOE6225917
|
[REQ] |
Plastic pipe
|
L=240
|
| 25. |
VOE942006
|
[0001] |
Nipple
|
|
| 26. |
VOE956981
|
[0003] |
Fitting nut
|
|
| 27. |
VOE13956967
|
[0003] |
Ferrule
|
|
| 28. |
VOE957121
|
[0001] |
T-nipple
|
|
| 29. |
VOE6225917
|
[REQ] |
Plastic pipe
|
L=1000
|
| 3. |
VOE970960
|
[0002] |
Hexagon screw
|
|
| 30. |
VOE4786696
|
[0001] |
Switch
|
|
| 31. |
VOE4850338
|
[0001] |
Retainer
|
|
| 32. |
VOE11987540
|
[0001] |
Bellows
|
|
| 33. |
VOE4881440
|
[0006] |
Cable tie
|
|
| 4. |
VOE941908
|
[0002] |
Spring washer
|
|
