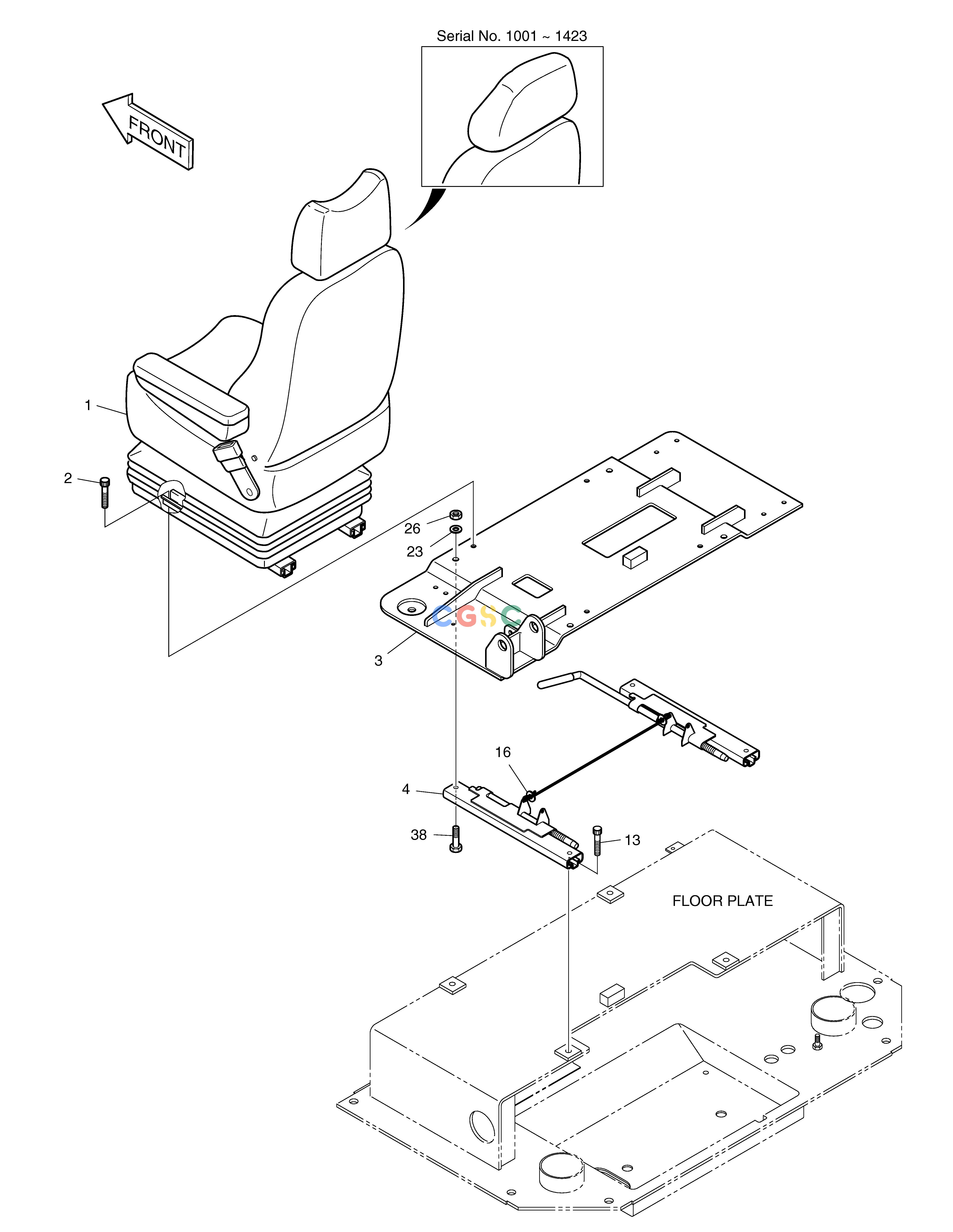

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 195-02319B | [-] | STAND ASS'Y | |
| -. | 195-02319C | [-] | STAND ASS'Y | |
| 1. | 901-00029 | [1] | SEAT | 901-00029A |
| 1. | 901-00029A | [1] | SEAT | |
| 13. | S2209063 | [4] | BOLT;SOCKET M8X1.25X25 | |
| 16. | 2114-1898D4 | [2] | WASHER | |
| 2. | S2209266 | [4] | BOLT | |
| 23. | 2114-1898D2 | [4] | WASHER | |
| 26. | 2121-1311D2 | [4] | NUT | |
| 3. | 621-02423C | [1] | PLATE;SEAT | |
| 3. | 621-02423E | [1] | PLATE;SEAT | |
| 38. | S0509253 | [4] | BOLT M8X1.25X30 | |
| 4. | 194-00024 | [1] | RAIL;SEAT |
