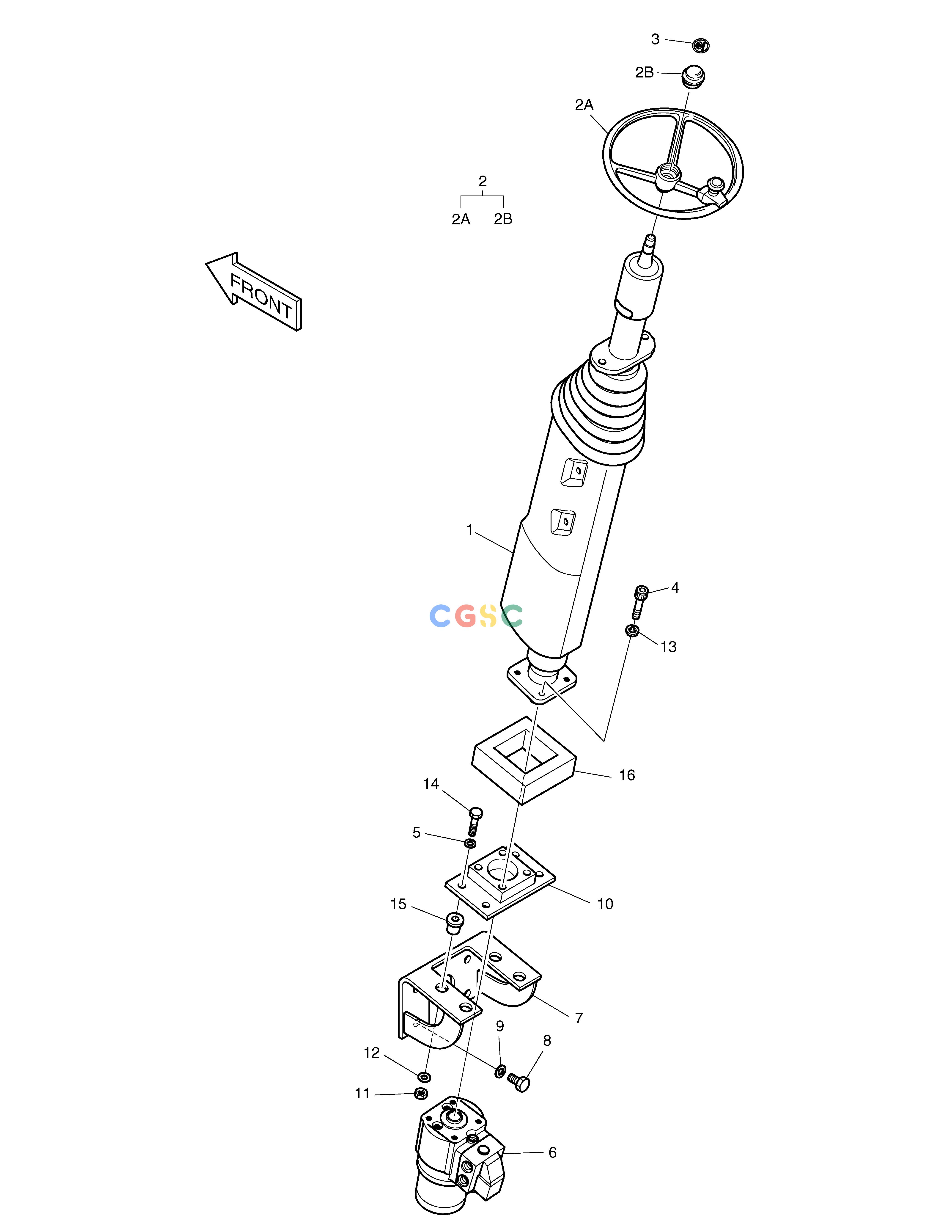

斗山零件查询STEERING ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300-00017
|
[-] |
STEERING ASS'Y
|
|
| 1. |
303-00015
|
[1] |
COLUMN;STEERING
|
|
| 10. |
195-02332
|
[1] |
BRACKET;COLUMN
|
|
| 11. |
S4012633
|
[4] |
NUT
|
|
| 12. |
2114-1898D16
|
[4] |
WASHER
|
|
| 13. |
S5110601
|
[4] |
WASHER;SPRING M10
|
|
| 14. |
S0558453
|
[4] |
BOLT
|
|
| 15. |
4161-9036
|
[4] |
MOUNT;FLEX
|
|
| 16. |
161-00521
|
[1] |
FOAM;SPONGE
|
|
| 2. |
154-00005
|
[1] |
WHEEL;STEERING
|
|
| 2A. |
NA01343
|
[1] |
|
|
| 2B. |
0047.0064
|
[1] |
CAP;WHEEL
|
|
| 3. |
190-00138
|
[1] |
PLATE;NAME
|
|
| 4. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 5. |
S5102603
|
[4] |
. WASHER
|
|
| 6. |
2420-9579
|
[1] |
STEERING VALVE
|
|
| 7. |
195-02186
|
[1] |
BRACKET;STEER
|
|
| 8. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 9. |
S5102703
|
[4] |
WASHER
|
|
