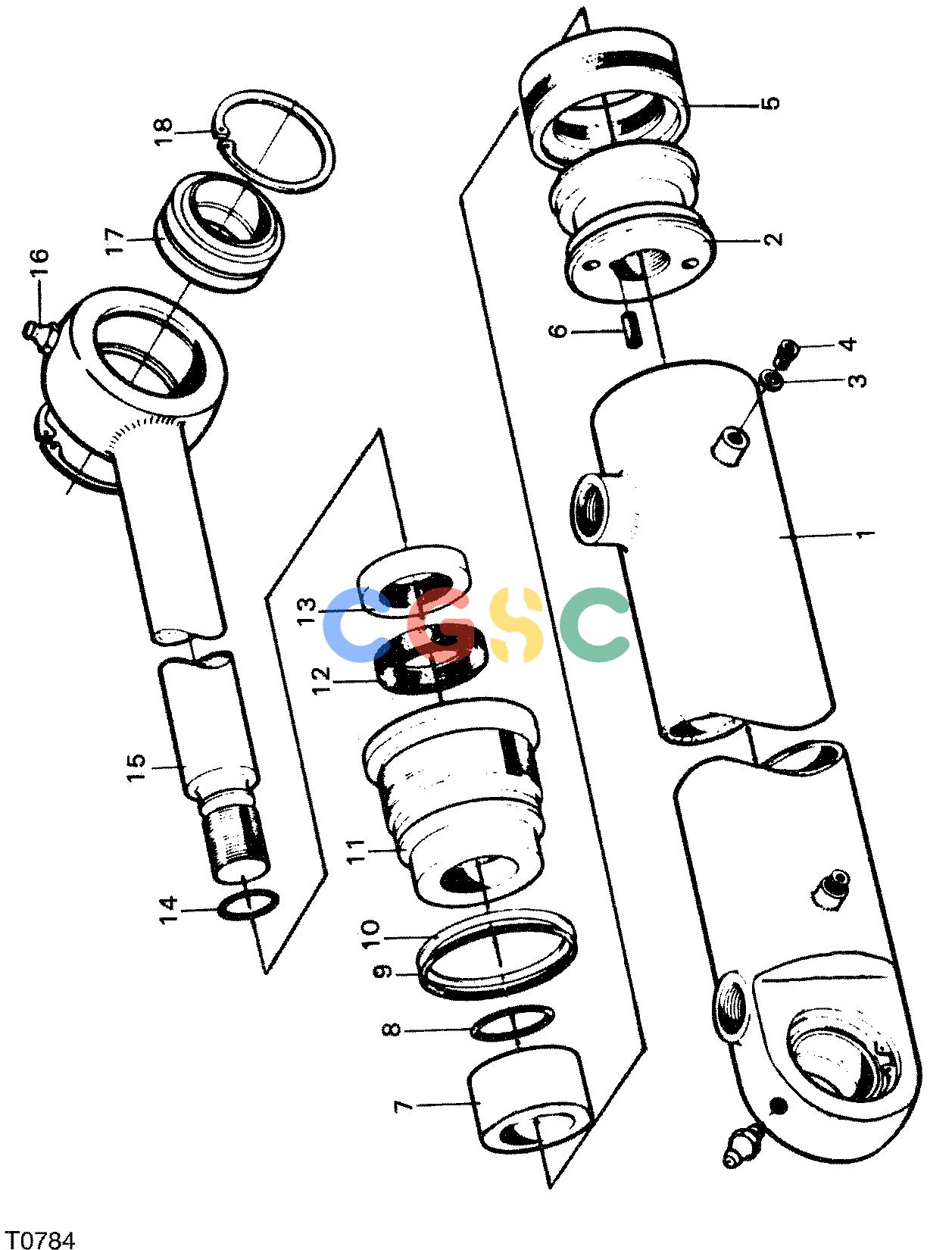

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE CYLINDER, MEAS ROLL F042686 11 16 T0784 [T0784]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F005553
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F010980
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F011459
|
[1] |
Piston
|
|
| 3. |
F010779
|
[1] |
SEAL RING
|
|
| 4. |
F016496
|
[1] |
Screw
|
|
| 5. |
-------
|
[1] |
Seal
|
|
| 6. |
-------
|
[1] |
STOP SCREW
|
|
| 7. |
F011461
|
[1] |
Sleeve
|
|
| 8. |
-------
|
[1] |
O-Ring
|
|
| 9. |
-------
|
[1] |
O-Ring
|
|
| 10. |
-------
|
[1] |
O-Ring
|
|
| 11. |
F035190
|
[1] |
Cap
|
|
| 12. |
-------
|
[1] |
Seal
|
|
| 13. |
-------
|
[1] |
Seal
|
|
| 14. |
-------
|
[1] |
O-Ring
|
|
| 15. |
F011458
|
[1] |
PISTON ROD
|
|
| 16. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 17. |
F005471
|
[2] |
SPHERICAL BEARING
|
|
| 18. |
F005613
|
[4] |
CIRCLIP
|
|
| |
F003149
|
[1] |
Seal Kit
|
|
