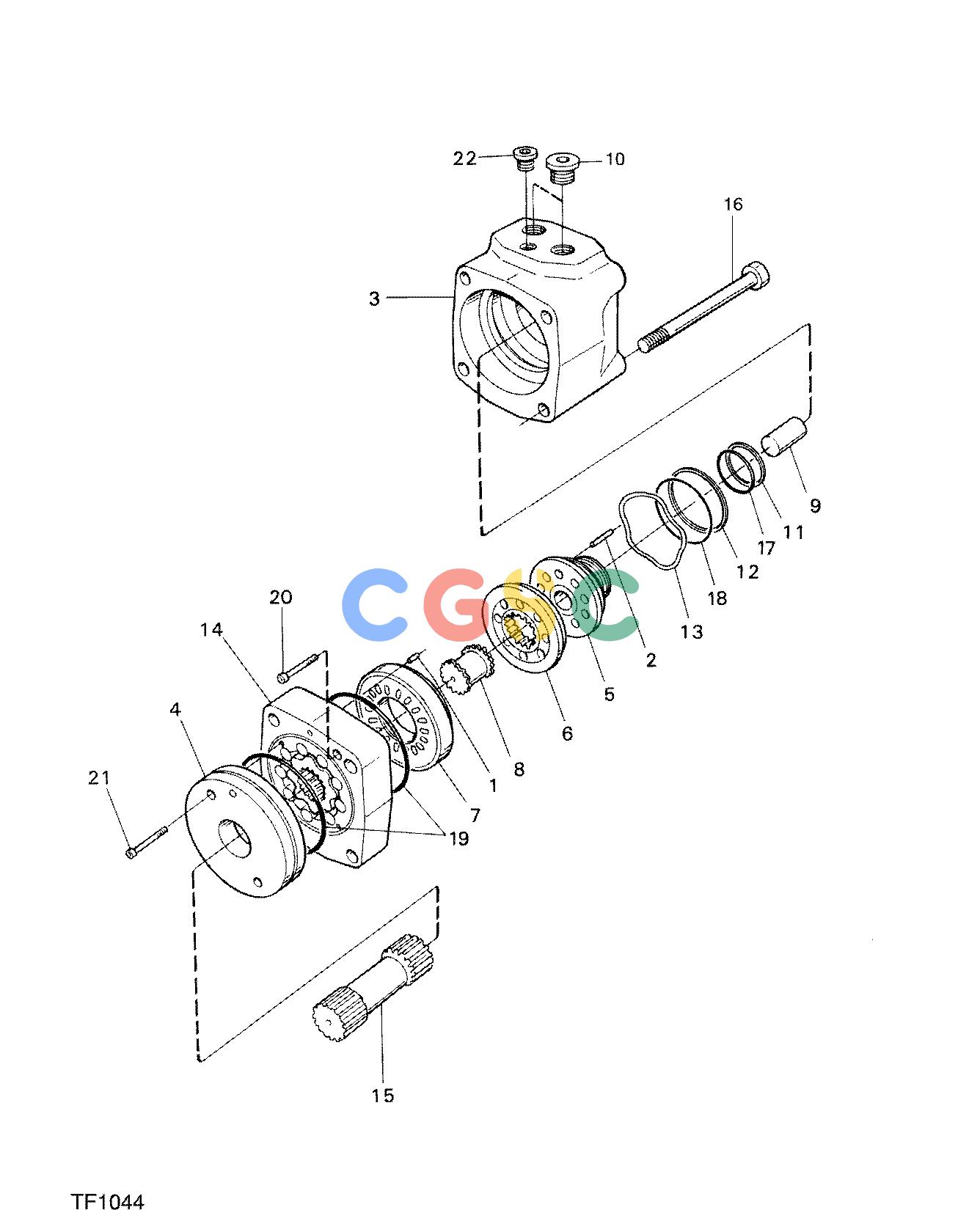

约翰迪尔零件查询732B ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, FEED ROLLS F042686 11 22 TF1044 [TF1044]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
784 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F040301
|
[1] |
Hydraulic Motor
|
|
| 1. |
F035132
|
[1] |
GUIDING PIN
|
|
| 2. |
F049666
|
[1] |
GUIDING PIN
|
|
| 3. |
F049659
|
[1] |
Sign
|
|
| 4. |
F049660
|
[1] |
VALVE HOUSING
|
|
| 5. |
F049661
|
[1] |
Plate
|
|
| 6. |
F049670
|
[1] |
Plate
|
|
| 7. |
F035368
|
[1] |
DISC
|
|
| 8. |
F035367
|
[1] |
FLAT PIECE
|
|
| 9. |
F035366
|
[1] |
Guide
|
|
| 10. |
F035370
|
[1] |
Spacer
|
|
| 11. |
F049663
|
[2] |
Plug
|
|
| 12. |
F022640
|
[1] |
SUPPORT RING
|
|
| 13. |
F022639
|
[1] |
SUPPORT RING
|
|
| 14. |
F049671
|
[2] |
Spring Washer
|
|
| 15. |
F049672
|
[1] |
Washer
|
|
| 16. |
F047861
|
[1] |
Shaft
|
|
| 17. |
F049673
|
[4] |
Screw
|
|
| 18. |
F010680
|
[1] |
O-Ring
|
|
| 19. |
F022637
|
[1] |
O-Ring
|
|
| 20. |
F022636
|
[2] |
O-Ring
|
|
| 21. |
F008644
|
[2] |
Screw
|
|
| 22. |
F010726
|
[2] |
Screw
|
|
| 23. |
F049674
|
[1] |
Ring
|
|
| 24. |
F035189
|
[1] |
Plug
|
|
| |
F049665
|
[1] |
Seal Kit
|
|
