沃尔沃零件查询4300 Filter4300784378-4880154NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
291 次

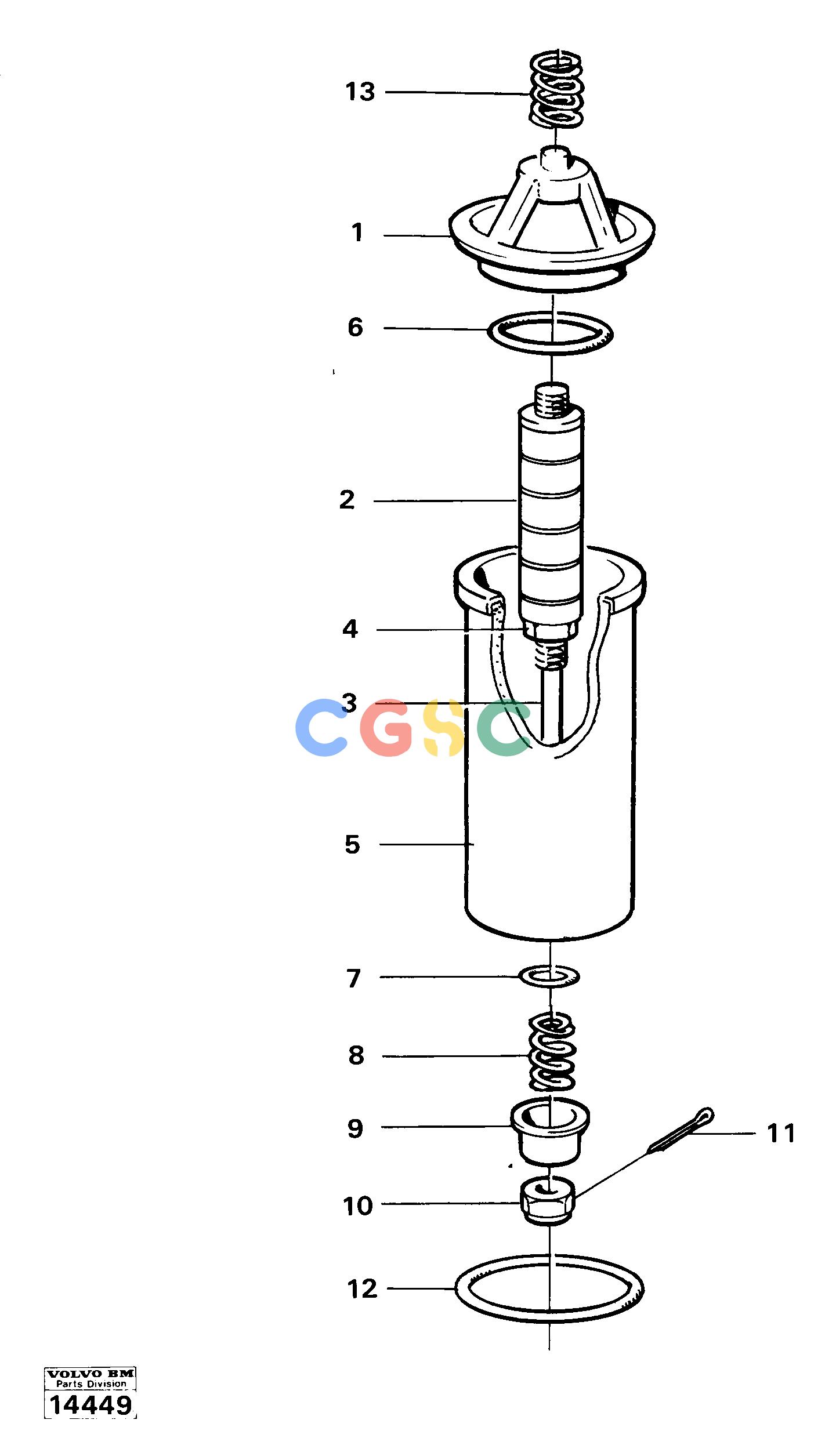

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE6635974
|
[1] |
Magnet
|
|
| |
|
|
Magnetic core
|
|
| 3. |
VOE6635973
|
[1] |
Pin
|
|
| 4. |
VOE6635977
|
[1] |
Nut
|
|
| 5. |
VOE11026934
|
[1] |
Filter cartridge
|
|
| |
VOE784378
|
[1] |
Filter
|
|
| 6. |
VOE925083
|
|
O-ring
|
|
| 7. |
VOE944364
|
|
O-ring
|
|
| 8. |
VOE6635978
|
[1] |
Spring
|
E PROD
|
| 9. |
VOE6635980
|
[1] |
Spring retainer
|
E PROD
|
| 10. |
VOE13961293
|
[1] |
Nut
|
M10, E PROD
|
| 11. |
VOE907825
|
[1] |
Split pin
|
E PROD
|
| 12. |
VOE925030
|
[1] |
O-ring
|
|
| |
VOE4880154
|
|
Filter insert
|
|
| |
VOE6210360
|
|
O-ring
|
|
| 13. |
VOE6635976
|
[1] |
Spring
|
|
| |
VOE11993070
|
|
Spring kit
|
M8, L PROD
|
| 1. |
VOE6635972
|
[1] |
Filter retainer
|
|
| |
|
|
Bracket
|
|
