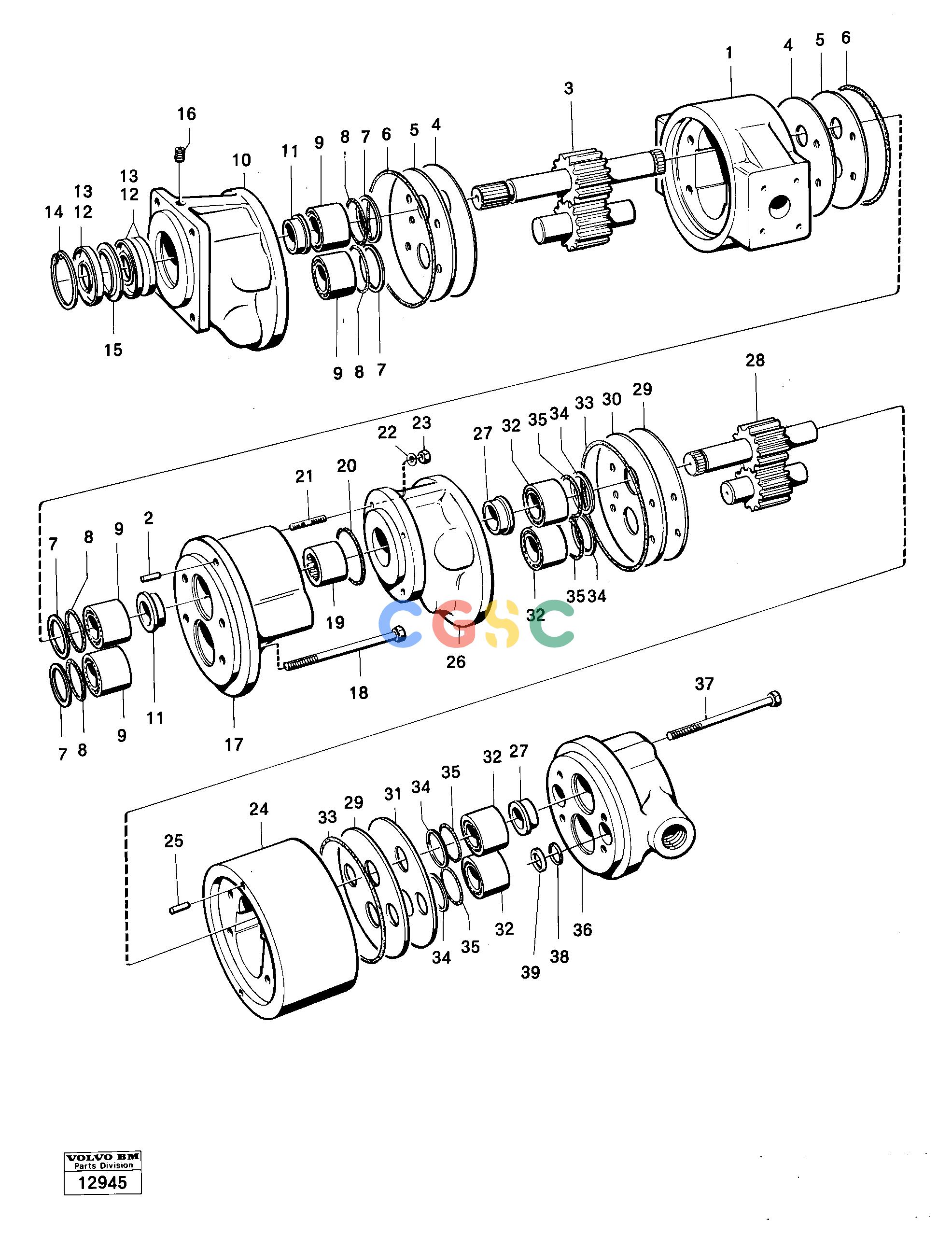

沃尔沃零件查询4300 Hydraulic-oil pump prod no 33100, 331054300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4780204
|
[0001] |
Tandem pump
|
|
| |
VOE6640204
|
[0001] |
Pump
|
|
| 1. |
VOE6617954
|
[0001] |
Housing
|
|
| 2. |
VOE11000115
|
[0004] |
Locating pin
|
|
| 3. |
VOE6637636
|
[0001] |
Drive gear set
|
|
| 4. |
VOE6614985
|
[0002] |
Spacer
|
|
| 5. |
VOE6614983
|
[0002] |
Wear plate
|
|
| 6. |
VOE6645868
|
[0002] |
O-ring
|
|
| 7. |
VOE6633194
|
[0004] |
Back-up ring
|
|
| 8. |
VOE6633195
|
[0004] |
O-ring
|
|
| 9. |
VOE6633987
|
[0004] |
Bearing
|
|
| 10. |
VOE6637635
|
[0001] |
Adapter
|
|
| 11. |
VOE6633191
|
[0002] |
Bushing
|
|
| 12. |
VOE6635774
|
[0003] |
Sealing ring
|
ALT 1
|
| 13. |
VOE6635774
|
[0001] |
Sealing ring
|
ALT 2
|
| |
VOE6642324
|
[0001] |
Seat
|
ALT 2
|
| 14. |
VOE13914536
|
[0001] |
Snap ring
|
|
| 15. |
|
[0001] |
Washer
|
|
| 16. |
VOE6631542
|
[0001] |
Screw
|
|
| 17. |
VOE6637633
|
[0001] |
Cap
|
|
| 18. |
VOE6635771
|
[0004] |
Bolt
|
|
| 19. |
VOE6637624
|
[0001] |
Clutch
|
|
| 20. |
VOE6637625
|
[0001] |
Sealing ring
|
|
| 21. |
VOE6637626
|
[0004] |
Screw
|
|
| 22. |
VOE6633988
|
[0004] |
Washer
|
|
| 23. |
VOE950364
|
[0004] |
Nut
|
|
| |
VOE6640205
|
[1] |
Pump
|
|
| 24. |
VOE6637629
|
[1] |
Pump housing
|
|
| 25. |
VOE6629027
|
[4] |
Locating pin
|
|
| 26. |
VOE6643445
|
[1] |
Pump
|
|
| 27. |
VOE6629018
|
[2] |
Bushing
|
|
| 28. |
VOE6637632
|
[1] |
Drive gear set
|
|
| 29. |
VOE6629017
|
[2] |
Spacer
|
|
| 30. |
VOE6629016
|
[1] |
Wear plate
|
|
| 31. |
VOE6629015
|
[1] |
Wear plate
|
|
| 32. |
VOE6629021
|
[4] |
Bearing
|
|
| 33. |
VOE6629024
|
[2] |
O-ring
|
|
| 34. |
VOE6629023
|
[4] |
Back-up ring
|
|
| 35. |
VOE6629022
|
[4] |
O-ring
|
|
| 36. |
VOE6637631
|
[1] |
Cap
|
|
| 37. |
VOE6637630
|
[0004] |
Screw
|
|
| 38. |
VOE6629031
|
[0002] |
O-ring
|
|
| 39. |
VOE6629032
|
[0002] |
Back-up ring
|
|
