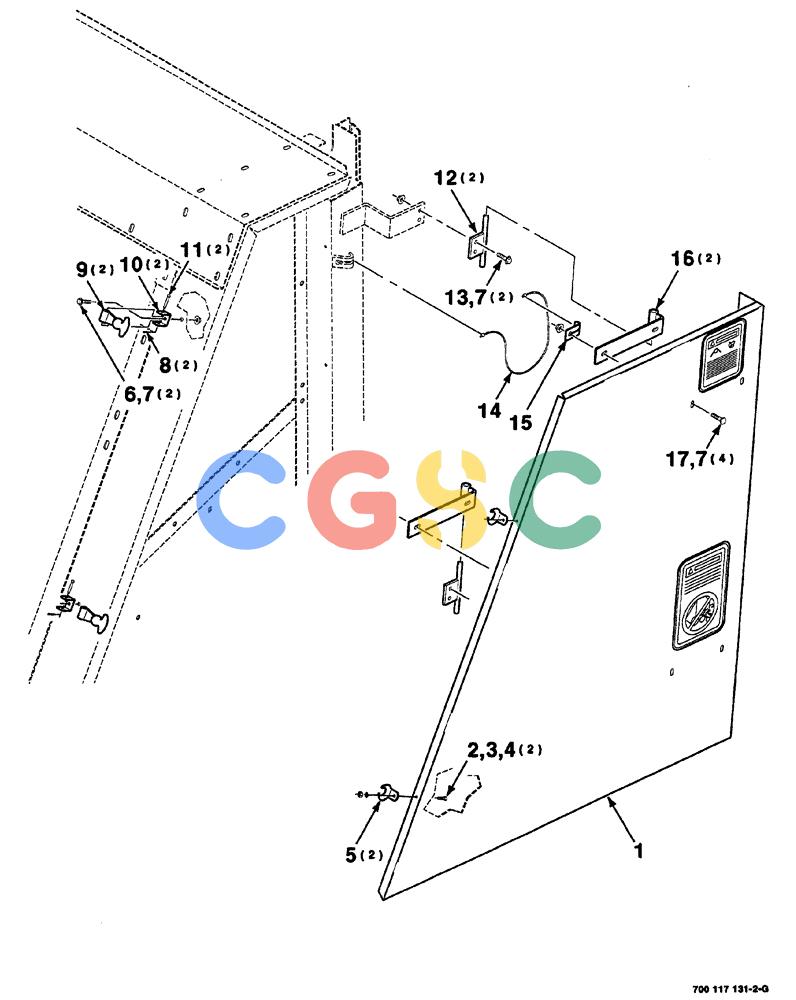

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (07-12) - SHIELDS ASSEMBLY (UPPER LEFT) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
325 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117207
|
[1] |
SHIELD
|
CAS
ASSY. side, left, includes decals
|
| 2. |
440-1106
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 3/8"
|
CAS
Superseded by part number: 72181877
|
| 3. |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 4. |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 5. |
8722910
|
[2] |
BRACKET
|
CAS
catch
|
| 6. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 7. |
231-5145
|
[8] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 8. |
432-612
|
[2] |
COTTER PIN,3/32" x 3/4"
|
CAS
Superseded by part number: 280250
|
| 9. |
494307C1
|
[2] |
LATCH
|
IH
rubber Superseded by part number: 86975220
|
| 10. |
776674
|
[2] |
SUPPORT
|
L
BRACKET anchor
|
| 11. |
141-13
|
[2] |
CLEVIS PIN,1/4" x 1.594"
|
CAS
clevis, 1/4" x 1-1/2"
|
| 12. |
700117198
|
[2] |
ROD
|
CAS
WA
|
| 13. |
409-7512
|
[2] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Superseded by part number: 145913, 72187186
|
| 14. |
700706805
|
[1] |
CABLE
|
CAS
ASSY.
|
| 15. |
700114675
|
[1] |
ANCHOR
|
CAS
cable
|
| 16. |
700117203
|
[2] |
HINGE
|
CAS
WA shield
|
| 17. |
706176
|
[4] |
SCREW
|
CAS
machine, cross recess truss head, 5/16"-18 x 3/4"
|
