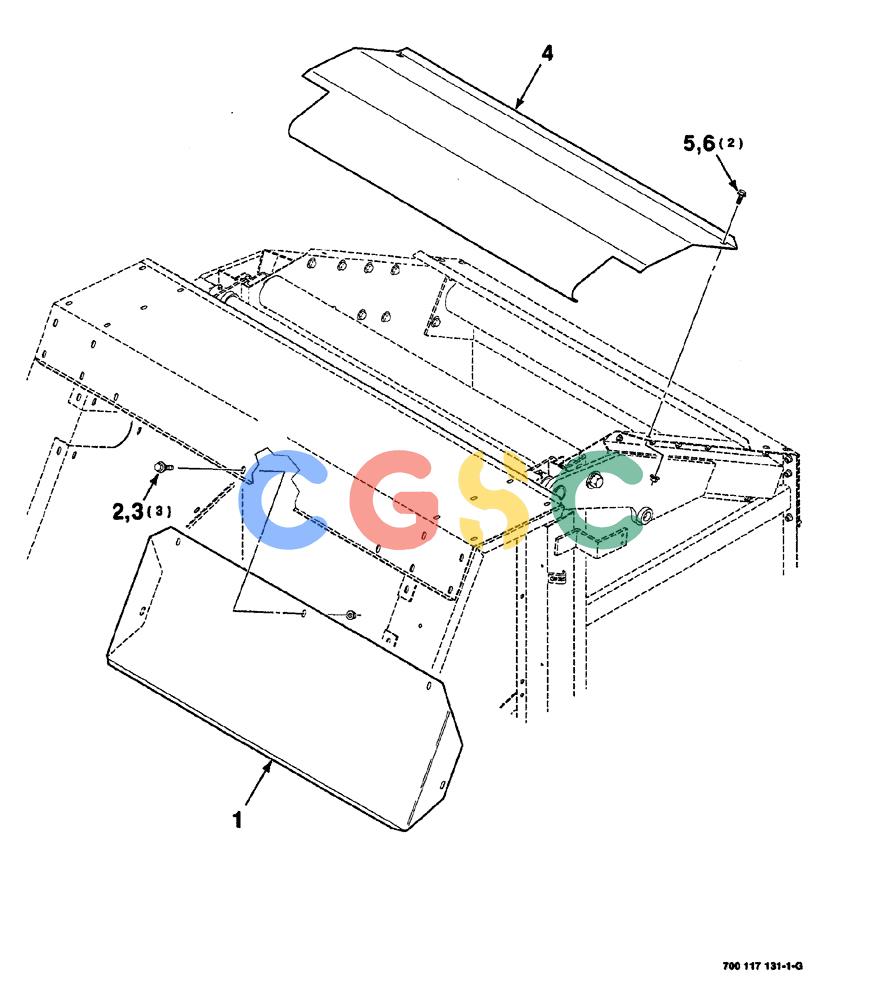

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (07-10) - SHIELDS ASSEMBLY (TOP) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700131856
|
[1] |
SHIELD
|
HFI
front
|
| 2. |
256873
|
[3] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 3. |
231-5145
|
[3] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 4. |
700117142
|
[1] |
SHIELD
|
HFI
roller, top
|
| 5. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 6. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
