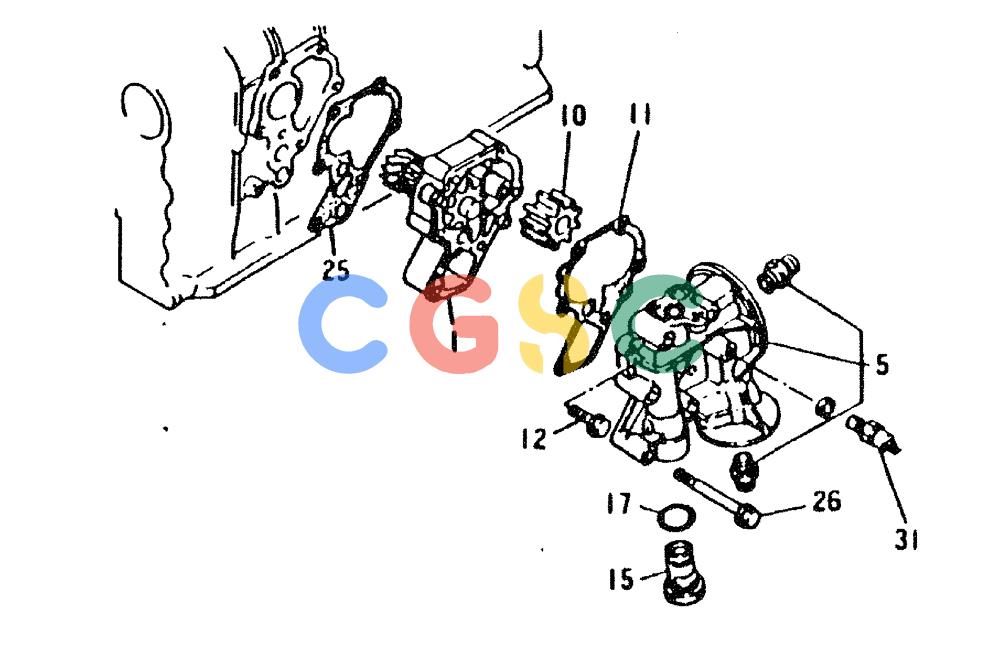

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (02-005) - OIL PUMP AND GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
969 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME018015 | [1] | BELT, TRANSMISSION OIL PUMP ASSY | BELT, TRANSMISSION OIL PUMP ASSY |
| 1. | VAME014462 | [1] | OIL PUMP CASE ASSY | |
| 5. | VAME018016 | [1] | COVER ASSY | |
| 10. | VAME014457 | [1] | GEAR, DRIVEN | |
| 11. | VAME014455 | [1] | GASKET | KOBGASKET |
| 12. | VAMF140231 | [2] | BOLT | KOBBOLT, FLANGE 8 X 35 |
| 15. | VAME014471 | [1] | VALVE | KOBRELIEF VALVE ASSY |
| 17. | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 25. | VAME014456 | [1] | GASKET | KOBGASKET, OIL PUMP |
| 26. | VAMF140244 | [6] | BOLT | KOBBOLT, FLANGE 8 X 90 |
| 31. | VA3134001102 | [1] | ARARM ALARM, OIL BY-PASS | ARARM ALARM, OIL BY-PASS |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
