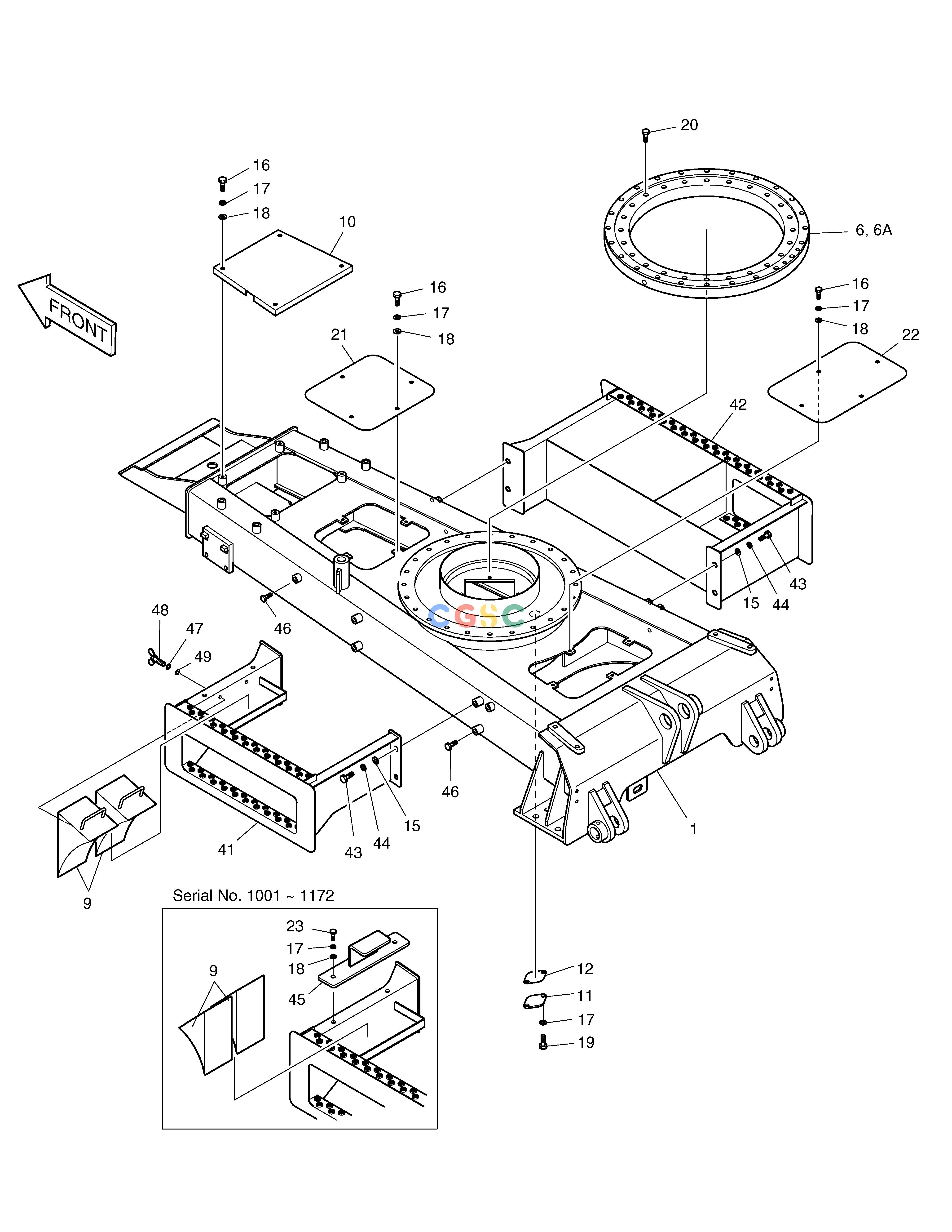

斗山零件查询CHASSIS COMPONENT B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
148 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230-00063A
|
[-] |
CHASSIS COMPONENT
|
|
| -. |
230-00063
|
[-] |
CHASSIS COMPONENT
|
|
| 1. |
603-00294A
|
[1] |
FRAME;CHASSIS
|
603-00294G
|
| 1. |
603-00294G
|
[1] |
FRAME;CHASSIS
|
|
| 10. |
621-02429
|
[1] |
COVER
|
|
| 11. |
2403-1065A
|
[1] |
COVER
|
|
| 12. |
2180-1227A
|
[1] |
PACKING
|
|
| 15. |
2114-1058D2
|
[20] |
WAHSER
|
|
| 16. |
S0511553
|
[12] |
BOLT M10X1.5X14
|
|
| 17. |
S5102603
|
[16] |
. WASHER
|
|
| 17. |
S5102603
|
[14] |
. WASHER
|
|
| 18. |
2114-1058D1
|
[14] |
WASHER
|
|
| 18. |
2114-1058D1
|
[12] |
WASHER
|
|
| 19. |
S0511853
|
[2] |
BOLT
|
|
| 20. |
S0565961
|
[24] |
BOLT M16X2.0X85
|
|
| 21. |
621-02430
|
[1] |
COVER
|
|
| 22. |
621-02431
|
[1] |
COVER
|
|
| 23. |
S0512053
|
[2] |
BOLT
|
|
| 41. |
625-00131A
|
[1] |
STEP (L.H)
|
625-00131B
|
| 41. |
625-00131B
|
[1] |
STEP (L.H)
|
|
| 41. |
625-00131C
|
[1] |
STEP (L.H)
|
|
| 42. |
625-00132A
|
[1] |
STEP (R.H)
|
625-00132B
|
| 42. |
625-00132B
|
[1] |
STEP (R.H)
|
|
| 42. |
625-00132C
|
[1] |
STEP (R.H)
|
|
| 43. |
S0521256
|
[8] |
BOLT M16X2.0X30
|
|
| 44. |
S5102903
|
[8] |
WASHER
|
|
| 45. |
195-02403
|
[1] |
BRACKET
|
|
| 46. |
S0520856
|
[12] |
BOLT M16X2.0X20
|
|
| 47. |
S5102603
|
[2] |
. WASHER
|
|
| 48. |
S3056203
|
[2] |
BOLT;WING
|
|
| 49. |
2114-1058D1
|
[2] |
WASHER
|
|
| 6. |
2109-9072A
|
[1] |
BEARING;SWING
|
|
| 6A. |
180-00297D2
|
[2] |
SEAL
|
|
| 9. |
542-00001
|
[2] |
CHOCK;WHEEL
|
542-00001A
|
| 9. |
542-00001A
|
[2] |
CHOCK;WHEEL
|
|
