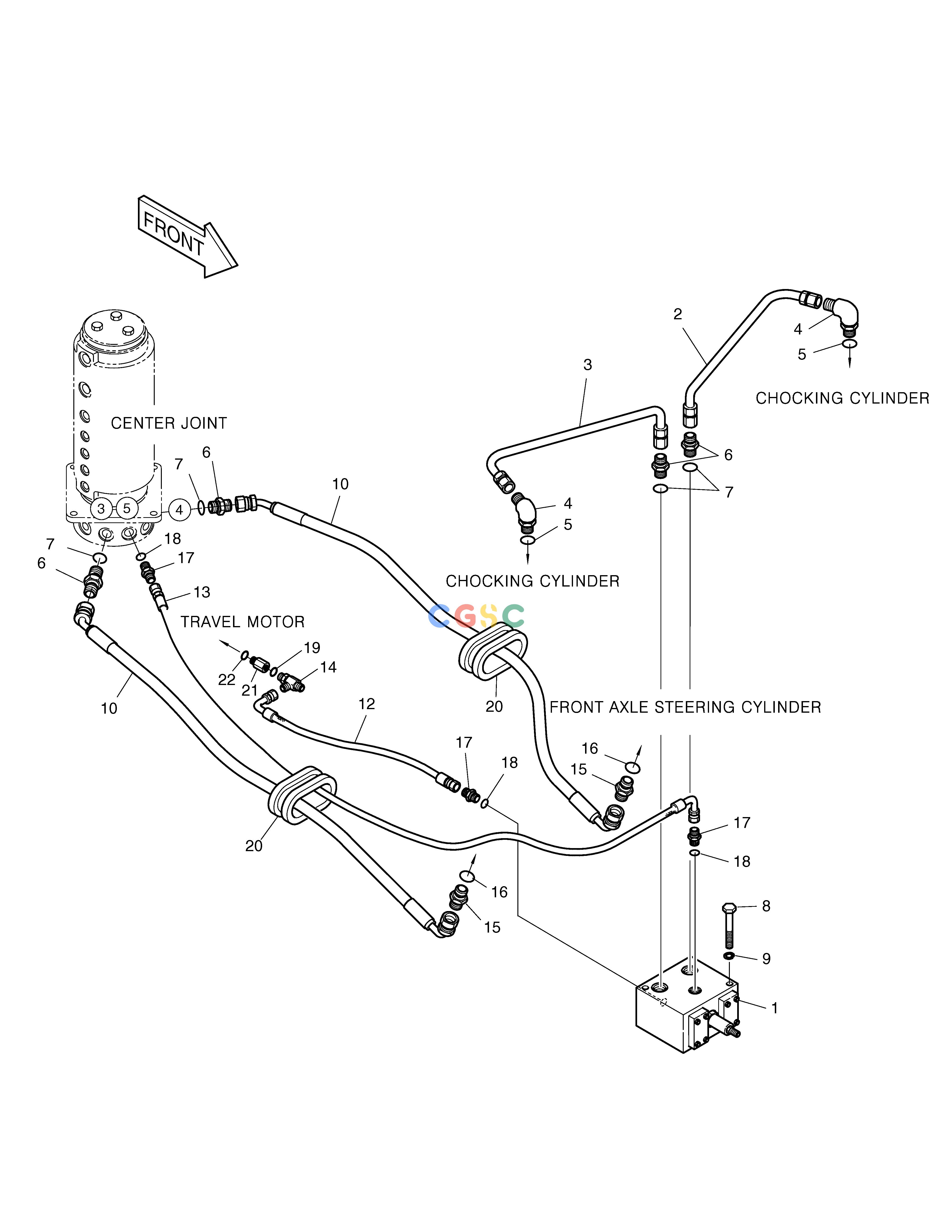

斗山零件查询CHOCKING & STEERING PIPING B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
422 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00312
|
[-] |
PIPING;CHOCKING & STEERING
|
|
| 1. |
2423-9007A
|
[1] |
VALVE;CHOCKING
|
|
| 10. |
2184-1071D60
|
[2] |
HOSE
|
|
| 12. |
2184-1046D198
|
[1] |
HOSE PF1/4-400L
|
|
| 13. |
2184-1046D163
|
[1] |
HOSE PF1/4-1330L
|
|
| 14. |
2181-1951D25
|
[1] |
TEE
|
|
| 15. |
2181-1917D1
|
[2] |
ADAPTER
|
|
| 16. |
S8180291
|
[2] |
PACKING M18
|
|
| 17. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 18. |
S8000111
|
[3] |
O-RING
|
|
| 19. |
S8180351
|
[1] |
SEAL;COPPER
|
|
| 2. |
2193-1460A
|
[1] |
PIPE
|
|
| 20. |
2160-1004D34
|
[2] |
BUSHING,RUBBER
|
|
| 21. |
DS2242016
|
[1] |
REDUCER
|
|
| 22. |
S8000241
|
[1] |
O-RING
|
|
| 3. |
2193-1459A
|
[1] |
PIPE
|
|
| 4. |
2181-1702D67
|
[2] |
ELBOW
|
|
| 5. |
2180-1026D13
|
[2] |
O-RING
|
|
| 6. |
2181-1126D7
|
[4] |
ADAPTER
|
|
| 7. |
S8000141
|
[4] |
O-RING
|
|
| 8. |
S0556953
|
[2] |
BOLT M8X1.25X80
|
|
| 9. |
S5102503
|
[2] |
. WASHER
|
|
