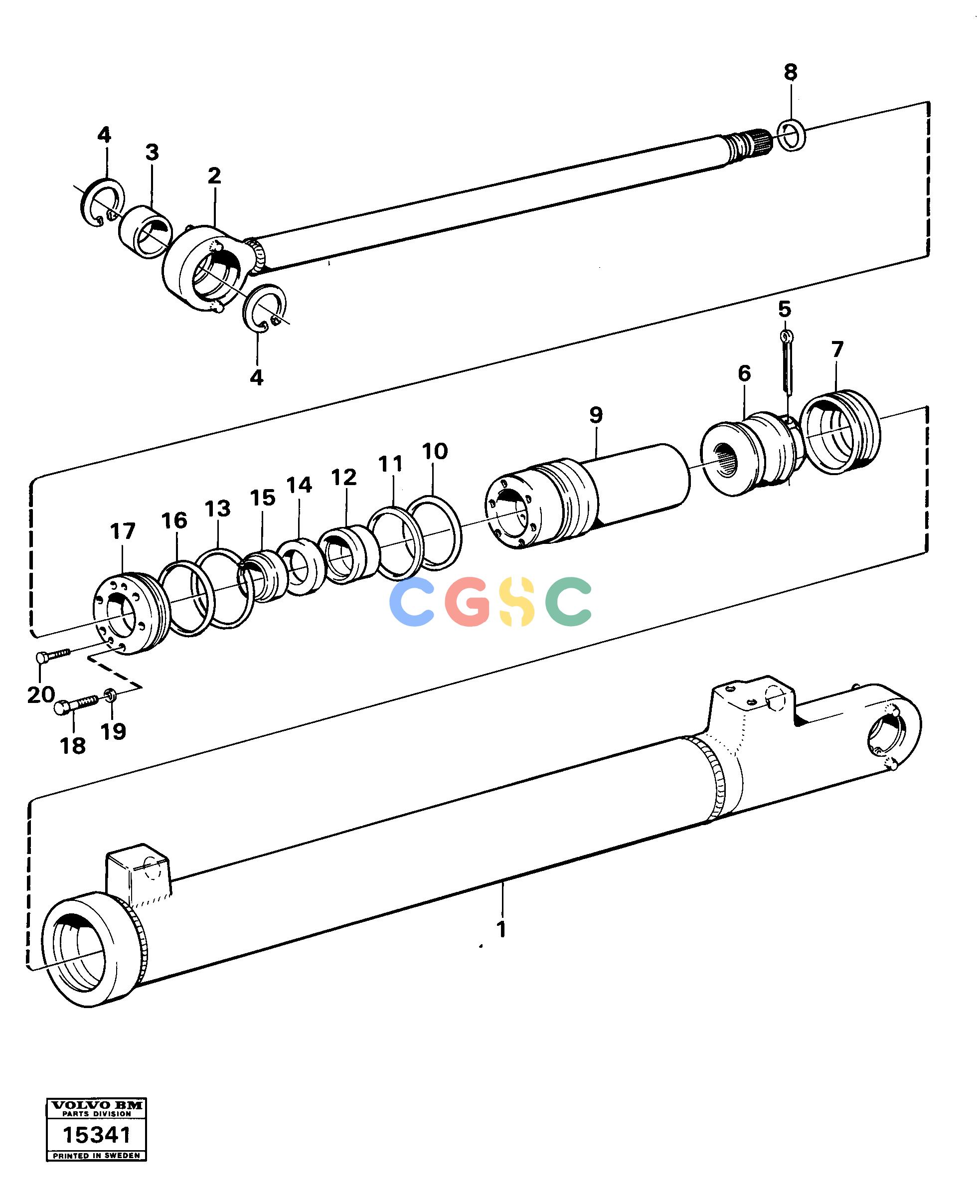

沃尔沃零件查询4300 Hydraulic cylinder tilting43004782256-4782898NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE4784202
|
[0001] |
Piston rod
|
|
| 3. |
VOE795839
|
[0002] |
Spherical plain bearing
|
|
| |
VOE184428
|
|
Spherical plain bearing
|
|
| 4. |
VOE914533
|
[0004] |
Retaining ring
|
|
| |
VOE4782256
|
[0001] |
Tilt Cylinder
|
|
| 5. |
VOE907893
|
[0001] |
Split pin
|
|
| |
VOE4782719
|
|
Spring pin
|
|
| 6. |
VOE4782099
|
[0001] |
Piston
|
|
| 7. |
VOE4833025
|
[0001] |
Seal
|
|
| 8. |
VOE13960175
|
[0001] |
O-ring
|
|
| 9. |
VOE4782608
|
[0001] |
Piston rod guide
|
|
| |
VOE4782897
|
|
Piston rod guide
|
|
| 10. |
VOE925079
|
[0001] |
O-ring
|
|
| 11. |
VOE4786834
|
[0001] |
Back-up ring
|
|
| 12. |
VOE4784045
|
[0001] |
Piston rod seal
|
|
| |
VOE4782898
|
|
Hydraulic cylinder
|
|
| 13. |
VOE4782472
|
[0001] |
Locking wire
|
|
| 14. |
VOE4782607
|
[0001] |
Spacer ring
|
|
| |
VOE4784037
|
[1] |
Spacer ring
|
|
| 15. |
VOE11005053
|
[1] |
Scraper ring
|
|
| 16. |
VOE13960235
|
[1] |
O-ring
|
|
| 17. |
VOE4782268
|
[1] |
Lock washer
|
|
| 18. |
VOE927693
|
[6] |
Lock screw
|
|
| |
VOE4782857
|
|
Screw
|
|
| 19. |
VOE13941907
|
[6] |
Washer
|
|
| |
VOE941908
|
|
Spring washer
|
|
| 1. |
VOE4782265
|
[0001] |
Cylinder tube
|
|
| 20. |
VOE940199
|
[2] |
Hexagon screw
|
|
| |
VOE6630391
|
[1] |
Gasket Kit
|
|
| |
VOE6630564
|
[1] |
Gasket kit
|
|
| |
VOE4782895
|
|
Casing
|
|
