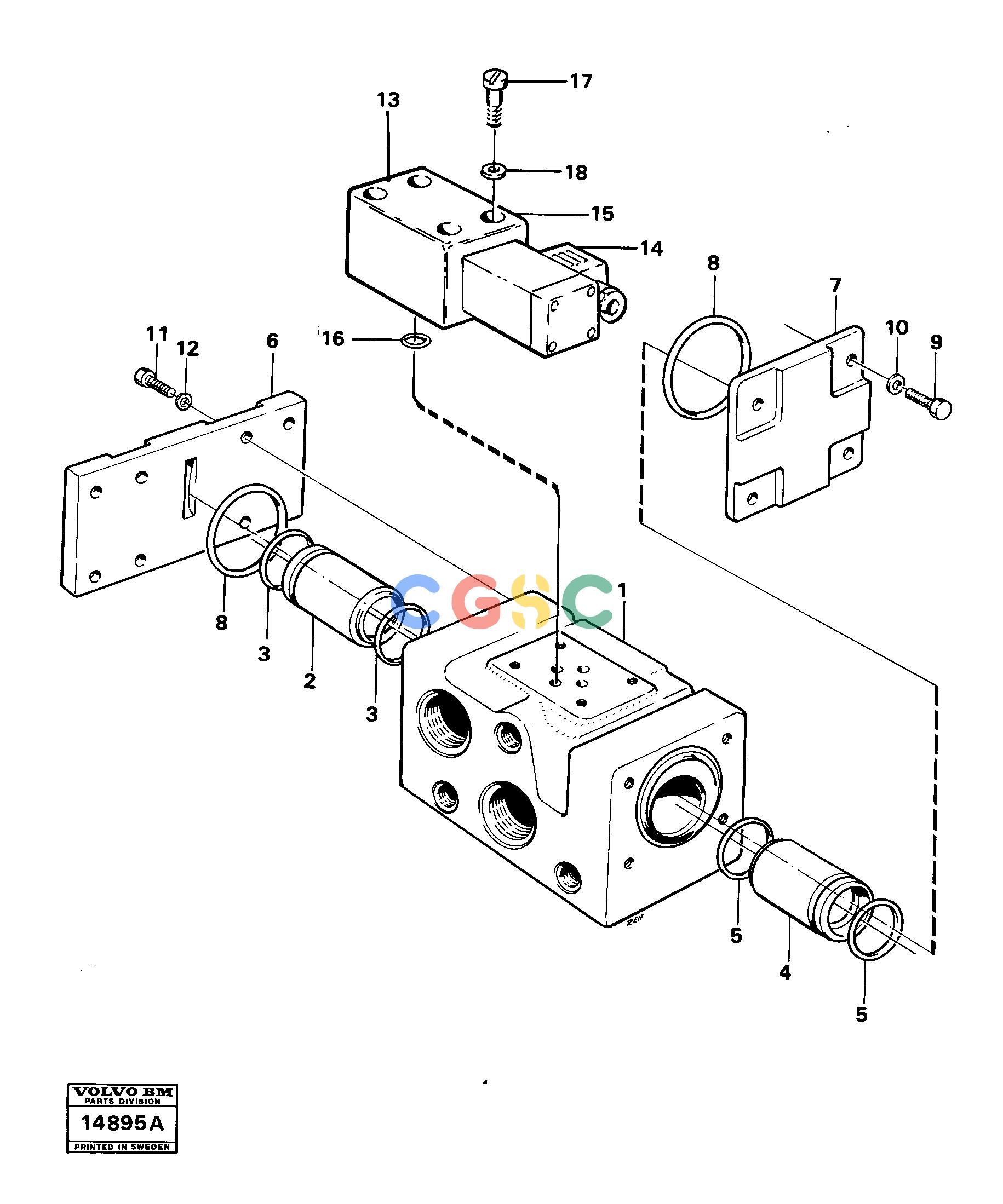

沃尔沃零件查询4300 Valve section43004850746-4851951NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
|
[0001] |
Sleeve
|
|
| |
|
[0001] |
Spring
|
|
| 3. |
VOE946909
|
[0002] |
O-ring
|
|
| |
VOE4850744
|
[0001] |
Valve
|
|
| 4. |
|
[0001] |
Sleeve
|
|
| |
VOE4851951
|
[0001] |
Valve
|
|
| |
|
[0001] |
Spring
|
|
| 5. |
VOE946909
|
[0002] |
O-ring
|
|
| 6. |
|
[0001] |
Cover
|
|
| 7. |
|
[0001] |
Cover
|
|
| 8. |
VOE1664473
|
[0002] |
O-ring
|
|
| 9. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 10. |
VOE941908
|
[0004] |
Spring washer
|
|
| 11. |
VOE970945
|
[0004] |
Hexagon screw
|
|
| 12. |
VOE941908
|
[0004] |
Spring washer
|
|
| 13. |
VOE4787242
|
|
Solenoid valve
|
|
| |
VOE4851951
|
|
Valve
|
|
| 14. |
VOE6213469
|
|
Connector
|
|
| 15. |
VOE6621170
|
|
Magnet
|
|
| 16. |
VOE6643961
|
|
Sealing Kit
|
|
| 17. |
VOE959193
|
|
Hex. socket screw
|
|
| 18. |
VOE955946
|
|
Toothed washer
|
|
| 1. |
|
[0001] |
Housing
|
|
| |
VOE4850745
|
[0001] |
Valve
|
|
