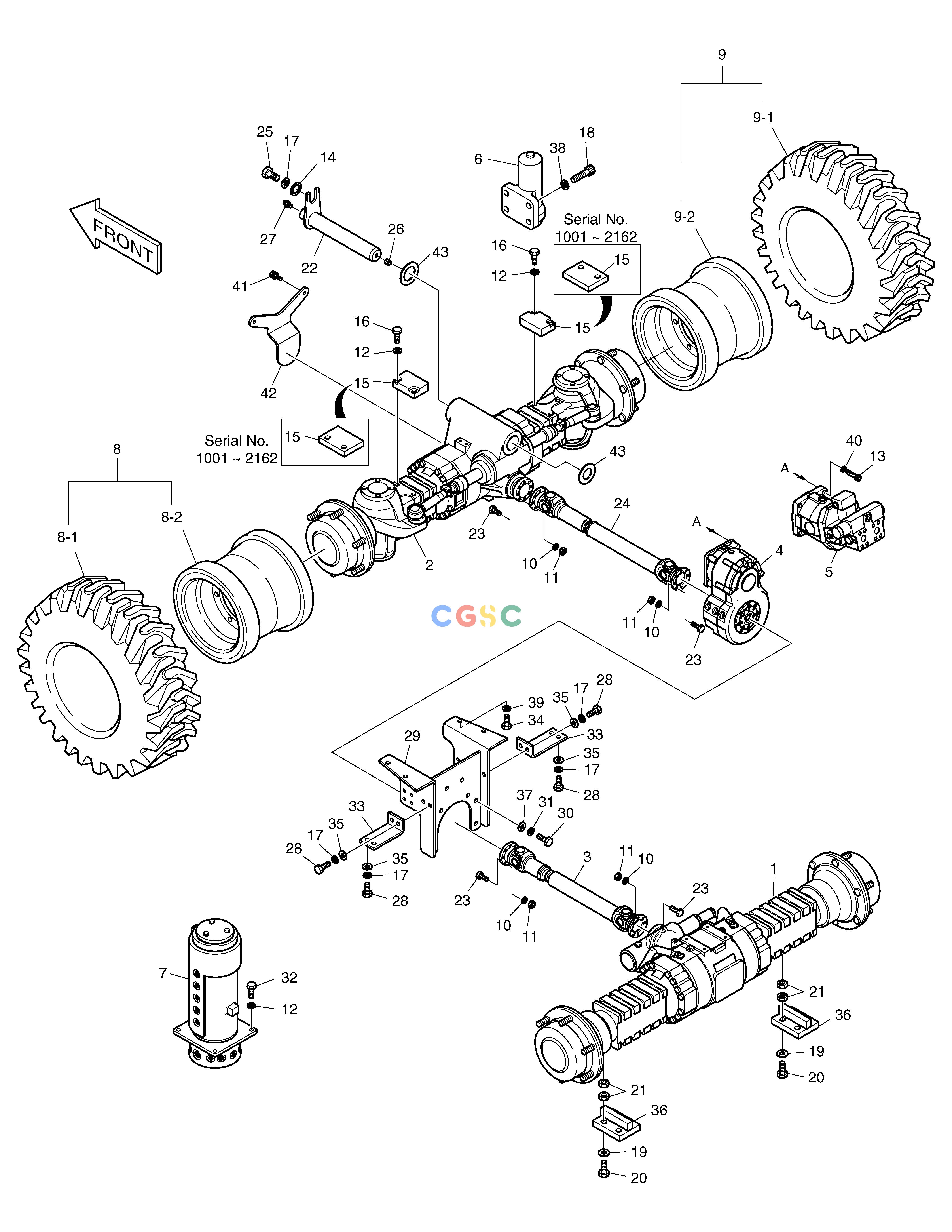

斗山零件查询POWER TRAIN B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
200-00024B
|
[-] |
TRAIN;POWER
|
|
| 1. |
220-00043
|
[1] |
AXLE;REAR
|
|
| 1. |
220-00043A
|
[1] |
AXLE;REAR
|
|
| 10. |
S5110603
|
[32] |
WASHER
|
|
| 11. |
2121-1251
|
[32] |
NUT M10X1.0
|
|
| 12. |
S5102703
|
[8] |
WASHER
|
|
| 13. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 14. |
2116-1060D7
|
[1] |
STOPPER
|
|
| 15. |
162-00001A
|
[2] |
PAD;CHOCK
|
|
| 15. |
162-00001B
|
[2] |
PAD;CHOCK
|
162-00001C
|
| 15. |
162-00001C
|
[2] |
PAD;CHOCK
|
|
| 16. |
S0560863
|
[4] |
BOLT
|
|
| 16. |
S0560666
|
[4] |
BOLT
|
|
| 17. |
S5102903
|
[9] |
WASHER
|
|
| 18. |
S2221466
|
[8] |
BOLT;SOCKET M16X2.0X40
|
|
| 19. |
2114-9012
|
[8] |
WASHER;HARDEN
|
|
| 2. |
220-00044
|
[1] |
AXLE;FRONT
|
|
| 2. |
220-00044A
|
[1] |
AXLE;FRONT
|
|
| 20. |
120-00145
|
[8] |
BOLT
|
|
| 21. |
S4013133
|
[16] |
NUT
|
|
| 22. |
2123-2393A
|
[1] |
PIN;PIVOT
|
|
| 22. |
2123-2393B
|
[1] |
PIN;PIVOT
|
|
| 23. |
2120-1339A
|
[32] |
BOLT M10X1.0X30
|
|
| 24. |
2260-9053A
|
[1] |
SHAFT;PROPELLING(F)
|
|
| 24. |
2260-9053B
|
[1] |
SHAFT;PROPELLING(F)
|
|
| 25. |
S0521366
|
[1] |
BOLT
|
|
| 26. |
2181-1117D1
|
[1] |
PLUG
|
|
| 27. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 28. |
S0521466
|
[8] |
BOLT
|
|
| 29. |
195-00414E
|
[1] |
SUPPORT
|
|
| 29. |
195-00414G
|
[1] |
SUPPORT
|
|
| 3. |
2260-9041A
|
[1] |
SHAFT;PROPELLING(R)
|
|
| 3. |
2260-9041B
|
[1] |
SHAFT;PROPELLING(R)
|
|
| 30. |
S0562766
|
[8] |
BOLT
|
|
| 31. |
S5102803
|
[8] |
WASHER
|
|
| 32. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 33. |
195-00416A
|
[2] |
SUPPORT
|
|
| 33. |
195-00416B
|
[2] |
SUPPORT
|
|
| 34. |
S0570166
|
[4] |
BOLT M20X2.5X65
|
|
| 35. |
S5010903
|
[8] |
WASHER;PLAIN
|
|
| 36. |
621-00506A
|
[2] |
PLATE
|
|
| 36. |
621-00506B
|
[2] |
PLATE
|
|
| 37. |
S5010803
|
[8] |
WASHER;PLAIN
|
|
| 38. |
S5110903
|
[8] |
WASHER
|
|
| 39. |
S5103103
|
[4] |
WASHER
|
|
| 4. |
210-00008
|
[1] |
TRANSMISSION
|
|
| 40. |
S5110603
|
[4] |
WASHER
|
|
| 41. |
2120-2196D11
|
[2] |
BOLT;SET M12X1.75X35
|
|
| 42. |
159-00303
|
[1] |
PLATE
|
|
| 43. |
2114-1059D183
|
[2] |
SHIM
|
|
| 5. |
401-00311
|
[1] |
MOTOR;TRAVEL
|
|
| 5. |
401-00311A
|
[1] |
MOTOR;TRAVEL
|
|
| 6. |
2440-9426B
|
[2] |
CYLINDER;CHOCKING
|
|
| 6. |
2440-9426C
|
[2] |
CHOCKING CYLINDER
|
2440-9426E
|
| 6. |
2440-9426E
|
[2] |
CHOCKING CYLINDER
|
|
| 7. |
2480-9026
|
[1] |
JOINT;CENTER
|
|
| 8. |
276-00016
|
[2] |
TIRE & WHEEL(L.H.)
|
|
| 8-1. |
2276-9031
|
[1] |
TIRE
|
|
| 8-2. |
278-00011
|
[1] |
WHEEL
|
|
| 8-3. |
2422-9024
|
[1] |
VALVE;AIR
|
|
| 9. |
276-00017
|
[2] |
TIRE & WHEEL(R.H.)
|
|
| 9-1. |
2276-9031
|
[1] |
TIRE
|
|
| 9-2. |
278-00011
|
[1] |
WHEEL
|
|
| 9-3. |
2422-9024
|
[1] |
VALVE;AIR
|
|
