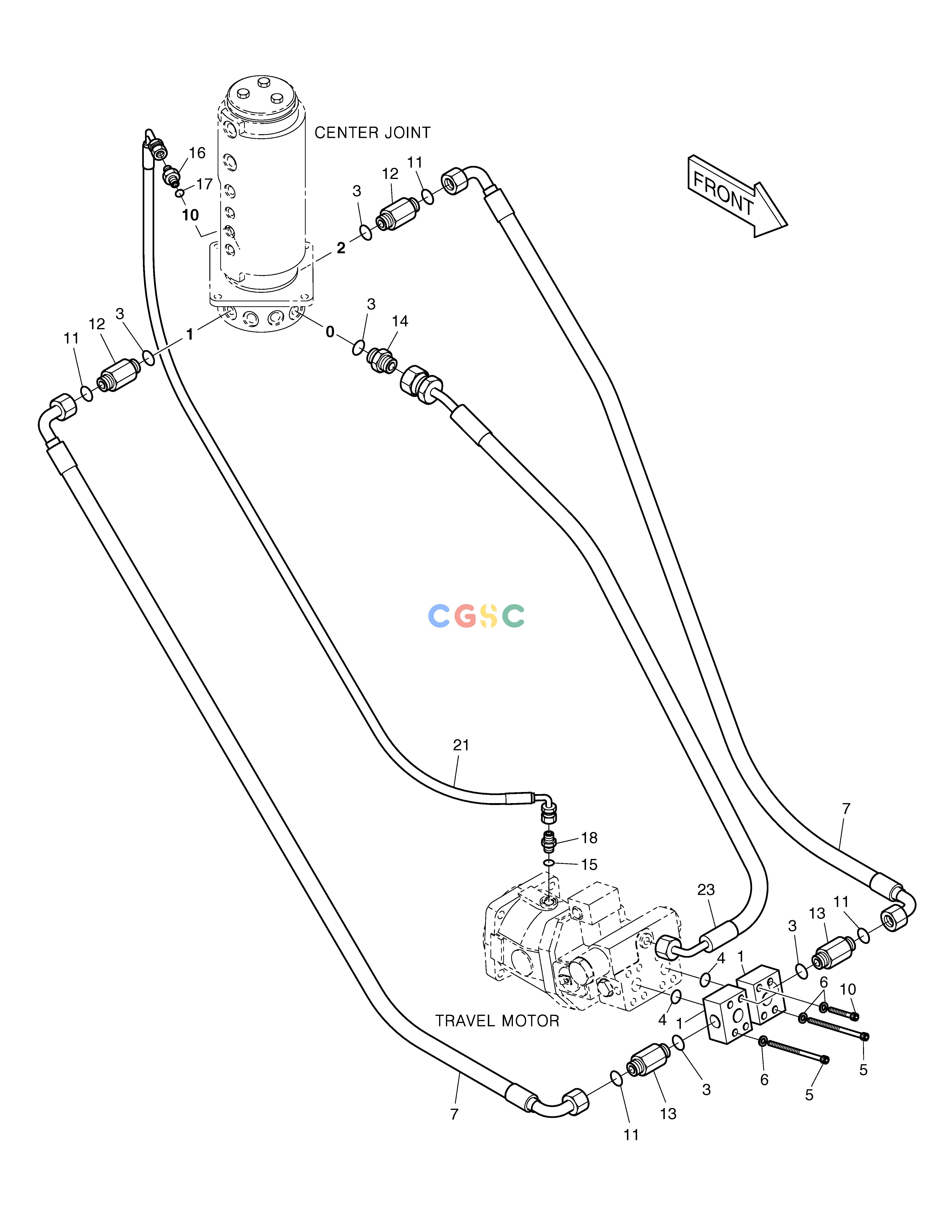

斗山零件查询PROPELLING PIPING B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
602 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00950
|
[-] |
PIPING;PROPELLING
|
|
| 1. |
423-00159
|
[2] |
BLOCK
|
|
| 10. |
S2215866
|
[2] |
BOLT;SOCKET M12X1.75X60
|
|
| 11. |
S8030121
|
[4] |
O-RING
|
|
| 12. |
2181-4133D31
|
[2] |
ADAPTER
|
|
| 13. |
2181-4133D13
|
[2] |
ADAPTER
|
|
| 14. |
2181-1126D1
|
[1] |
ADAPTER
|
|
| 15. |
S8180291
|
[1] |
PACKING M18
|
|
| 16. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 17. |
S8000141
|
[1] |
O-RING
|
|
| 18. |
2181-1917D1
|
[1] |
ADAPTER
|
|
| 21. |
2184-1096D124
|
[1] |
HOSE
|
|
| 23. |
DS2058238
|
[1] |
HOSE
|
|
| 3. |
S8000231
|
[5] |
O-RING
|
|
| 4. |
2180-1026D19
|
[2] |
O-RING
|
|
| 5. |
S2217266
|
[6] |
BOLT;SOCKET
|
|
| 6. |
S5110703
|
[8] |
WASHER
|
|
| 7. |
DS2023100
|
[2] |
HOSE
|
|
