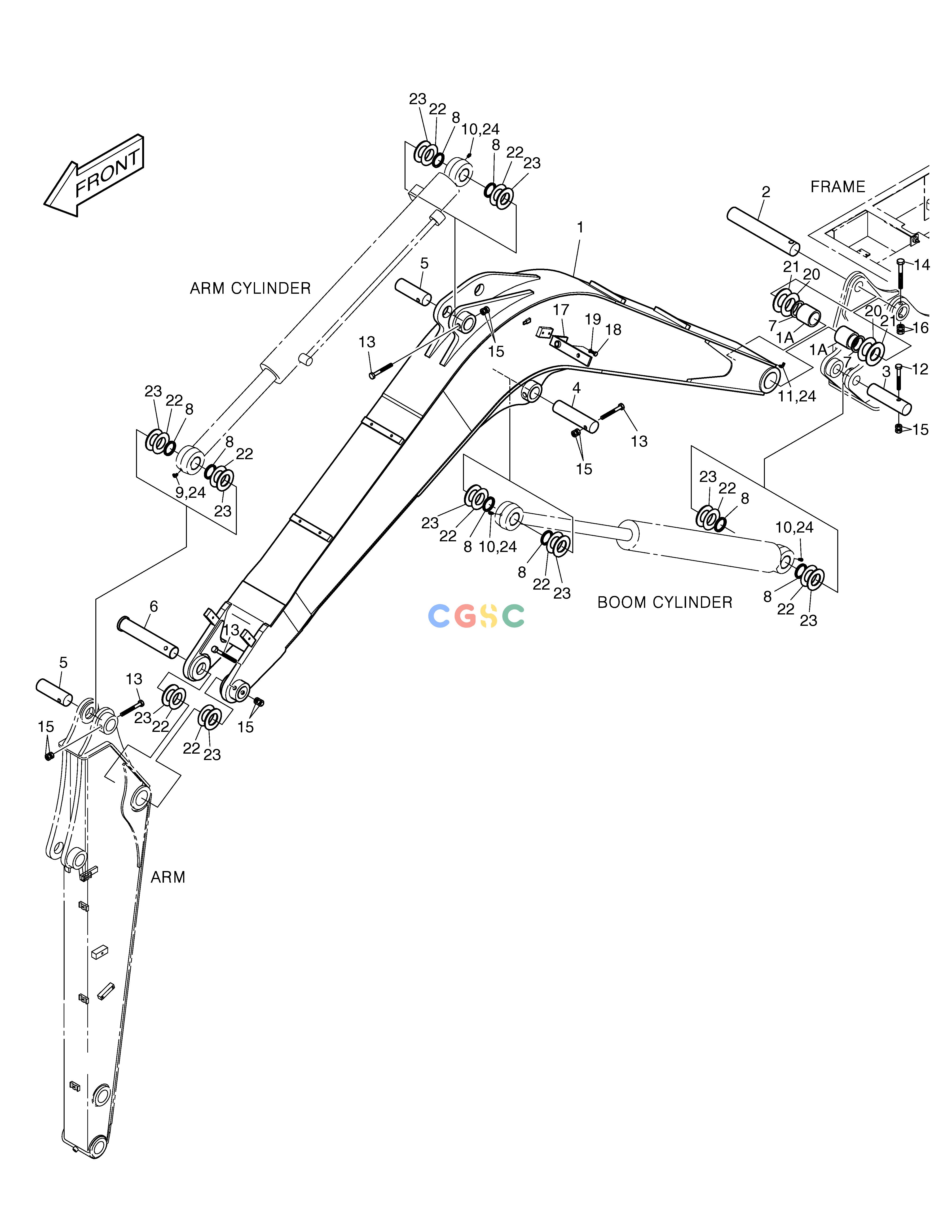

斗山零件查询BOOM-3.0m B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
701-00472
|
[-] |
BOOM
|
|
| 1. |
701-00473A
|
[1] |
BOOM SUB ASS'Y
|
701-00473C
|
| 1. |
701-00473C
|
[1] |
BOOM SUB ASS'Y
|
|
| 10. |
S6710041
|
[3] |
NIPPLE,GREASE
|
|
| 11. |
S6710100
|
[1] |
NIPPLE;GREASE
|
|
| 12. |
S0562053
|
[1] |
BOLT M12X1.75X115
|
|
| 13. |
S0561853
|
[4] |
BOLT M12X1.75X105
|
|
| 14. |
S0564353
|
[1] |
BOLT M14X120
|
|
| 15. |
S4012733
|
[10] |
NUT
|
|
| 16. |
S4012833
|
[2] |
NUT
|
|
| 17. |
2195Y3691A
|
[1] |
BRACKET;LAMP
|
|
| 18. |
S0508613
|
[2] |
BOLT M8X1.25X16
|
|
| 19. |
S5102503
|
[2] |
. WASHER
|
|
| 1A. |
110-00130
|
[2] |
BUSHING
|
|
| 2. |
123-00364
|
[1] |
PIN
|
|
| 20. |
2114-1059D143
|
[2] |
SHIM
|
|
| 21. |
2114-1059D144
|
[2] |
SHIM
|
|
| 22. |
2114-1059D263
|
[10] |
SHIM
|
|
| 23. |
2114-1059D264
|
[10] |
SHIM
|
|
| 24. |
160-00020
|
[5] |
CAP
|
|
| 3. |
123-00365
|
[1] |
PIN
|
|
| 4. |
2123-2251C
|
[1] |
PIN
|
|
| 5. |
2123-2250A
|
[1] |
PIN
|
|
| 6. |
2123-2252A
|
[1] |
PIN
|
|
| 7. |
2180-1106BD8
|
[2] |
SEAL;DUST
|
|
| 8. |
2180-1106BD12
|
[8] |
SEAL;DUST
|
|
| 9. |
S6710150
|
[1] |
NIPPLE;GREASE
|
|
