斗山零件查询FRONT PIPING B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

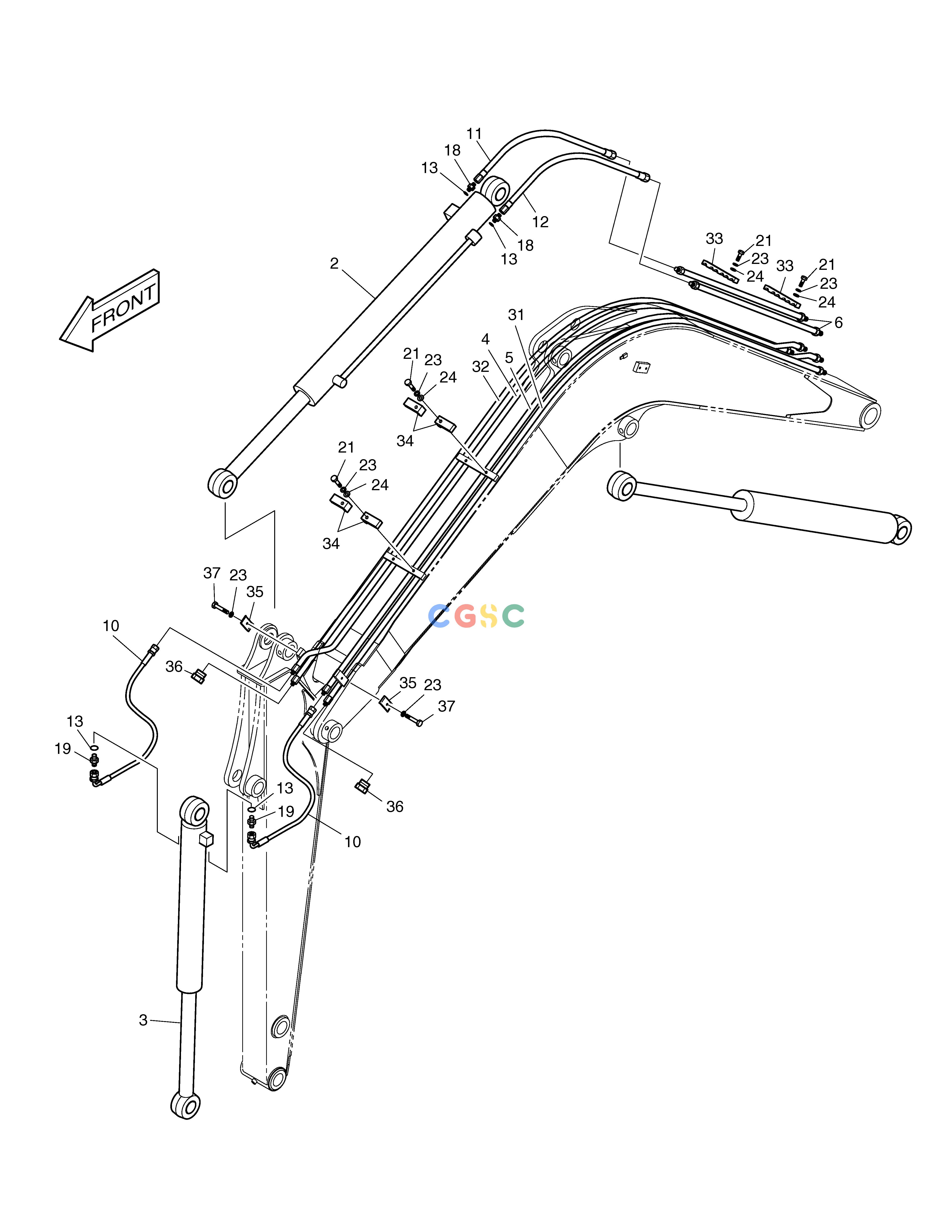

400-01259
|
[-] |
FRONT PIPING ASS'Y
|
|
| 10. |
DS2055706
|
[2] |
HOSE
|
|
| 11. |
2184-1026D108
|
[1] |
HOSE PF1/2-720L
|
|
| 12. |
2184-1026D280
|
[1] |
HOSE
|
|
| 13. |
S8000181
|
[6] |
O-RING
|
|
| 18. |
2181-1126D6
|
[4] |
ADAPTER
|
|
| 19. |
2181-1126D33
|
[2] |
ADAPTER
|
|
| 2. |
440Y00378
|
[1] |
CYLINDER;ARM
|
|
| 21. |
S0558553
|
[10] |
BOLT;HEX.
|
|
| 23. |
S5102603
|
[12] |
. WASHER
|
|
| 24. |
S5010613
|
[10] |
WASHER
|
|
| 3. |
440Y00198A
|
[1] |
CYLINDER;BUCKET
|
|
| 31. |
140Y01387
|
[1] |
PIPE (AUX IN)
|
|
| 32. |
140Y01388
|
[1] |
PIPE (AUX OUT)
|
|
| 33. |
124-00283
|
[2] |
CLAMP;PIPE
|
|
| 34. |
124-00284
|
[4] |
CLAMP;PIPE
|
|
| 35. |
124-00282
|
[2] |
CLAMP;PIPE
|
|
| 36. |
2181-2820D4
|
[2] |
PLUG
|
|
| 37. |
S0558753
|
[2] |
BOLT M10X1.5X60
|
|
| 4. |
140Y01326
|
[1] |
PIPE
|
|
| 5. |
140Y01327
|
[1] |
PIPE
|
|
| 6. |
140Y01328
|
[2] |
PIPE
|
|
