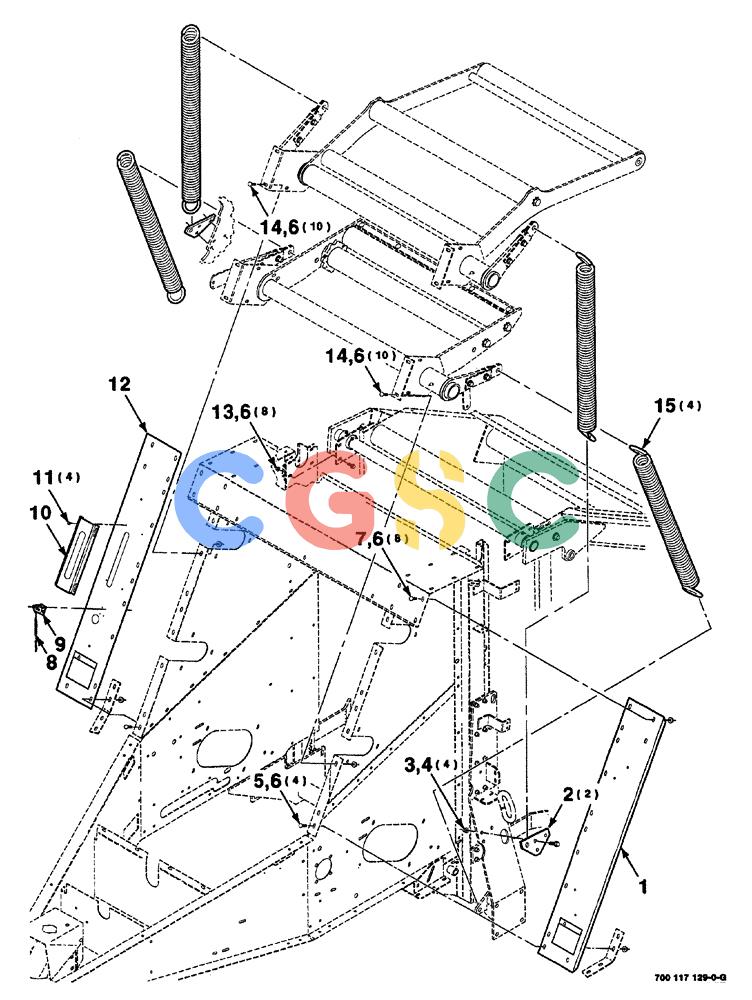

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (06-12) - ROLLER TIGHTENER MOUNTING ASSEMBLY (UPPER AND LOWER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117186
|
[1] |
FLANGE
|
CAS
front, left
|
| 2. |
700101722
|
[2] |
QUICK MALE COUPLING
|
HFI
ANCHOR
|
| 3. |
409-7820
|
[4] |
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
|
CAS
hex flange serrated, 1/2"-13 x 1-1/2" Superseded by part number: 84209
|
| 4. |
231-5148
|
[4] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 5. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 6. |
231-5146
|
[40] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
434-612
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
round head short square neck, 3/8"-16 x 3/4" Superseded by part number: 86508748
|
| 8. |
7058993
|
[1] |
SPRING
|
CAS
extension
|
| 9. |
7894470
|
[1] |
COUNTER
|
CAS
bale
|
| 10. |
700117175
|
[1] |
SUPPORT
|
HFI
gauge
|
| 11. |
281-1478
|
[4] |
SELF-TAP SCREW,1/4" - 20 x 1/2"
|
CAS
hex washer head thread cutting tapping, 1/4"-20 x 1/2"
|
| 12. |
700117187
|
[1] |
FLANGE
|
CAS
front, right
|
| 13. |
409-7616
|
[8] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 14. |
434-616
|
[20] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 15. |
7058910
|
[4] |
SPRING
|
L
extension
|
