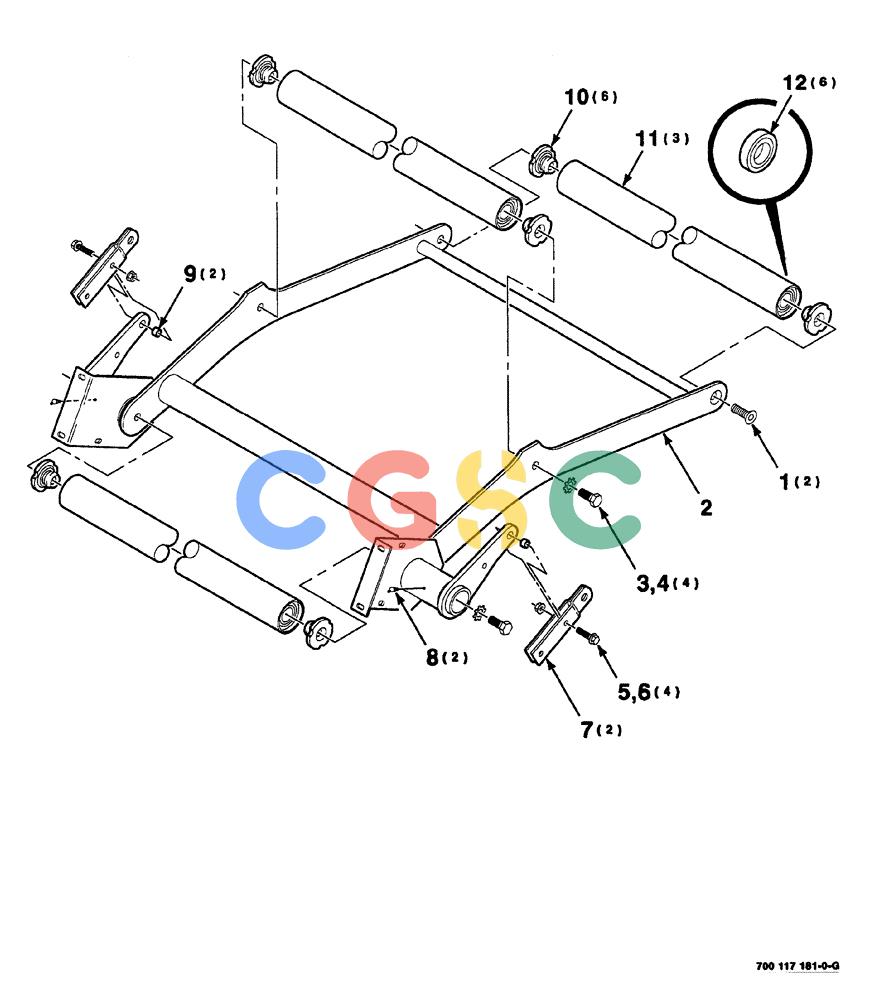

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (06-14) - TIGHTENER ROLLERS ASSEMBLY (UPPER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707981
|
[2] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
cap, hex socket flat countersunk head, 3/4"-10 x 1-3/4"
|
| 2. |
700117182
|
[1] |
ARM
|
CAS
FRAME, WA idler
|
| 3. |
413-1228
|
[4] |
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 88725
|
| 4. |
493-41078
|
[4] |
LOCK WASHER,Ext Tooth, 3/4"
|
CAS
lock, external tooth, 3/4" Superseded by part number: 86512914
|
| 5. |
7701865
|
[4] |
BOLT,Flange, 1/2" - 13 x 1 3/4", SPL
|
HFI
SCREW hex flange serrated, 1/2"-13 x 2"
|
| 6. |
231-5148
|
[4] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 7. |
700101645
|
[2] |
QUICK MALE COUPLING
|
HFI
ANCHOR, WA
|
| 8. |
219-90
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
ZERK, 1/4"-28 x 45° Superseded by part number: 87569
|
| 9. |
437640
|
[2] |
BUSHING,12.95mm ID x 19.05mm OD x 12.7mm L
|
CAS
SPACER
|
| 10. |
700100927
|
[6] |
HUB
|
L
roller
|
| 11. |
700101637
|
[3] |
CONVEYOR ROLLER
|
L
TUBE ASSY. idler, Includes: Ref. 12
|
| 12. |
8050825
|
[6] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
