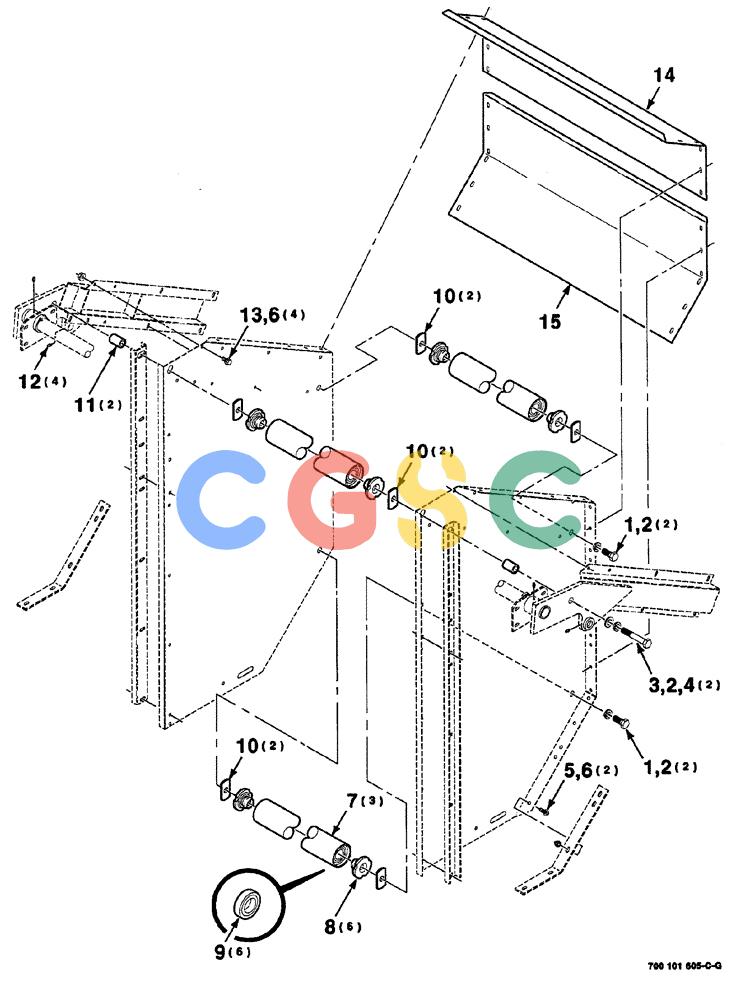

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (05-04) - TAILGATE ASSEMBLY (S/N CFH0010500 THRU CFH0054742 ) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-1228
|
[4] |
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 88725
|
| 2. |
492-11075
|
[6] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 3. |
413-1272
|
[2] |
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
|
CAS
SCREW hex cap, 3/4"-10 x 4-1/2" Superseded by part number: 88007
|
| 4. |
705566
|
[2] |
WASHER
|
IH
hardened plain, 3/4"
|
| 5. |
409-7616
|
[2] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 6. |
231-5146
|
[6] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
700101606
|
[3] |
CONVEYOR ROLLER
|
L
ASSY., Includes: Ref. 9
|
| 8. |
700100927
|
[6] |
HUB
|
L
roller
|
| 9. |
8050825
|
[6] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 10. |
700101588
|
[6] |
SPACER
|
CAS
SPACER
|
| 11. |
6288963
|
[2] |
SPACER
|
HFI
|
| 12. |
219-8
|
[4] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 13. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 14. |
700101628
|
[1] |
PANEL
|
HFI
SHIELD upper
|
| 15. |
700153937
|
[1] |
PANEL ASSY. lower, includes decals
|
|
