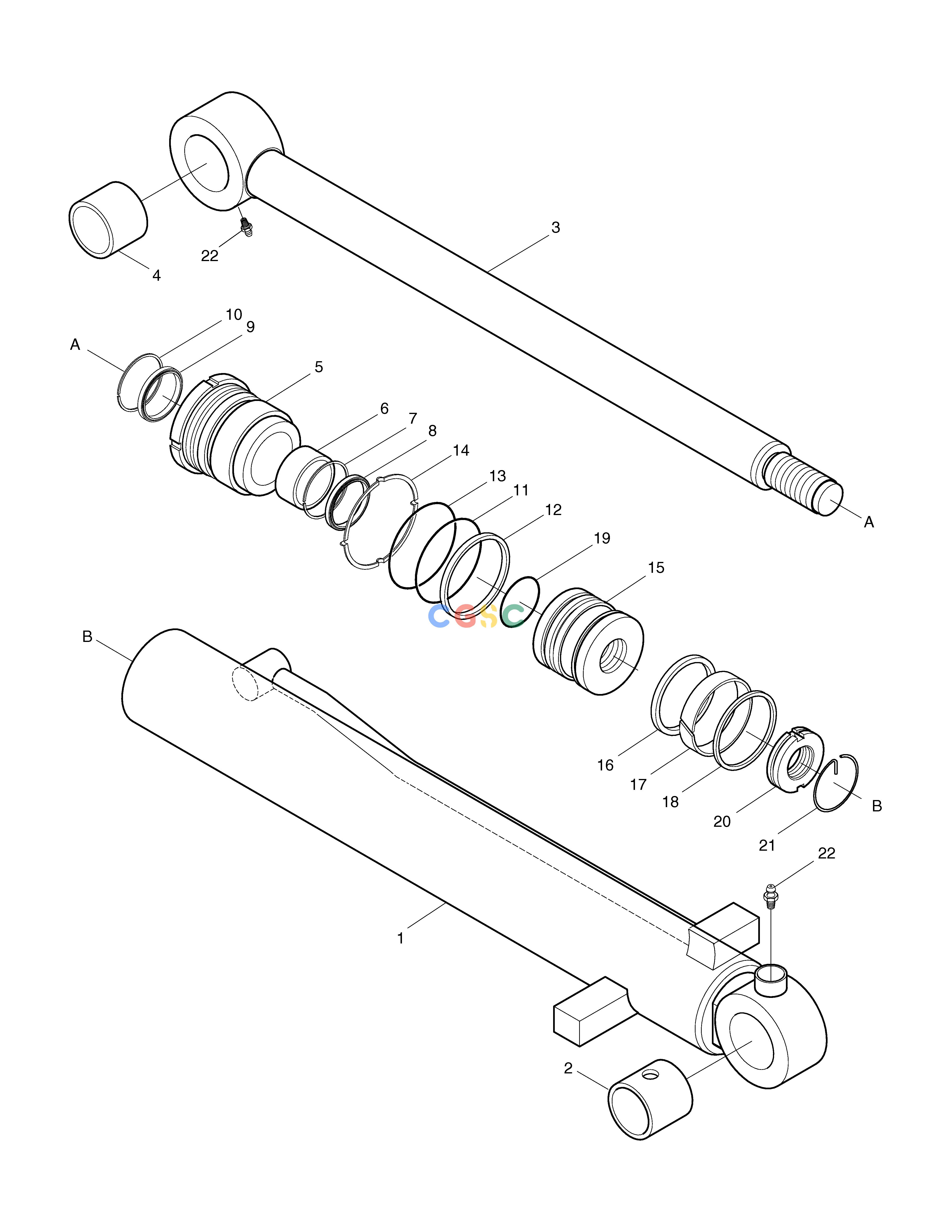

斗山零件查询BUCKET CYLINDER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
448 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-6127AK
|
[1] |
SEAL KIT;BOOM CYL
|
|
| -. |
440-00198A
|
[1] |
CYLINDER;BUCKET
|
|
| 1. |
53U577-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
00M378-0
|
[1] |
RING;RETAINING
|
|
| 11. |
E6311421
|
[1] |
O-RING
|
|
| 12. |
E6651410
|
[1] |
RING;BACK UP
|
|
| 13. |
E6311441
|
[1] |
O-RING
|
|
| 14. |
03B563-1
|
[1] |
WASHER
|
|
| 15. |
03U608-0
|
[1] |
PISTION
|
|
| 16. |
E5150360
|
[1] |
RING;GLYD
|
|
| 17. |
00W231-0
|
[1] |
RING;WEAR
|
|
| 18. |
00S465-0
|
[1] |
RING;DUST
|
|
| 19. |
E6311041
|
[1] |
O-RING 1BG50
|
|
| 2. |
00B114-0
|
[1] |
BUSH
|
|
| 20. |
00U313-0
|
[1] |
NUT;PISTON
|
|
| 21. |
00U314-0
|
[1] |
RING;LOCK
|
|
| 22. |
E8841022
|
[2] |
NIPPLE;GREASE
|
|
| 3. |
53U580-0
|
[1] |
ROD ASS'Y
|
|
| 4. |
00B114-0
|
[1] |
BUSH
|
|
| 5. |
03U609-1
|
[1] |
COVER;ROD
|
|
| 6. |
E8410151
|
[1] |
BUSH;DU
|
|
| 7. |
E6500850
|
[1] |
RING;BACK UP
|
|
| 8. |
E5301980
|
[1] |
U-PACKING
|
|
| 9. |
E6020140
|
[1] |
WIPER;DUST
|
|
