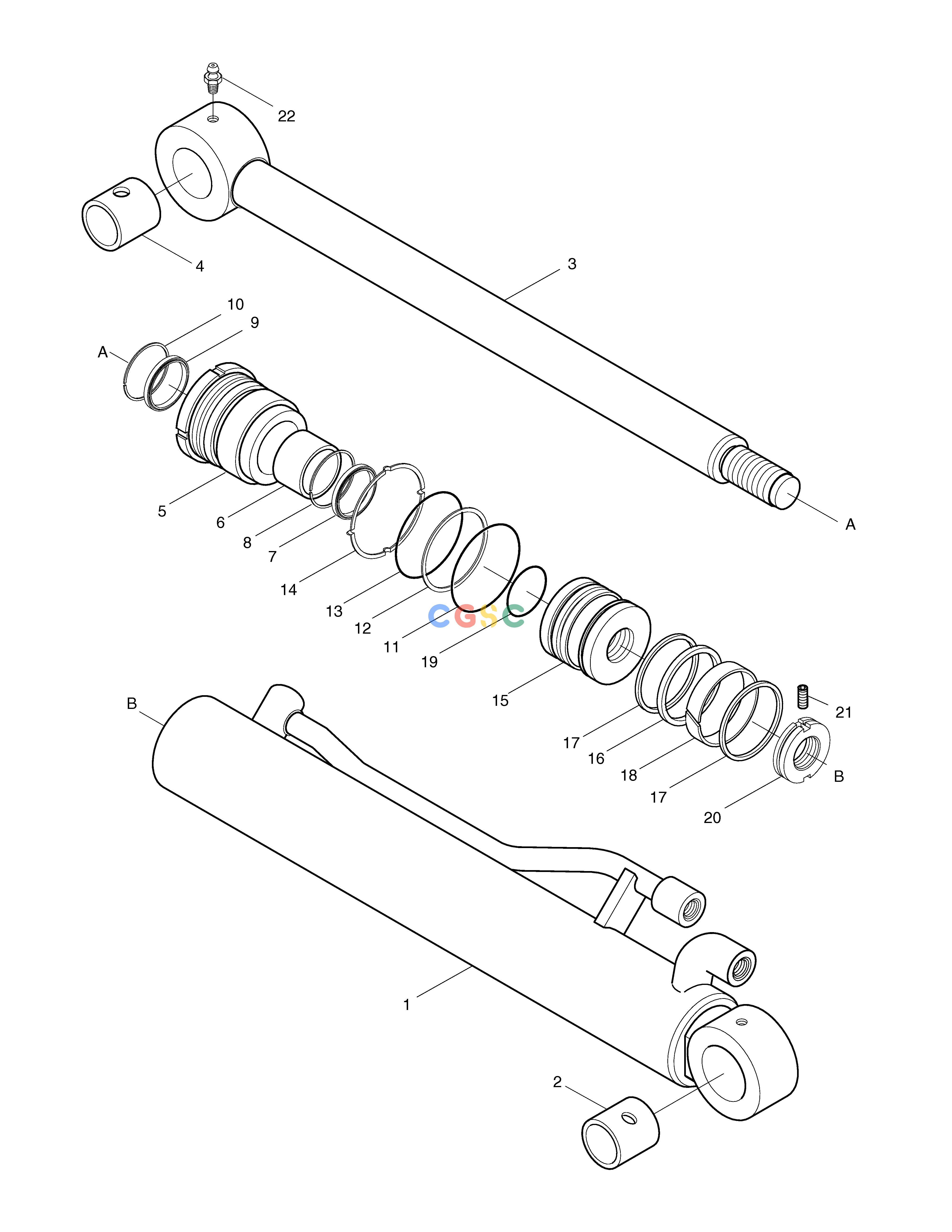

斗山零件查询BOOM SWING CYLINDER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9252KT
|
[1] |
SEAL KIT
|
|
| -. |
440-00377
|
[1] |
CYLINDER;BOOM SWING
|
|
| -. |
440-00377A
|
[1] |
CYLINDER;BOOM SWING
|
|
| 1. |
53S256-0
|
[1] |
TUBE ASS'Y
|
|
| 1. |
53S256-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
00M319-0
|
[1] |
RING;RETAINING
|
|
| 11. |
E6311561
|
[1] |
O-RING
|
|
| 12. |
E6651570
|
[1] |
RING;BACK UP
|
|
| 13. |
E6311581
|
[1] |
O-RING
|
|
| 14. |
03B679-0
|
[1] |
WASHER
|
|
| 15. |
53S278-0
|
[1] |
PISTON
|
|
| 16. |
E5150460
|
[1] |
RING;GLYD
|
|
| 17. |
00S471-0
|
[2] |
RING;DUST
|
|
| 18. |
00W246-0
|
[1] |
RING;WEAR
|
|
| 19. |
E6490087
|
[1] |
O-RING
|
|
| 2. |
00B116-0
|
[1] |
BUSH
|
|
| 20. |
53A376-1
|
[1] |
NUT;PISTON
|
|
| 21. |
E1330544
|
[1] |
SCREW;SET
|
|
| 22. |
E8841032
|
[2] |
NIPPLE;GREASE
|
|
| 3. |
53S262-0
|
[1] |
ROD ASS'Y
|
|
| 3. |
53S262-2
|
[1] |
ROD ASS'Y
|
|
| 4. |
00B115-0
|
[1] |
BUSH
|
|
| 5. |
53S265-0
|
[1] |
COVER;ROD
|
53S265-1
|
| 5. |
53S265-1
|
[1] |
COVER;ROD
|
|
| 6. |
E8410154
|
[1] |
BUSH;DU
|
|
| 7. |
E5302110
|
[1] |
PACKING;U
|
|
| 8. |
E6500910
|
[1] |
RING;BACK-UP
|
|
| 9. |
E6020160
|
[1] |
WIPER;DUST
|
|
