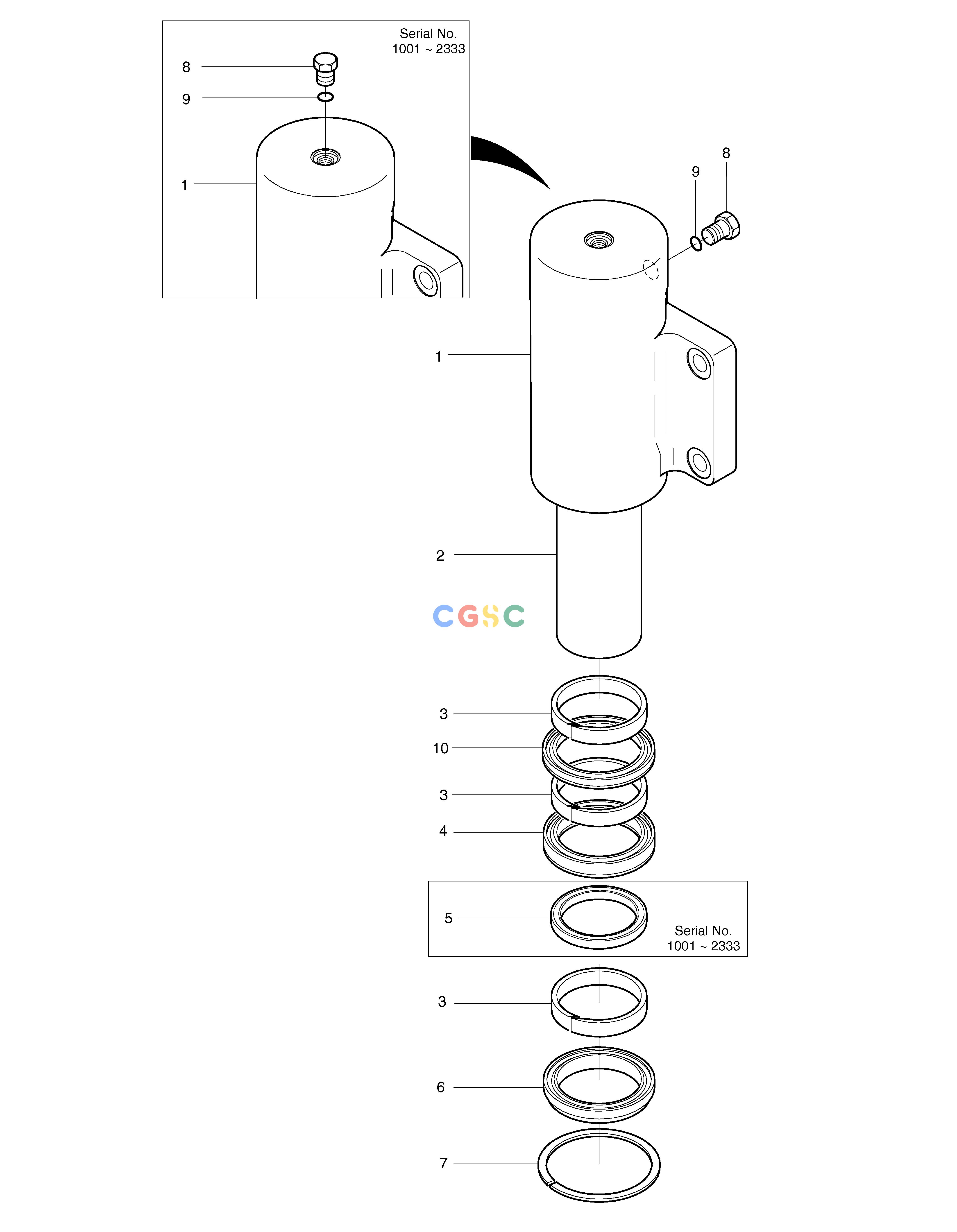

斗山零件查询CHOCKING CYLINDER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9426K
|
[1] |
SEAL KIT
|
|
| -. |
2440-9426B
|
[2] |
CYLINDER;CHOCKING
|
|
| -. |
2440-9426C
|
[2] |
CHOCKING CYLINDER
|
2440-9426E
|
| -. |
2440-9426E
|
[2] |
CHOCKING CYLINDER
|
|
| 1. |
03R216-2
|
[1] |
BODY
|
|
| 10. |
E5500180
|
[1] |
SEAL;BUFFER
|
|
| 2. |
03R217-2
|
[1] |
ROD
|
|
| 3. |
00W215-0
|
[3] |
RING;WEAR
|
|
| 4. |
E5302380
|
[1] |
U-PACKING
|
|
| 5. |
E6501000
|
[1] |
RING;BACK UP
|
|
| 6. |
E6020180
|
[1] |
WIPER;DUST
|
|
| 7. |
00M322-0
|
[1] |
RING;RETAINING
|
|
| 8. |
03R210-0
|
[1] |
PLUG
|
|
| 9. |
E6300441
|
[1] |
O-RING
|
|
