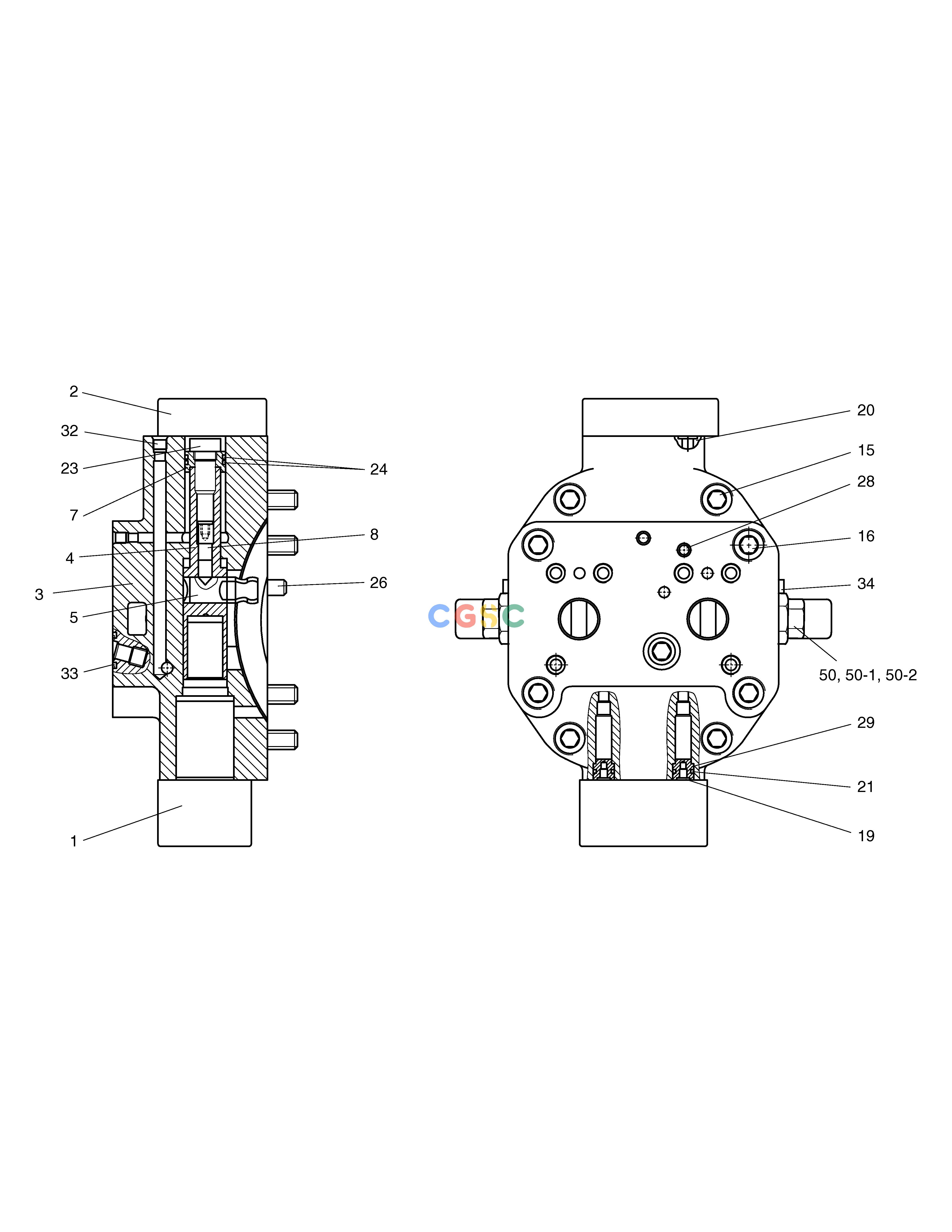

斗山零件查询CONTROL B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
09604037
|
[1] |
CONTROL
|
|
| 1. |
09604034
|
[1] |
PART;CONTROL
|
|
| 15. |
09083097
|
[4] |
SCREW;SOCKET HEAD
|
|
| 16. |
09083104
|
[4] |
SCREW;SOCKET HEAD
|
|
| 19. |
09830726
|
[2] |
O-RING
|
|
| 2. |
09604032
|
[1] |
COVER
|
|
| 20. |
09085577
|
[3] |
O-RING
|
|
| 21. |
09086487
|
[2] |
O-RING
|
|
| 23. |
09083204
|
[1] |
SCREW
|
|
| 24. |
09832143
|
[3] |
RING;SQUAR
|
|
| 26. |
09152600
|
[2] |
PIN;CYLINDER
|
|
| 28. |
09831318
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
| 29. |
09415161
|
[2] |
PLUG
|
|
| 3. |
09921625
|
[1] |
PLATE;PORT
|
|
| 32. |
09831319
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
| 33. |
09087938
|
[1] |
O-RING
|
|
| 34. |
09156651
|
[2] |
SCREW;LOCKING
|
|
| 4. |
09921438
|
[1] |
PISTON;POSITIONING
|
|
| 5. |
09422949
|
[1] |
TRUNNION;POSITIONING
|
|
| 50. |
02600497
|
[2] |
VALVE;RELIEF
|
|
| 50-1. |
09830459
|
[1] |
KIT;SEAL
|
|
| 50-2. |
09157895
|
[1] |
CAP
|
|
| 7. |
09652201
|
[1] |
PISTON
|
|
| 8. |
09444969
|
[1] |
PIN;TRADD
|
|
