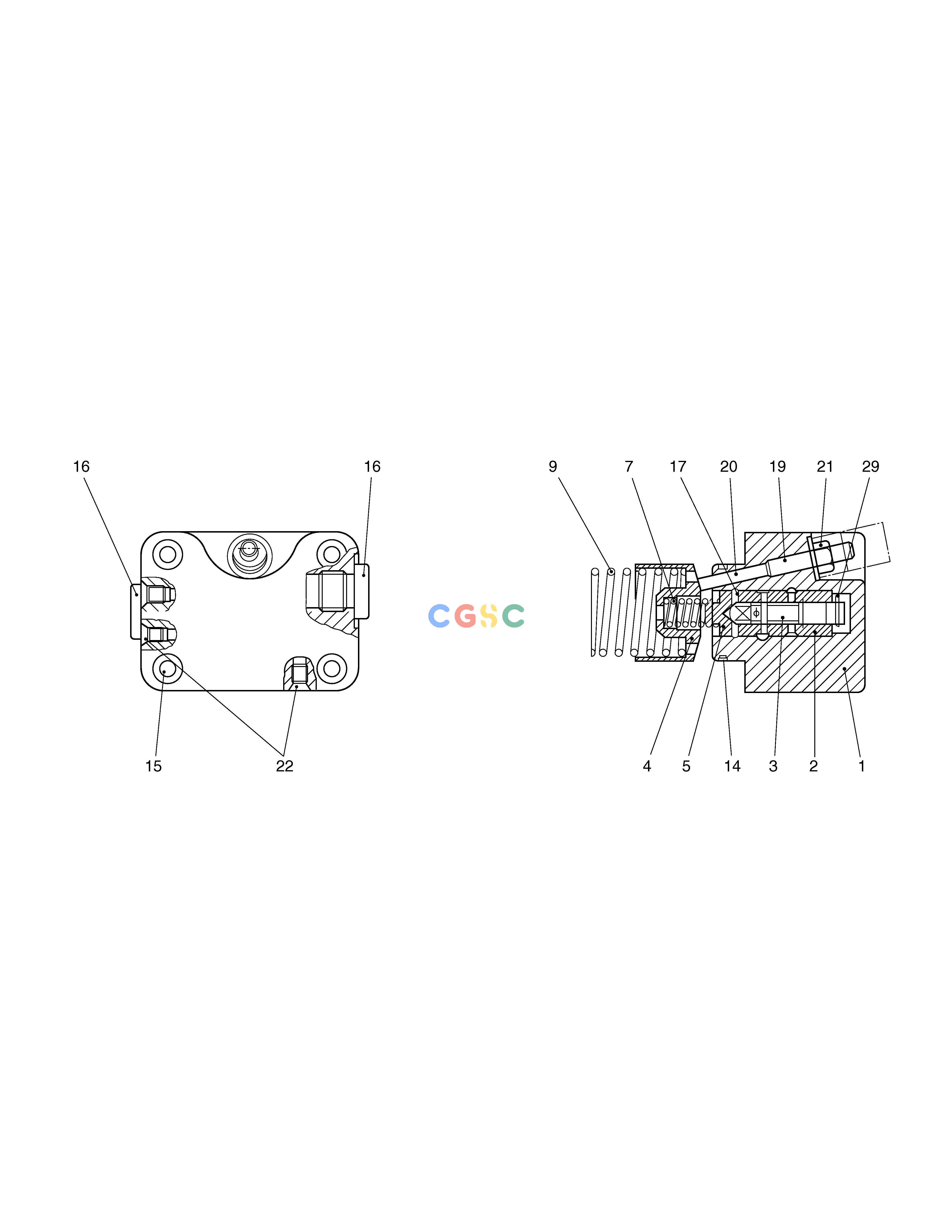

斗山零件查询CONTROL - CONTROL PARTS B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
09604034
|
[1] |
PART;CONTROL
|
|
| 1. |
09412002
|
[1] |
HOUSING;CONTROL
|
|
| 14. |
09157562
|
[1] |
O-RING
|
|
| 15. |
09083026
|
[4] |
SCREW;SOCKET HEAD
|
|
| 16. |
09153930
|
[2] |
SCREW;LOCKING
|
|
| 17. |
09083381
|
[1] |
RING;RETAINING
|
|
| 19. |
09152427
|
[1] |
PIN;THREADED
|
|
| 2. |
09417512
|
[1] |
BUSH;CONTROL
|
|
| 20. |
09087756
|
[1] |
PIN;CYLINDER
|
|
| 21. |
09152425
|
[1] |
NUT;SEAL LOCK
|
|
| 22. |
09831317
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
| 29. |
09085812
|
[1] |
DISC;RETAINING
|
|
| 3. |
09430747
|
[1] |
PISTON;CONTROL
|
|
| 4. |
09651118
|
[1] |
HOUSING;ADJUSTING
|
|
| 5. |
09921339
|
[1] |
COLLAR;SPRING
|
|
| 7. |
09921419
|
[1] |
SPRING;PRESSURE
|
|
| 9. |
09651116
|
[1] |
SPRING;PRESSURE
|
|
