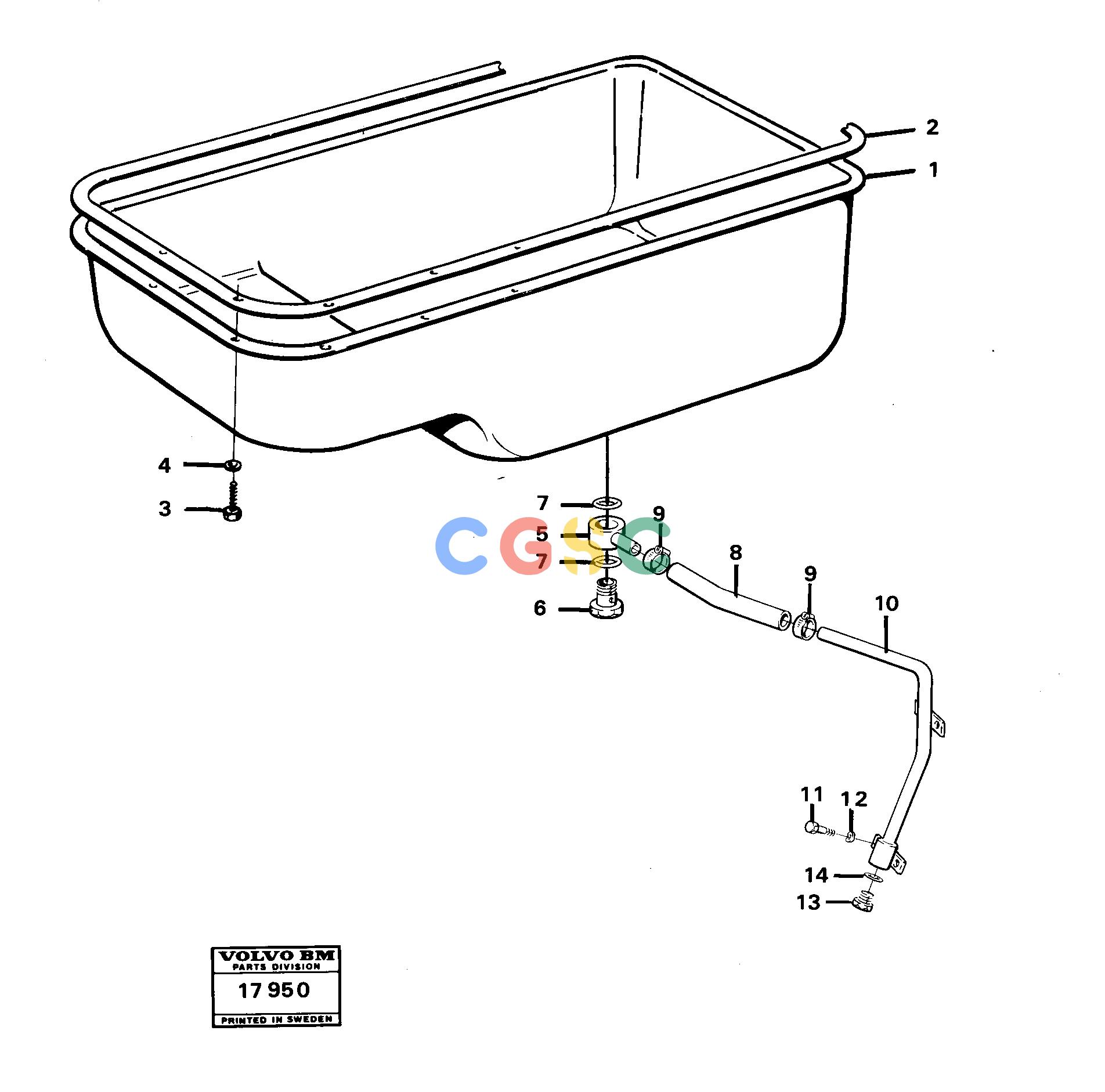

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4761859
|
[0001] |
Oil draining pipe
|
|
| 6. |
VOE4746672
|
[0001] |
Hollow screw
|
|
| 7. |
VOE13955997
|
[0002] |
O-ring
|
|
| 8. |
VOE13961191
|
[REQ] |
Hydraulic hose
|
L=200
|
| 9. |
VOE13943472
|
[0002] |
Hose clamp
|
|
| 1. |
VOE787467
|
[0001] |
Oil pan
|
|
| 10. |
VOE4947096
|
[0001] |
Drain tube
|
|
| 11. |
VOE13955294
|
[0004] |
Screw
|
|
| 12. |
VOE13941907
|
[0004] |
Washer
|
|
| 13. |
VOE926370
|
[0001] |
Plug
|
|
| 14. |
VOE958225
|
[0001] |
O-ring
|
|
| 2. |
VOE11030107
|
[0001] |
Gasket
|
|
| 3. |
VOE940186
|
[0026] |
Hexagon screw
|
|
| 4. |
VOE13941907
|
[0026] |
Washer
|
|
