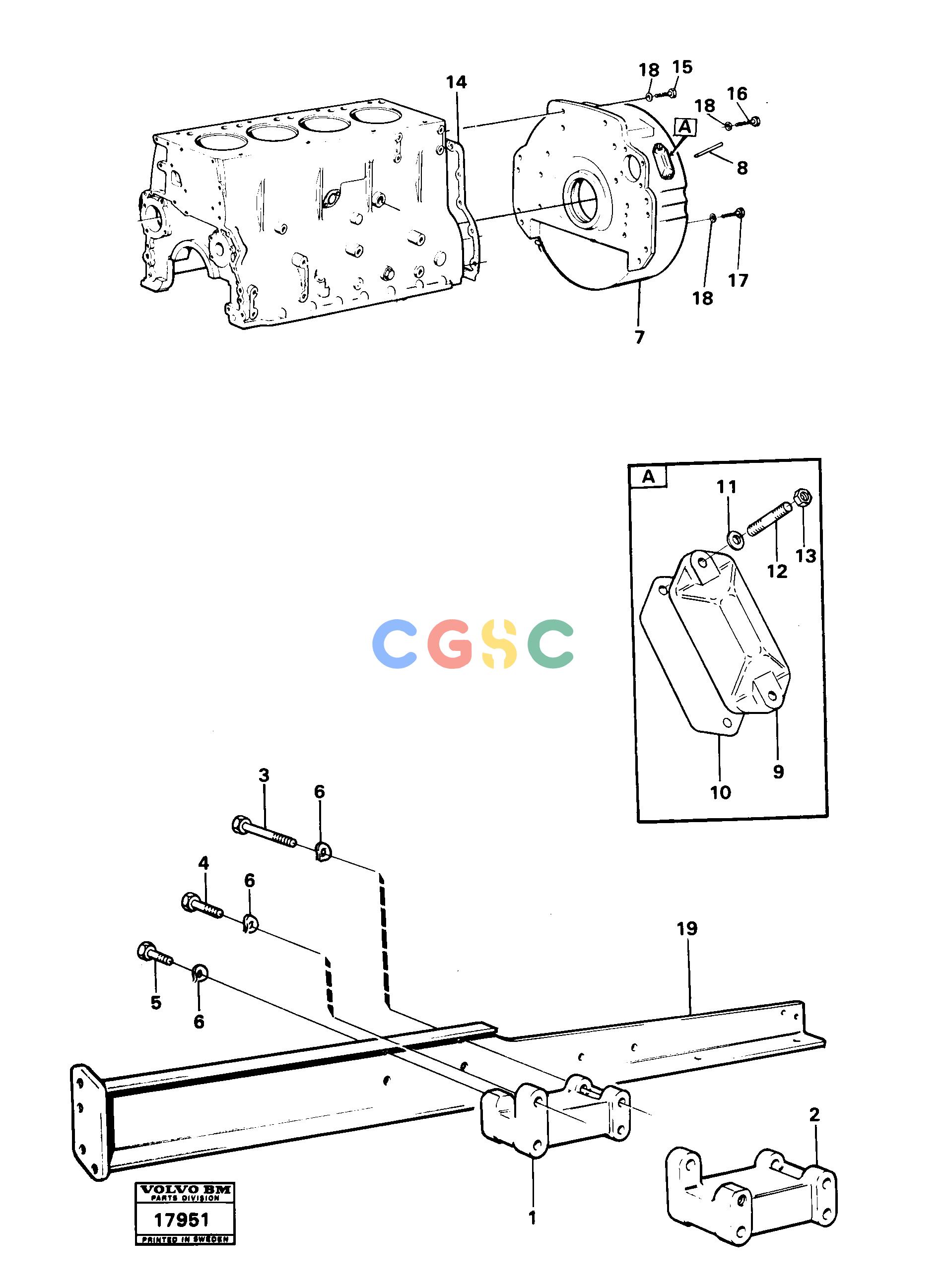

沃尔沃零件查询4300B Engine support and flywheel housing4300B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE955561
|
[0002] |
Hexagon screw
|
|
| 6. |
VOE940280
|
[0010] |
Spring washer
|
|
| 7. |
VOE4804162
|
[0001] |
Flywheel housing
|
|
| 8. |
VOE4804159
|
[0001] |
Setting indicator
|
|
| |
VOE17229696
|
[0001] |
Pipe
|
|
| 1. |
VOE751992
|
[0001] |
Engine anchorage
|
V
|
| |
VOE905654
|
[0002] |
Drive screw
|
|
| 9. |
VOE4772168
|
[0001] |
Cover
|
|
| 10. |
VOE4804167
|
[0001] |
Gasket
|
|
| 11. |
VOE955893
|
[0002] |
Plain washer
|
|
| 12. |
VOE924054
|
[0002] |
Stud
|
|
| 13. |
VOE946035
|
[0002] |
Lock nut
|
|
| 14. |
VOE1161277
|
[0001] |
Sealant
|
|
| 15. |
VOE955578
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE955580
|
[0006] |
Hexagon screw
|
|
| 17. |
VOE955583
|
[0002] |
Hexagon screw
|
|
| 2. |
VOE751991
|
[0001] |
Engine anchorage
|
H
|
| 18. |
VOE941911
|
[0010] |
Spring washer
|
|
| 19. |
|
[0002] |
Frame
|
SEE GROUP 71
|
| 3. |
VOE926004
|
[0006] |
Screw
|
|
| 4. |
VOE955563
|
[0002] |
Hexagon screw
|
|
