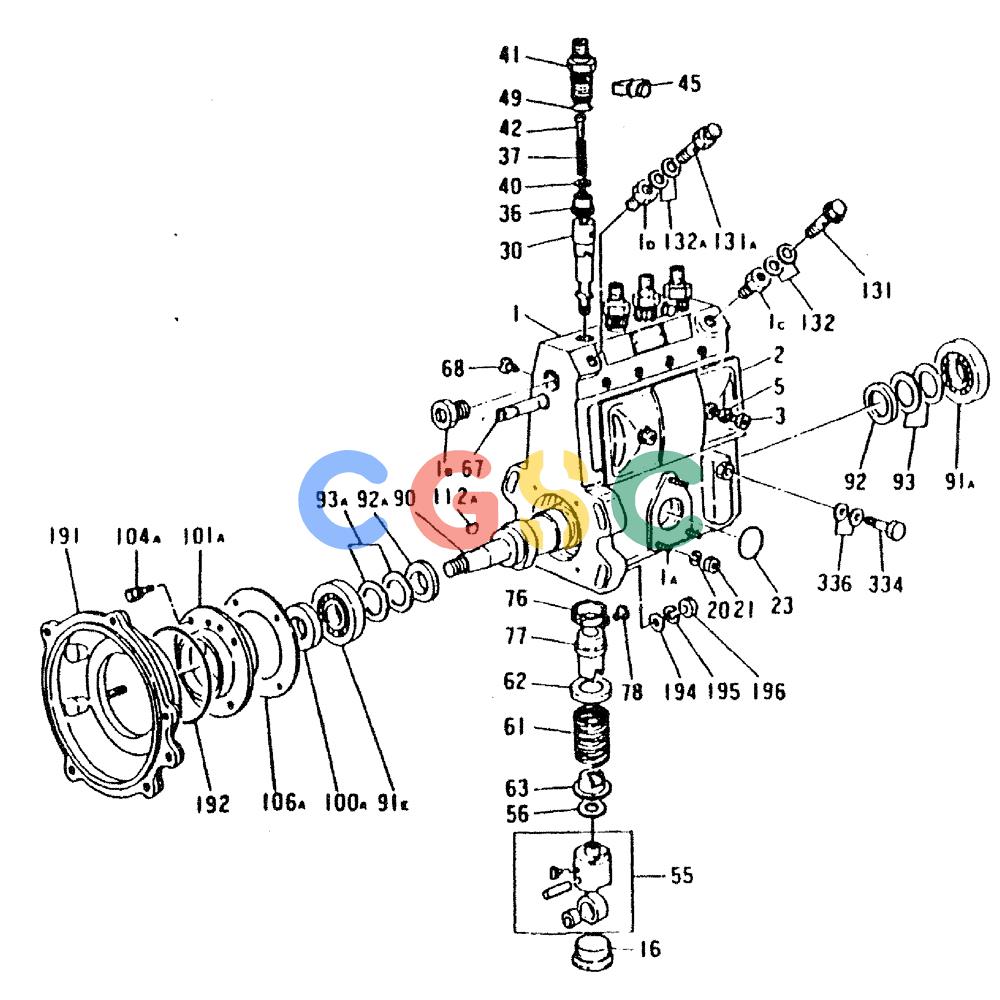

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-002) - INJECTION PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
357 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-336. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY A TYPE |
| 1. | VAME704299 | [1] | HOUSING, PUMP | |
| 1A. | VAME705277 | [3] | STUD | |
| 1B. | VAME704235 | [1] | PLUG | |
| 1C. | VAME704100 | [1] | ADAPTER | |
| 1D. | VAME704003 | [1] | ADAPTER | KOB |
| 2. | VAME704474 | [1] | COVER | |
| 3. | VAME704005 | [2] | SCREW | KOB |
| 5. | VAME705151 | [2] | GASKET | KOB |
| 16. | VAME704223 | [4] | PLUG | KOB |
| 20. | VAME717712 | [3] | SPRING WASHER | KOB |
| 21. | VAME717709 | [3] | NUT | |
| 23. | VAME705152 | [1] | O-RING | KOB |
| 30. | VAME704400 | [4] | PLUNGER ASSY | |
| 36. | VAME704309 | [4] | VALVE, DELIVERY | |
| 37. | VAME704105 | [4] | SPRING | KOBDELIVERY/V |
| 40. | VAME704237 | [4] | GASKET | KOB |
| 41. | VAME704287 | [4] | HOLDER | KOBDELIVERY/V |
| 42. | VAME704288 | [4] | STOP | KOB |
| 45. | VAME704013 | [2] | LOCKING PLATE | KOB |
| 49. | VAME705358 | [4] | O-RING | KOB |
| 55. | VAME704310 | [4] | TAPPET ASSY | |
| 56. | VAME705155 | [1] | SHIM | KOBT=0.30 |
| . . | VAME705156 | [1] | SHIM | KOBT=0.40 |
| . . | VAME705157 | [1] | SHIM | KOBT=0.50 |
| . . | VAME705158 | [1] | SHIM | KOBT=0.60 |
| . . | VAME705159 | [1] | SHIM | KOBT=0.70 |
| . . | VAME705160 | [1] | SHIM | KOBT=0.80 |
| . . | VAME705162 | [1] | SHIM | KOBT=1.00 |
| . . | VAME705163 | [1] | SHIM | KOBT=1.10 |
| . . | VAME705164 | [1] | SHIM | KOBT=1.20 |
| . . | VAME705165 | [1] | SHIM | KOBT=1.30 |
| . . | VAME705166 | [1] | SHIM | KOBT=1.40 |
| . . | VAME705167 | [1] | SHIM | KOBT=0.55 |
| . . | VAME705168 | [1] | SHIM | KOBT=0.65 |
| . . | VAME705169 | [1] | SHIM | KOBT=0.75 |
| . . | VAME705170 | [1] | SHIM | KOBT=0.85 |
| . . | VAME705171 | [1] | SHIM | KOBT=0.95 |
| . . | VAME705172 | [1] | SHIM | KOBT=1.05 |
| . . | VAME705173 | [1] | SHIM | KOBT=1.15 |
| . . | VAME705174 | [1] | SHIM | KOBT=1.25 |
| . . | VAME705175 | [1] | SHIM | KOBT=1.50 |
| . . | VAME705176 | [1] | SHIM | KOBT=1.60 |
| . . | VAME705177 | [1] | SHIM | KOBT=0.20 |
| . . | VAME705178 | [1] | SHIM | KOBT=0.25 |
| . . | VAME705179 | [1] | SHIM | KOBT=0.35 |
| . . | VAME705180 | [1] | SHIM | KOBT=0.45 |
| . . | VAME705181 | [1] | SHIM | KOBT=1.35 |
| . . | VAME705182 | [1] | SHIM | KOBT=1.45 |
| . . | VAME705183 | [1] | SHIM | KOBT=1.55 |
| 61. | VAME704311 | [4] | SPRING, PLUNGER | |
| 62. | VAME704110 | [4] | SEAT | KOBSPG UPPER |
| 63. | VAME704295 | [4] | SEAT | KOBSPG LOWER |
| 67. | VAME704296 | [1] | RACK, CONTROL | |
| 68. | VAME704022 | [1] | SCREW | KOBRACK STOP Superseded by part number: VA1312260300 |
| 76. | VAME704023 | [4] | PINION | KOB |
| 77. | VAME704112 | [4] | SLEEVE | KOBCONTROL |
| 78. | VAME704025 | [4] | SCREW | KOBPINION CLAMP |
| 90. | VAME704312 | [1] | CAMSHAFT | |
| 91A. | VAME705184 | [1] | BEARING | KOB |
| . . | VAME705185 | [1] | BEARING | KOB |
| 91E. | VAME705186 | [1] | BEARING | KOB |
| . . | VAME705187 | [1] | BEARING | KOB |
| 92. | VAME704137 | [1] | RING | KOB |
| 92A. | VAME704307 | [1] | RING | |
| 93. | VAME705189 | [1] | SHIM | KOBT=0.10 |
| . . | VAME705190 | [1] | SHIM | KOBT=0.12 |
| . . | VAME705191 | [1] | SHIM | KOBT=0.14 |
| . . | VAME705192 | [1] | SHIM | KOBT=0.16 |
| . . | VAME705193 | [1] | SHIM | KOBT=0.18 |
| . . | VAME705194 | [1] | SHIM | KOBT=0.50 |
| . . | VAME705195 | [1] | SHIM | KOBT=1.00 |
| . . | VAME705196 | [1] | SHIM | KOBT=0.30 |
| . . | VAME705197 | [1] | SHIM | KOBT=0.70 |
| . . | VAME705198 | [1] | SHIM | KOBT=1.40 |
| 93A. | VAME717978 | [1] | Shim, T=0.10 | |
| . . | VAME717979 | [1] | Shim, T=0.12 | |
| . . | VAME717980 | [1] | Shim, T=0.14 | |
| . . | VAME717981 | [1] | Shim, T=0.16 | |
| . . | VAME717982 | [1] | Shim, T=0.18 | |
| . . | VAME717983 | [1] | Shim, T=0.30 | |
| . . | VAME717984 | [1] | Shim, T=0.50 | |
| . . | VAME717985 | [1] | Shim, T=1.00 | |
| 100A. | VAME705210 | [1] | OIL SEAL | KOB Superseded by part number: VA0296220190 |
| 101A. | VAME704115 | [1] | COVER | KOBBRG |
| 104A. | VAME705211 | [4] | BOLT | KOB |
| 106A. | VAME704116 | [1] | GASKET | KOB |
| 112A. | VAME705214 | [1] | KEY, WOODRUFF | |
| 131. | VAME705216 | [1] | BOLT | KOBEYE |
| 131A. | VAME704032 | [1] | BANJO BOLT | KOBSTD ENGINE INLET VALVE OVER FLOW Superseded by part number: VA1314244620 |
| 132. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 132A. | VA3126106400 | [2] | GASKET | KOB Superseded by part number: VA0293414130 |
| 191. | VAME016071 | [1] | BRACKET | |
| 192. | VAME705219 | [1] | O-RING | KOB Superseded by part number: VA0296375020 |
| 194. | VAME705332 | [4] | WASHER | KOB Superseded by part number: VA0140110140 |
| 15. | VAME705221 | [4] | WASHER, SPG | |
| 196. | VAME717958 | [4] | NUT | |
| 334. | VAME705223 | [1] | BOLT | KOBEYE |
| 336. | VA0375124001 | [2] | GASKET | KOB Superseded by part number: VA0265101340 |
