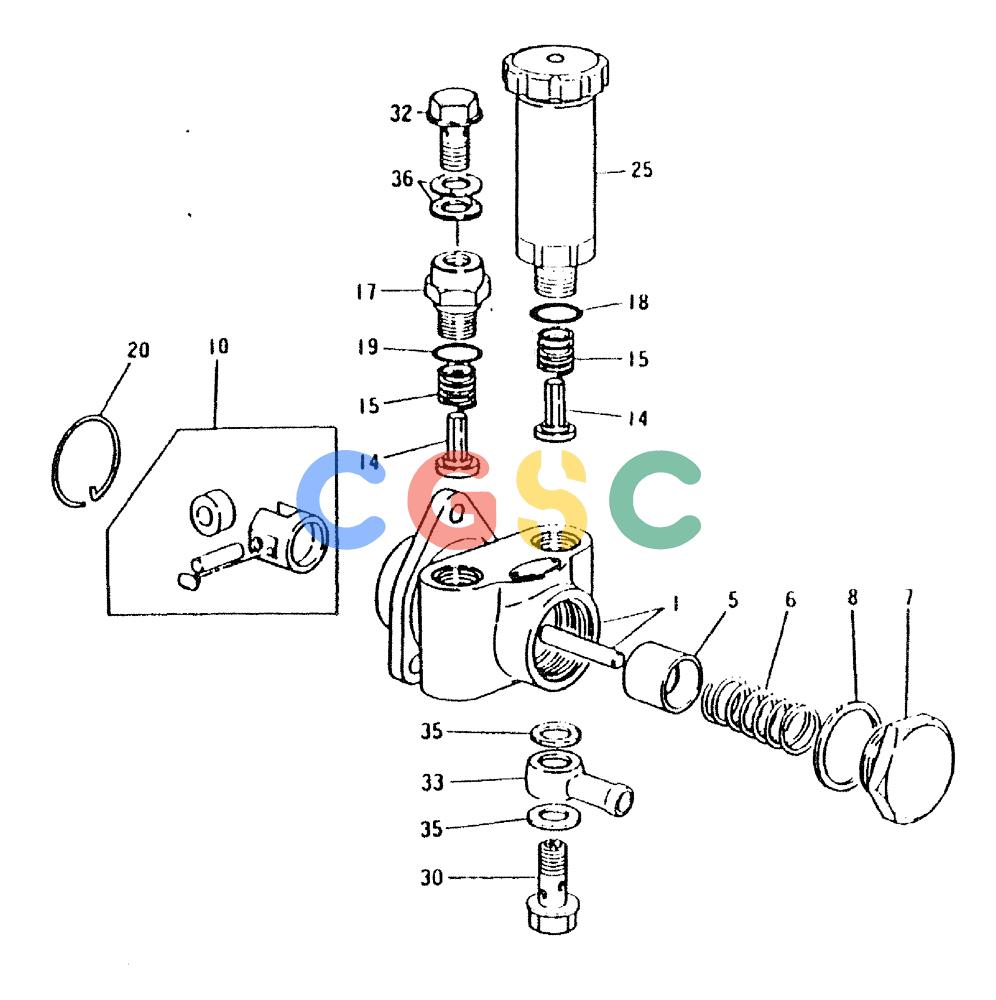

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-003) - FUEL FEED PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-36. | VAME019635 | [1] | FEED PUMP | KOBFUEL FEED PUMP, DKC 1052205189 |
| 1. | VAME717697 | [1] | HOUSING, FEED PUMP, DKC 1520031020 | |
| 5. | VAME705020 | [1] | PISTON | KOBPISTON, DKC 1521001120 Superseded by part number: VA1521001120 |
| 6. | VAME705021 | [1] | SPRING | KOBSPRING, PISTON, DKC 1521020400 |
| 7. | VAME705022 | [1] | PLUG | KOBPLUG, DKC 1521050200 |
| 8. | VAME705275 | [1] | GASKET | KOBGASKET, DKC 0293326030 Superseded by part number: VA0293326030 |
| 10. | VAME705099 | [1] | TAPPET | KOBTAPPET, DKC 1521112620 |
| 14. | VAME705027 | [2] | VALVE | KOBVALVE, DKC 1521150200 Superseded by part number: VA1521150200, 77270043 |
| 15. | VAME705028 | [2] | SPRING | KOBSPRING, CHECK/V, DKC 1521160200 Superseded by part number: 77270044, VA1521160200 |
| 17. | VAME705085 | [1] | ADAPTER | KOBADAPTER, DKC 1521180900 |
| 18. | VAME717733 | [1] | RING | KOBO-RING, DKC 0296316060 Superseded by part number: VA0296316060 |
| 19. | VAME717733 | [1] | RING | KOBO-RING, DKC 02316060 Superseded by part number: VA0296316060 |
| 20. | VAME705030 | [1] | RING | KOBKING, SNAP, DKC 1521210200 |
| 25. | VAME717658 | [1] | PUMP | KOBPUMP, PRIMING, DKC 1522005420 |
| 30. | VAME717651 | [1] | SPOOL | KOBBOLT, EYE, DKC 1523007120 |
| 32. | VAME705216 | [1] | BOLT | KOBBOLT, EYE, DKC 0297314570 |
| 33. | VAME717988 | [1] | EYE | KOBEYE, DKC 1398140600 |
| 35. | VA3126106400 | [2] | GASKET | KOBDKC 0293414130 Superseded by part number: VA0293414130 |
| 36. | VA3126106400 | [2] | GASKET | KOBDKC 0293414130 Superseded by part number: VA0293414130 |
