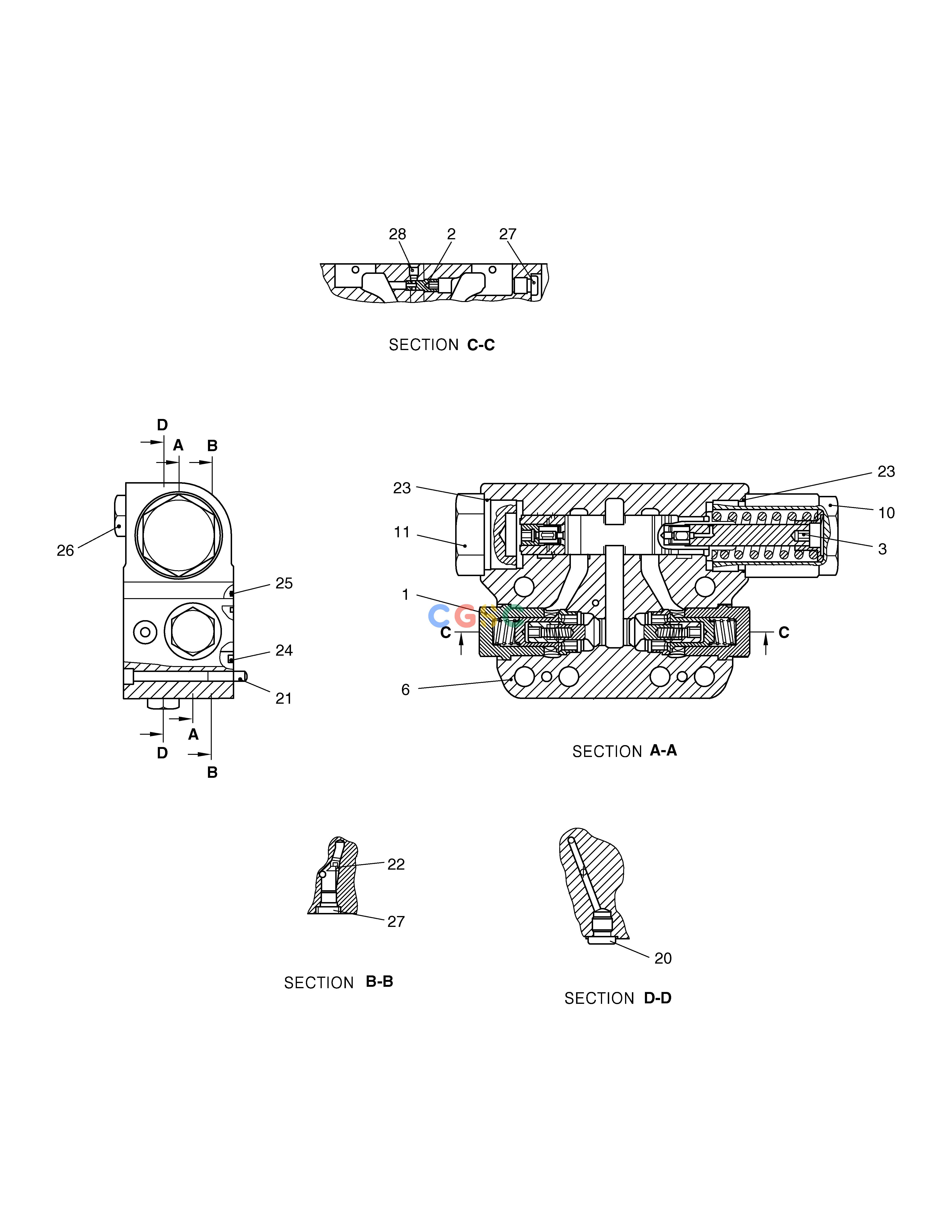

斗山零件查询COUNTER BALANCE VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
02050781
|
[1] |
VALVE;COUNTER BALANCE
|
|
| 1. |
02050703
|
[2] |
VALVE;POPPET
|
|
| 10. |
02044180
|
[1] |
SCREW;LOCKING
|
|
| 11. |
02044181
|
[1] |
SCREW;LOCKING
|
|
| 2. |
02042017
|
[1] |
VALVE;SHUTTLE
|
|
| 20. |
09156650
|
[1] |
SCREW;LOCKING
|
|
| 21. |
09085700
|
[2] |
SCREW;SOCKET HEAD
|
|
| 22. |
09831347
|
[1] |
PLUG
|
|
| 23. |
09152377
|
[2] |
O-RING
|
|
| 24. |
09085578
|
[2] |
O-RING
|
|
| 25. |
02601483
|
[2] |
O-RING
|
|
| 26. |
09156654
|
[1] |
SCREW;LOCKING
|
|
| 27. |
02601874
|
[2] |
BOLT;LOCKING
|
|
| 28. |
09831317
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
| 3. |
02050782
|
[1] |
VALVE;PLUNGER
|
|
| 6. |
02050138
|
[1] |
HOUSING
|
|
