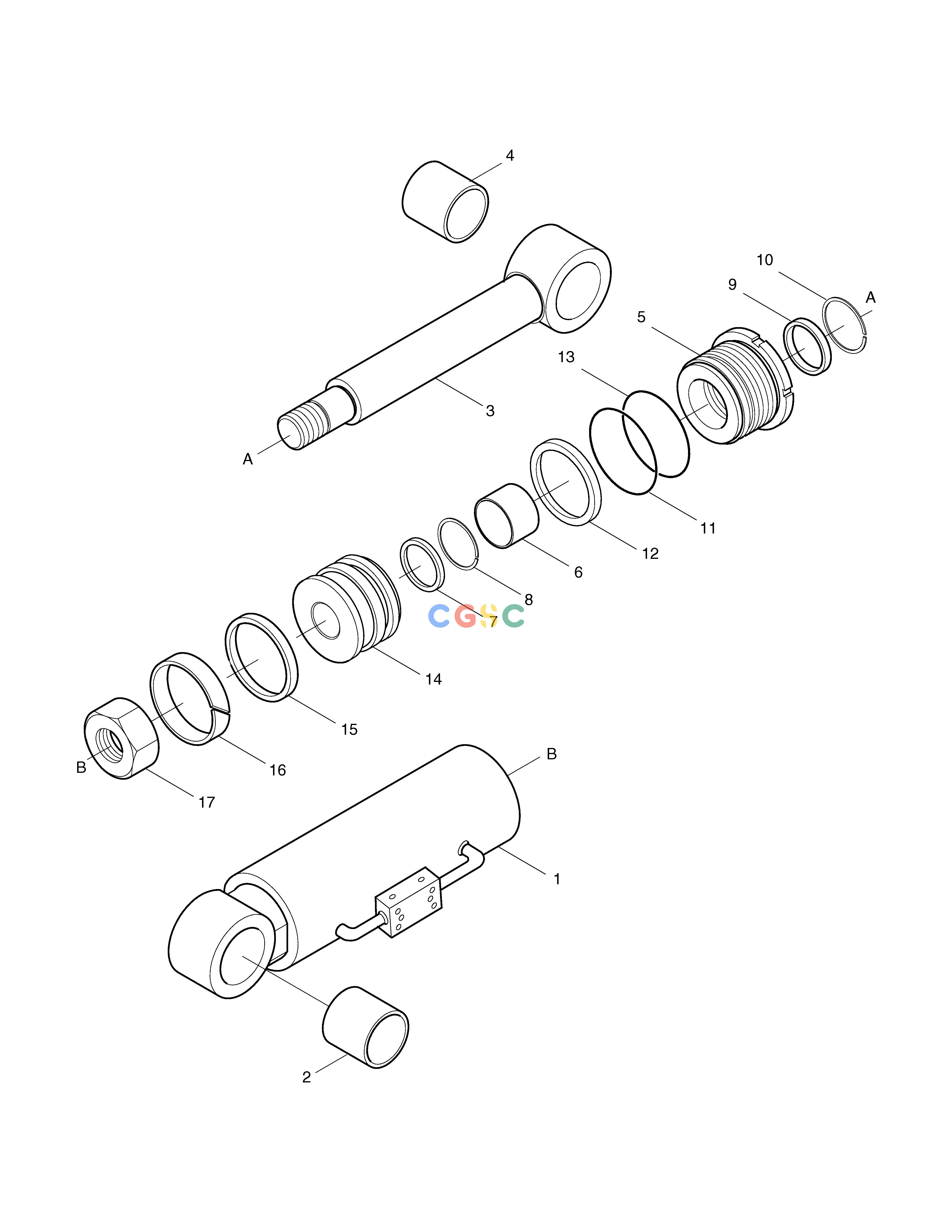

斗山零件查询DOZER CYLINDER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
807 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9304AKT
|
[1] |
SEAL KIT;DOZER CYL
|
|
| -. |
2440-9304B
|
[1] |
CYLINDER;DOZER
|
|
| -. |
2440-9304C
|
[1] |
CYLINDER;DOZER
|
|
| 1. |
53D325-2
|
[1] |
TUBE ASS'Y
|
|
| 10. |
00M322-0
|
[1] |
RING;RETAINING
|
|
| 11. |
E6311561
|
[1] |
O-RING
|
|
| 12. |
E6651570
|
[1] |
RING;BACK UP
|
|
| 13. |
E6311581
|
[1] |
O-RING
|
|
| 14. |
80D449-0
|
[1] |
PISTON
|
|
| 15. |
E5130240
|
[1] |
SEAL;SLIPPER
|
|
| 16. |
00W258-0
|
[1] |
RING;WEAR
|
|
| 17. |
00H245-0
|
[1] |
NUT;HEX
|
|
| 2. |
53D261-0
|
[1] |
BUSH;STEEL
|
|
| 3. |
53D328-0
|
[1] |
ROD ASS'Y
|
|
| 4. |
53D261-0
|
[1] |
BUSH;STEEL
|
|
| 5. |
80D450-0
|
[1] |
COVER;ROD
|
|
| 6. |
E8410160
|
[1] |
BUSH;DU
|
|
| 7. |
E5302350
|
[1] |
PACKING;U
|
|
| 8. |
E6990066
|
[1] |
RING;BACK UP
|
|
| 9. |
E6020180
|
[1] |
WIPER;DUST
|
|
