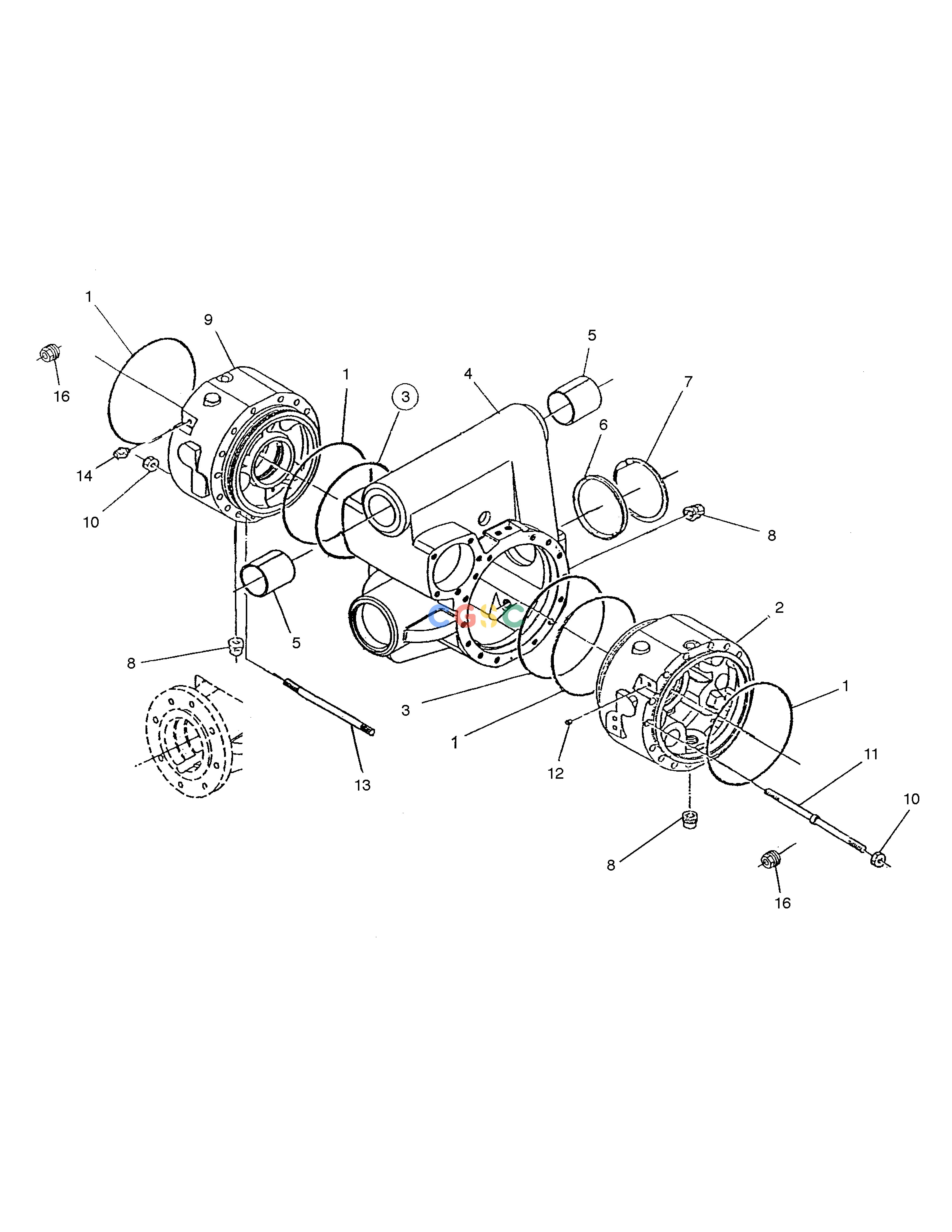

斗山零件查询FRONT AXLE(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
171.07.053.01
|
[2] |
O-RING
|
|
| 10. |
006.01.1556
|
[32] |
NUT
|
|
| 11. |
278.06.011.01
|
[4] |
STUD
|
|
| 12. |
016.14.1138
|
[1] |
PLUG
|
|
| 13. |
278.06.012.01
|
[28] |
STUD
|
|
| 14. |
702.01.003.01
|
[1] |
VENT
|
|
| 16. |
808.01.017.01
|
[2] |
PLUG
|
|
| 2. |
171.01.003.18
|
[1] |
COVER;INTERMEDIATE
|
|
| 3. |
171.07.053.02
|
[2] |
O-RING
|
|
| 4. |
278.01.002.01
|
[1] |
HOUSING
|
|
| 5. |
278.01.003.01
|
[2] |
BUSHING;THRUST
|
|
| 6. |
171.01.015.01
|
[1] |
PLUG
|
|
| 7. |
002.02.0088
|
[1] |
CIRCLIP
|
|
| 8. |
819.01.610.01
|
[3] |
PLUG;MAGNET
|
|
| 9. |
171.01.002.18
|
[1] |
COVER;INTERMEDIATE
|
|
