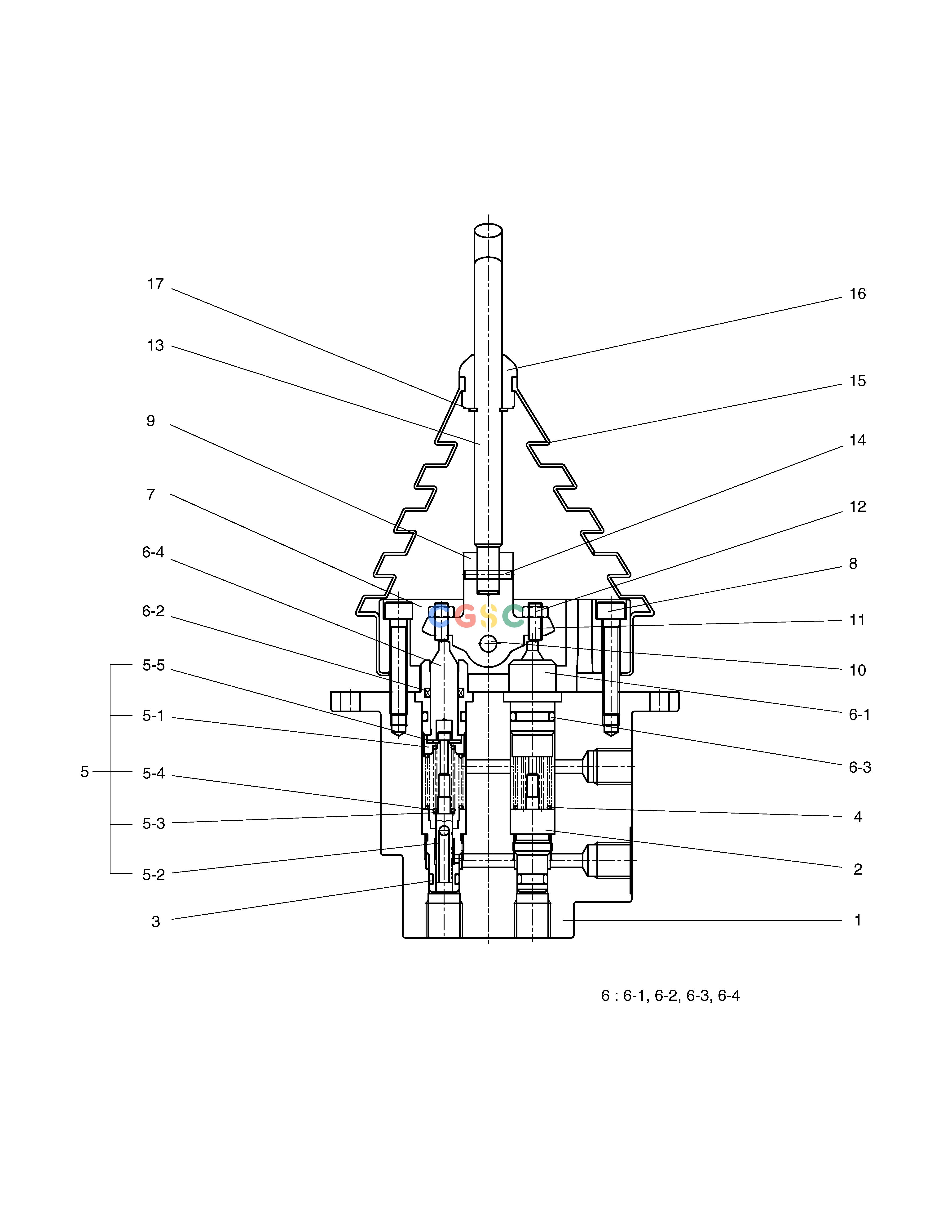

斗山零件查询DOZER REMOCON VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00404
|
[1] |
VALVE;REMOCON(DOZER)
|
420-00404A
|
| -. |
420-00404A
|
[1] |
VALVE;REMOCON(DOZER)
|
|
| 1. |
NA00102
|
[1] |
|
|
| 1. |
NA00102
|
[1] |
|
|
| 10. |
1.123-00022
|
[1] |
PIN
|
|
| 11. |
1.120-00010
|
[2] |
BOLT
|
|
| 12. |
S4014233
|
[2] |
NUT
|
|
| 13. |
1.357-00003
|
[1] |
LEVER
|
|
| 14. |
S5740530
|
[1] |
PIN;SPRING
|
|
| 15. |
1.160-00006
|
[1] |
BOOT
|
|
| 16. |
1.110-00170
|
[1] |
BUSHING
|
|
| 17. |
1.115-00093
|
[1] |
RING;SNAP
|
|
| 2. |
1.181-00055
|
[2] |
PLUG
|
|
| 3. |
S8000081
|
[2] |
O-RING
|
|
| 4. |
K9000457
|
[2] |
SPRING
|
|
| 5. |
K9000348
|
[1] |
SPOOL KIT
|
|
| 5-1. |
NA01111
|
[2] |
. SEAT;SPRING
|
|
| 5-2. |
NA01161
|
[2] |
. SPOOL
|
|
| 5-3. |
NA01111
|
[2] |
. SEAT;SPRING
|
|
| 5-4. |
NA01182
|
[2] |
. SPRING
|
|
| 5-5. |
NA01233
|
[2] |
. STOPPER
|
|
| 6. |
K9000349
|
[1] |
PLUG KIT
|
|
| 6-1. |
NA00843
|
[2] |
PLUG
|
|
| 6-2. |
NA01097
|
[2] |
. SEAL;ROD
|
|
| 6-3. |
NA00643
|
[2] |
. O-RING
|
|
| 6-4. |
NA01013
|
[2] |
ROD;PUSH
|
|
| 7. |
1.430-00025
|
[1] |
COVER
|
|
| 8. |
S2205361
|
[2] |
BOLT
|
|
| 9. |
1.429-00003
|
[1] |
GUIDE
|
|
