神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-007) - FUEL FILTER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
595 次

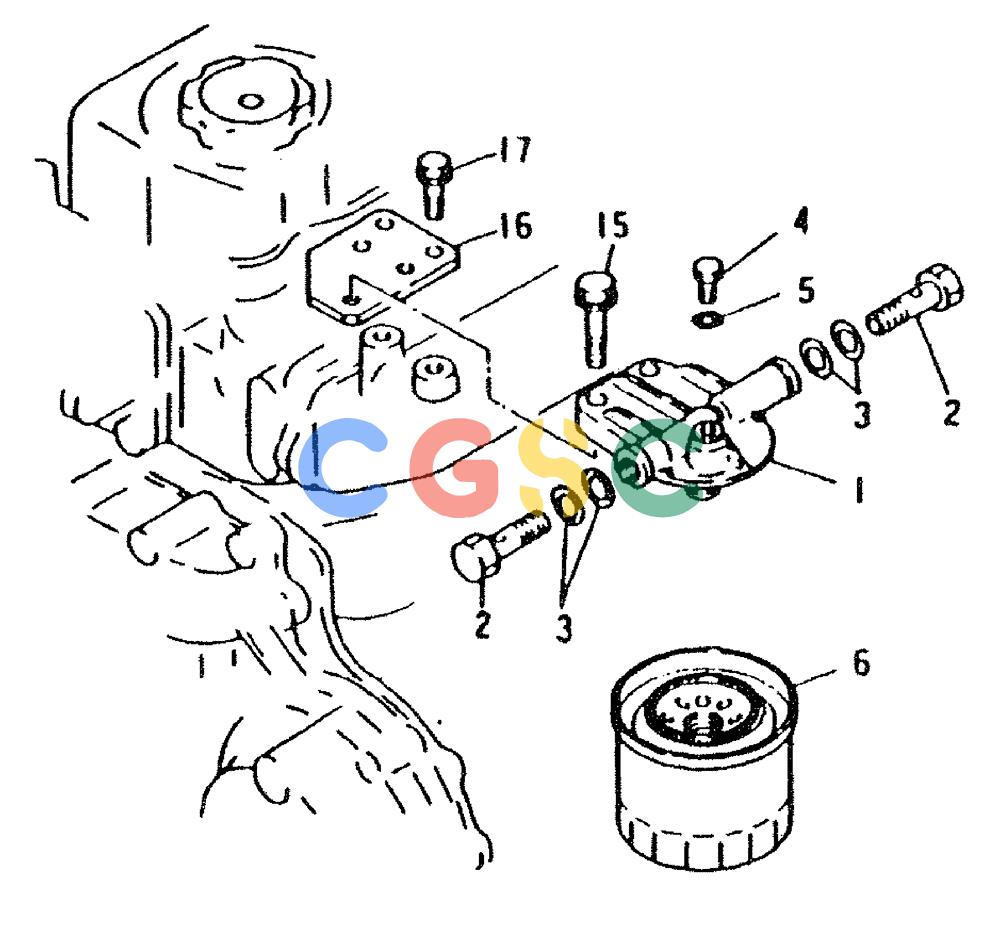

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME006064 | [1] | FILTER ASSY | KOBFUEL FILTER ASSY Superseded by part number: VAME229356 |
| 1. | VAME006065 | [1] | FILLER | KOBHEAD, FUEL FILTER |
| 2. | VAMH037087 | [2] | BOLT | KOBBOLT, CONNECTOR |
| 3. | VAMH035166 | [4] | GASKET | KOBGASKET 14 Superseded by part number: 133378A1 |
| 4. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG, AIR Superseded by part number: 77270641, VAME016894 |
| 5. | VAMH035164 | [1] | GASKET | KOBGASKET 8 Superseded by part number: 133379A1 |
| 6. | VAME016823 | [1] | ELEMENT | KOBELEMENT, FUEL FILTER Superseded by part number: 2451R124-2A |
| 15. | VAMF140260 | [2] | BOLT | KOBBOLT, FLANGE 10 X 25 |
| 16. | VA3166281101 | [1] | BRACKET | KOBBRACKET, FUEL FILTER |
| 17. | VAMH000726 | [2] | BOLT | KOBBOLT, FLANGE 10 X 22 |
