神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (03-006) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
216 次

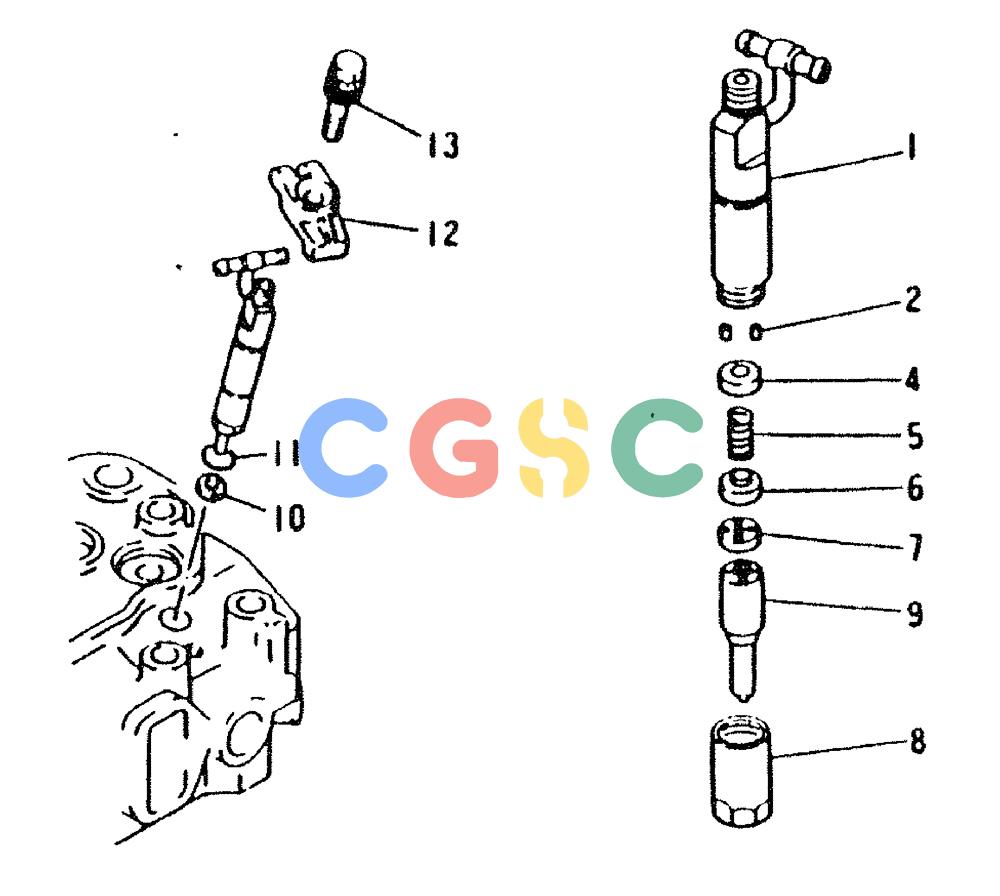

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME080082 | [4] | NOZZLE | KOBNOZZLE ASSY 180KG/CM2, DKC 1051184270 |
| 1-8. | VAME722459 | [4] | NOZZLE HOLDER | KOBNOZZLE HOLDER ASSY, DKC 1050483130 Superseded by part number: VAME731729 |
| 1. | NSS | [4] | NOT SOLD SEPARAT | CONBODY, NOZZLE HOLDER |
| 2. | VAME705419 | [8] | PIN | KOBPIN, DKC 1505085900 |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON0.05MM INTERVAL |
| 4. | VAME722370 | [1] | SHIM | KOBSHIM T=0.500, DKC 1505310000 Superseded by part number: VA1505385700, 77270173 |
| . . | VAME722371 | [1] | SHIM | KOBT=0.525, DKC1505310100 Superseded by part number: VA1505915200 |
| . . | VAME722372 | [1] | SHIM | KOBT=0.550, DKC 1505310200 Superseded by part number: VAME741426 |
| . . | VAME722373 | [1] | SHIM | KOBT=0.575, DKC 1505310300 |
| . . | VAME722374 | [1] | SHIM | KOBT=0.600, DKC 1505310400 Superseded by part number: VA1505916000 |
| . . | VAME722406 | [1] | SHIM | KOBT=1.400, DKC 1505313600 |
| . . | VAME722407 | [1] | SHIM | KOBT=1.425, DKC 1505313700 |
| . . | VAME722408 | [1] | SHIM | KOBT=1.450, DKC 1505313800 |
| . . | VAME722409 | [1] | SHIM | KOBT=1.475, DKC 1505313900 |
| . . | VAME722410 | [1] | SHIM | KOBT=1.500, DKC 1505314000 Superseded by part number: VA1505925000 |
| 5. | VAME705421 | [4] | SPRING | KOBSPRING, NOZZLE, DKC 1505624300 |
| 6. | VAME705420 | [4] | SEAT | KOBSEAT, SPG, DKC 1505159900 |
| 7. | VAME705422 | [4] | SPACER | KOBSPACER, DKC 1505244200 |
| 8. | VAME705423 | [4] | NUT | KOBNUT, RETAINING, DKC 1506550000 |
| 9. | VAME017842 | [4] | NOZZLE | KOBTIP, NOZZLE 5-0.3, DKC 1050170100 |
| 10. | VAME016564 | [4] | GASKET | KOBGASKET, NOZZLE |
| 11. | VAMF520010 | [4] | O-RING | KOBO-RING 15 Superseded by part number: 132546A1 |
| 12. | VAME016543 | [4] | BRIDGE | KOBNOZZLE, NO 0934005030 |
| 13. | VAMH000816 | [4] | BOLT | KOBBOLT, BRIDGE 10 X 52 |
