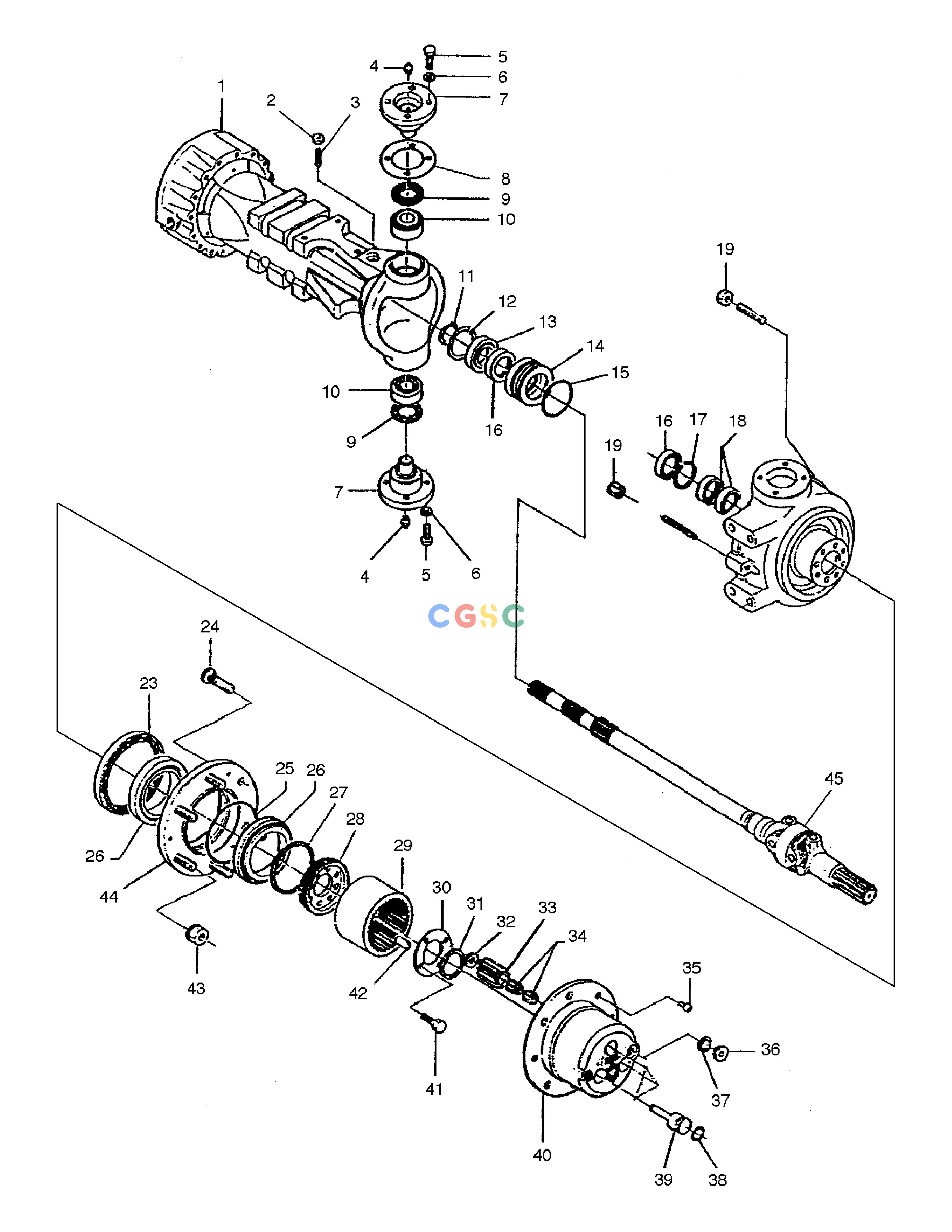

斗山零件查询FRONT AXLE(3) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
278.06.008.05
|
[2] |
CASE;AXLE
|
|
| 10. |
005.09.1553
|
[4] |
BEARING
|
|
| 11. |
002.01.0074
|
[2] |
CIRCLIP
|
|
| 12. |
002.02.1211
|
[2] |
RING;SYNCRONIZER
|
|
| 13. |
005.01.0116
|
[2] |
BEARING
|
|
| 14. |
278.06.004.01
|
[2] |
BUSHING;REDUCTION
|
|
| 15. |
001.05.1239
|
[2] |
O-RING
|
|
| 16. |
275.06.007.01
|
[4] |
SEAL
|
|
| 17. |
002.06.1552
|
[2] |
RING
|
|
| 18. |
005.23.2599
|
[4] |
BEARING;NEEDLE
|
|
| 19. |
006.05.0202
|
[4] |
NUT
|
|
| 2. |
006.03.0196
|
[2] |
NUT
|
|
| 23. |
275.06.008.01
|
[2] |
SEAL
|
|
| 24. |
819.06.006.06
|
[12] |
STUD;WHEEL
|
|
| 25. |
001.05.1350
|
[2] |
RING
|
|
| 26. |
005.10.1380
|
[4] |
BEARING
|
|
| 27. |
002.06.1362
|
[2] |
RING
|
|
| 28. |
171.06.004.01
|
[2] |
SUPPORT;RING GEAR
|
|
| 29. |
171.06.005.02
|
[2] |
GEAR;RING
|
|
| 3. |
016.13.1267
|
[2] |
BOLT;GRUB
|
|
| 30. |
171.06.015.01
|
[2] |
PLATE;LOCKING
|
|
| 31. |
002.02.1363
|
[2] |
RING
|
|
| 32. |
171.06.011.02
|
[6] |
SPACER
|
|
| 33. |
171.06.007.01
|
[6] |
GEAR;PLANET
|
|
| 34. |
005.13.1365
|
[12] |
BEARING;NEEDLE
|
|
| 35. |
016.05.1026
|
[6] |
BOLT;CYLINDER
|
|
| 36. |
728.06.011.01
|
[2] |
PLUG
|
|
| 37. |
011.07.0704
|
[2] |
WASHER;SEAL
|
|
| 38. |
001.05.1152
|
[6] |
O-RING
|
|
| 39. |
171.06.009.01
|
[6] |
PIN
|
|
| 4. |
008.01.0213
|
[4] |
FITTING;GREASE
|
|
| 40. |
171.06.003.01
|
[2] |
CARRIER;PLANET GEAR
|
|
| 41. |
016.02.1374
|
[8] |
BOLT;HEX.
|
|
| 42. |
014.02.0913
|
[8] |
DOWEL
|
|
| 43. |
006.11.1319
|
[12] |
NUT
|
|
| 44. |
271.06.002.01
|
[2] |
HUB;WHEEL
|
|
| 45. |
278.06.611.03
|
[2] |
JOINT
|
|
| 5. |
016.01.0759
|
[16] |
BOLT;HEX.
|
|
| 6. |
011.04.0758
|
[16] |
WASHER;SPRING
|
|
| 7. |
278.06.003.01
|
[4] |
PIN;PIVOT
|
|
| 8. |
278.06.010.01
|
[2] |
SHIM
|
|
| 8. |
278.06.010.02
|
[2] |
SHIM
|
|
| 8. |
278.06.010.03
|
[2] |
SHIM
|
|
| 9. |
278.06.009.01
|
[4] |
SEAL
|
|
